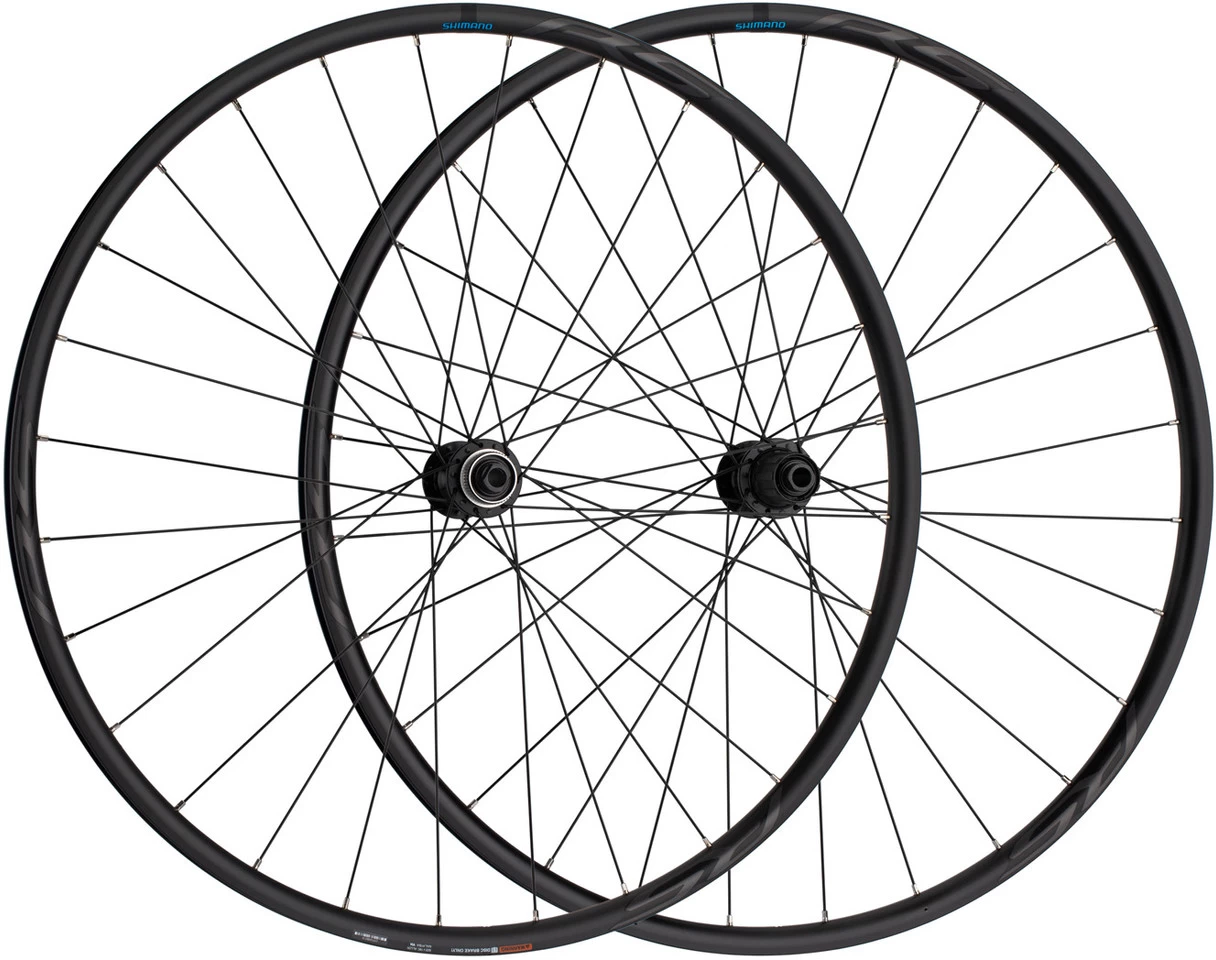

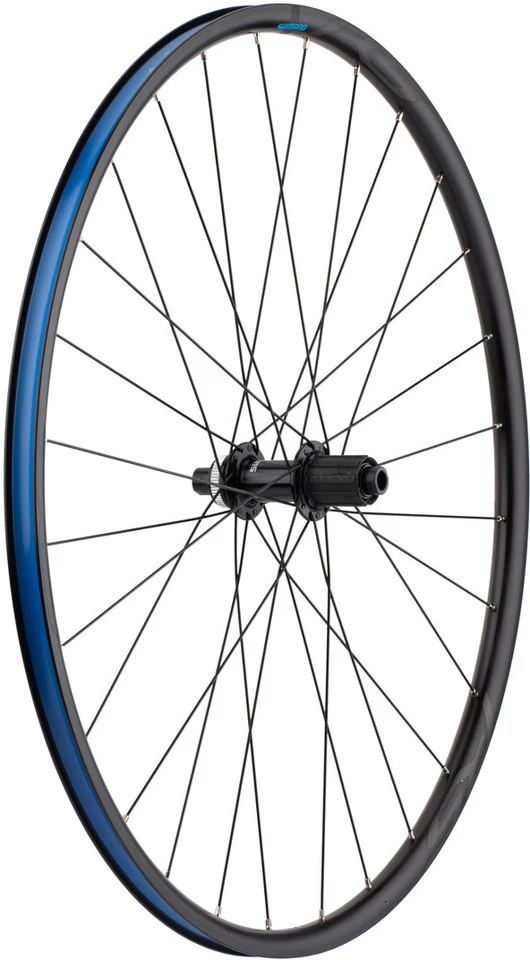

Shimano WH-RS171-CL 28″ Wheelset – Wider and lighter
The Shimano WH-RS171-CL 700C wheelset has a wider rim than its predecessor WH-RS170, but is a few grams lighter. The inner dimension is now 19 mm, which makes the wheels also suitable for off-road use. Of course, the proven Shimano quality technologies have been retained.

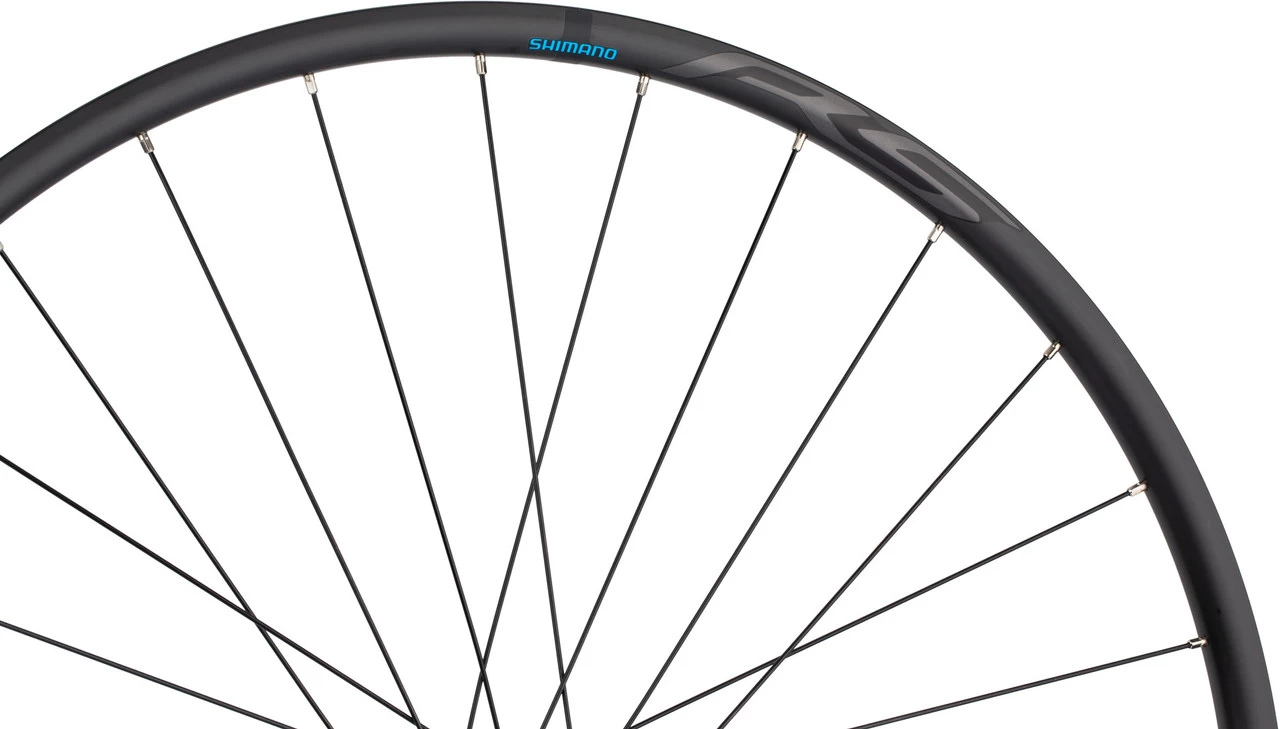

Specifications:Application:Road, Gravel, CyclocrossWheel Size:28″Tyre Type:clincher tyreNumber of Spokes:28Brake Type:Center Lock DiscTubeless System:noneTechnical Information – Rim:Rim Flange:with hookDimensions (ETRTO):19-622Inner Width:19 mmOuter Width:24.6 mmDepth:19 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:aluminiumTechnical Information – Front Hub:Over Locknut Dimension:12 x 100 mm thru-axleBearings:cup & coneBody Material:aluminiumTechnical Information – Rear Hub:Over Locknut Dimension:12 x 142 mm thru-axleBearings:cup & coneBody Material:aluminiumFreehub Body Material:steelFreehub Body:pawlsTechnical Information – Lacing:Front Lacing Pattern:2-crossRear Lacing Pattern:2-crossSpoke Type:J-bend / roundSpoke Size:290 mm (front), 290 mm/288 mm (rear l/r)Spoke Material:stainless steelNipple Size:2 mm (diameter)Nipple Material:brassApproved For:Recommended Tyre Width:28-622 – 42-622Features:19c rim profile for better performance with wider tyresover 100 g lighter than predecessor WH-RS170stiff 12 mm axle system front and rearproven Shimano quality and technologiessleeved rim jointCBN precision machined bearings, polished, with contact sealfreehub body has contact sealgrease retention functionanodised and painted rim, anodised hub bodyaluminium hub axlesuse rim tape (included)Technology:Cup and Cone Bearings

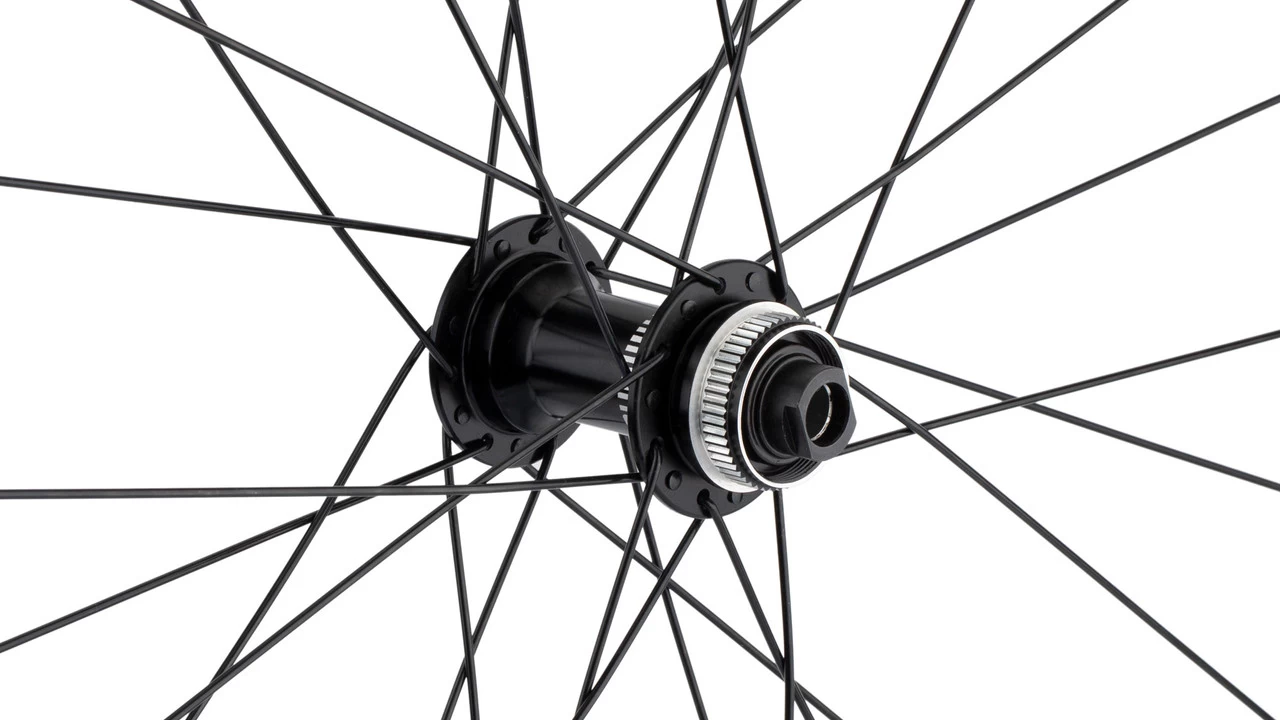

Angular contact ball bearings of the cup & cone type are superior to sealed cartridge bearings in terms of load carrying capacity, as they distribute lateral and vertical forces better, and thus run particularly smoothly and last a long time. They are also easier to adjust, maintain and replace.
E-Thru
E-Thru is a tool-free thru-axle system from Shimano that optimises the stiffness-to-weight ratio and ensures easy handling via its reliable internal cam mechanism. It is characterised by a high torsion resistance and thus also supports cornering at high speed. E-Thru thru-axle hubs and thru-axles are available in the corresponding over locknut dimensions for front and rear.
Colour Info:black:
Rim: blackHubs: blackSpokes: blackNipples: silverModels:28″ set (front 12×100 + rear 12×142) Shimano:

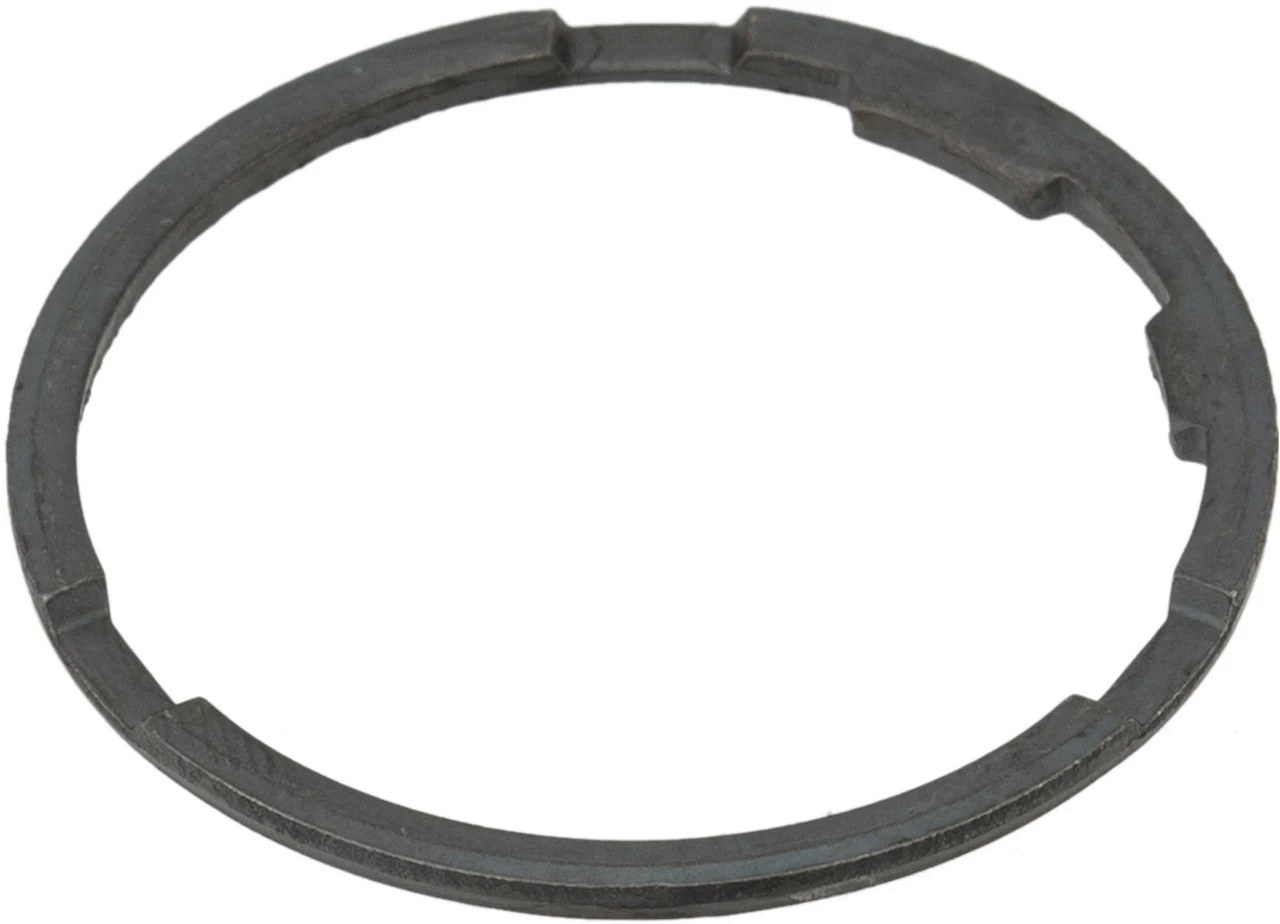

Freehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.Manufacturer Number:E-WHRS171FED70B + E-WHRS171RED70BContents:1 x Shimano WH-RS171-CL-700C wheelset (front & rear)2 x rolls of rim tape
