Shimano WH-RS500-TL Wheelset

The WH-RS500-TL wheelset by Shimano – Tubeless model for rim brakes
The Shimano WH-RS500-TL wheelset has rim brake-compatible aluminium rims that can be ridden tubeless thanks to the UST profile. It impresses with high stiffness values, efficient acceleration and a not too high weight. Sealed and greased cup-and-cone bearings are used in the aluminium hubs, which are characterised by durability and particularly easy adjustment. Double-butted stainless steel spokes provide more streamlining.
Specifications:Application:RoadWheel Size:28″Tyre Type:clincher tyreNumber of Spokes:16 (front), 20 (rear)Brake Type:rim brakeTubeless System:TL/USTTechnical Information – Rim:Type:offset (rear)Rim Flange:with hookDimensions (ETRTO):15-622Inner Width:15 mmOuter Width:20.8 mmDepth:24 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:aluminiumTechnical Information – Front Hub:Over Locknut Dimension:9 x 100 mm quick releaseBearings:cup & coneBody Material:aluminiumTechnical Information – Rear Hub:Over Locknut Dimension:10 x 130 mm quick releaseBearings:cup & coneBody Material:aluminiumFreehub Body Material:steelTechnical Information – Lacing:Front Lacing Pattern:radialRear Lacing Pattern:2-crossSpoke Type:bladed / double buttedSpoke Size:284 mm (front), 305 mm/303 mm (rear l/r)Spoke Material:stainless steelNipple Material:aluminiumApproved For:Recommended Tyre Width:23 – 32 mmFeatures:efficient acceleration, high stiffnesslight and durableeasy handling and maintenancewelded rim jointrear offset rimCBN precision machined, polished bearings with contact sealsaluminium hub axles (length 108 mm front, 141 mm rear, diameter 14 mm)anodised rims and hub bodiesquick release lever made of aluminium (quick release length 133 mm front, 163 mm rear)internal grease sleevedigitally adjustable hubsModels:28″ set (front 9×100 + rear 10×130) Shimano:

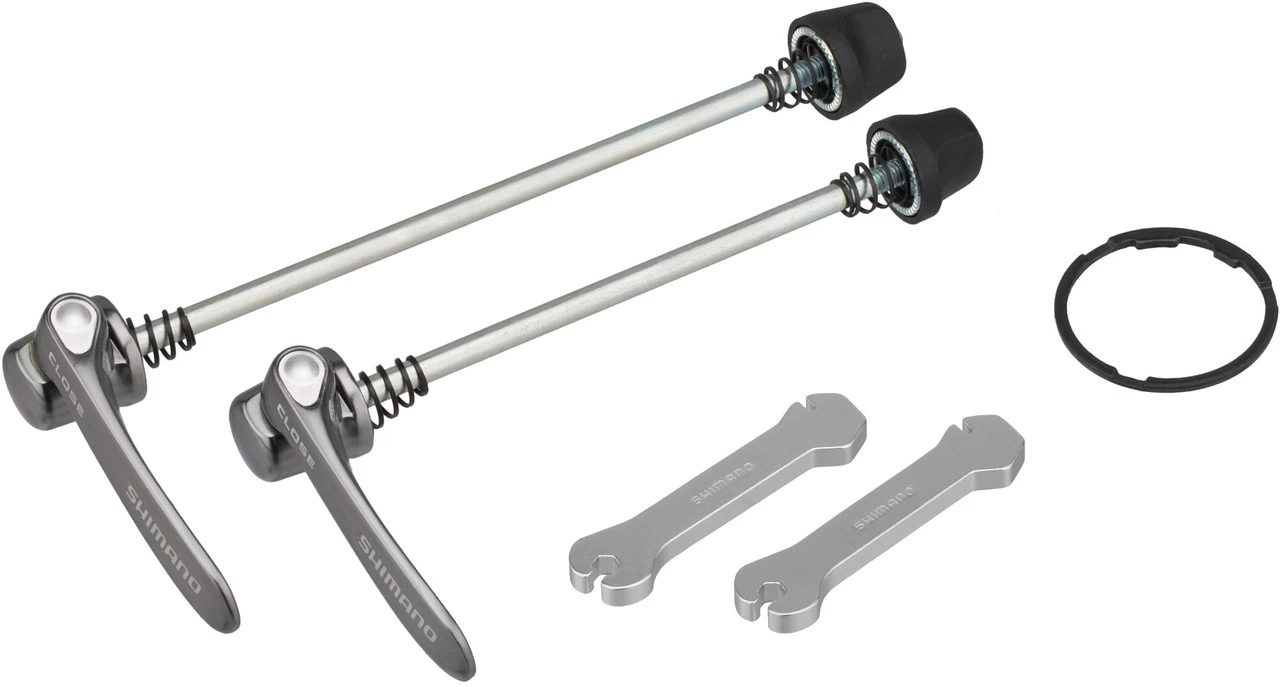

Freehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.Manufacturer Number:E-WHRS500FRLContents:1 x Shimano WH-RS500-TL wheelset (front & rear)2 x Shimano quick releases
