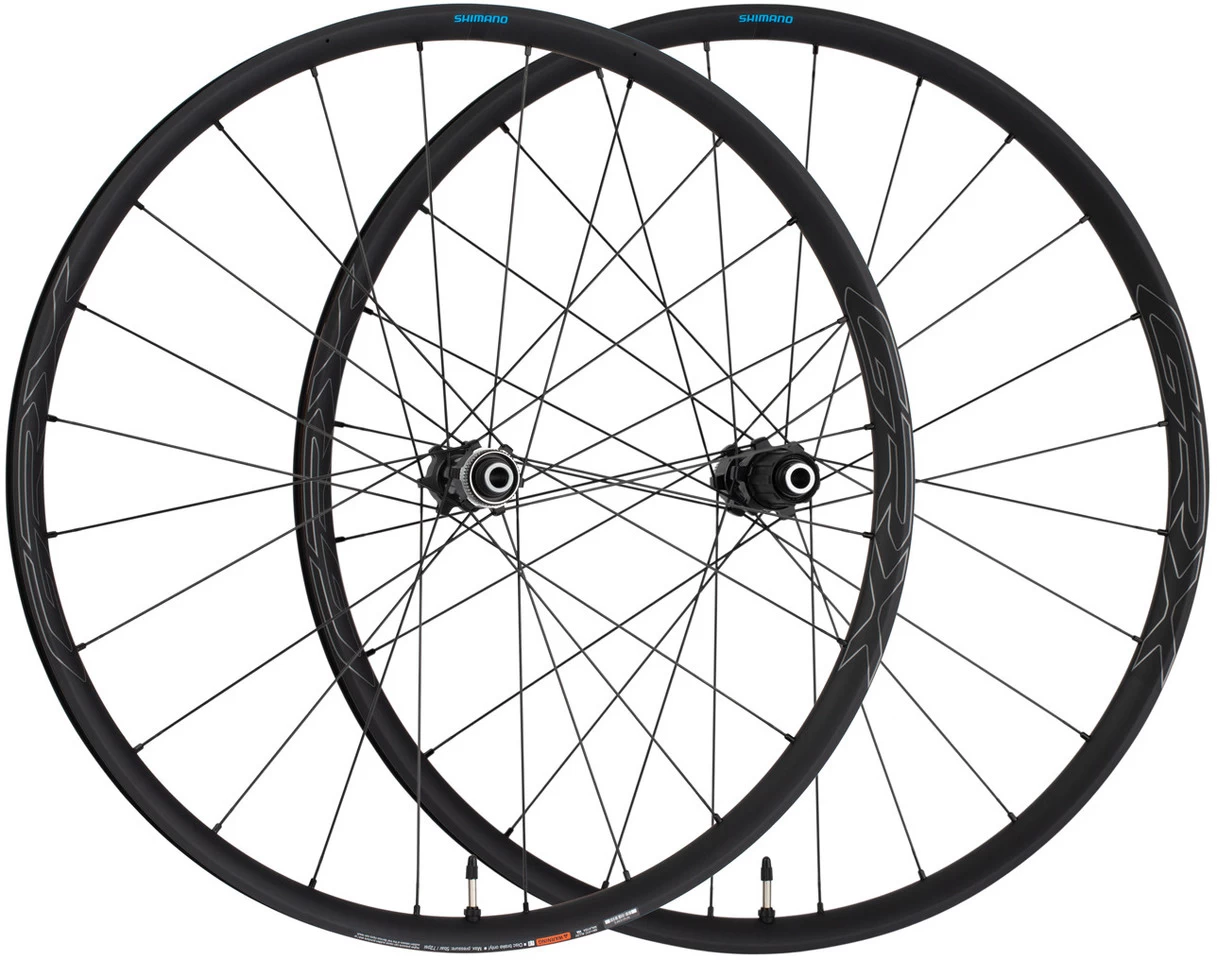

The Shimano GRX WH-RX570 28″ wheelset makes a great impression off the road
The Shimano GRX WH-RX570-TL 700C wheelset is specially designed for Gravel and off-road cycling. Compared to the 27.5″ version, it is the faster, and more sporty. Its wide tubeless rim is characterized by low flex even when cornering hard. The asymmetrical rim shape has been optimised for dirt repellence via an MTB-tested design. Overall, the WH-RX570 wheels stand for high stiffness and durability with surprisingly low weight.
Are you interested in the GRX series? Then have a look at our Shimano gravel site. You will find many more products there.
Specifications:Application:Gravel, Cyclocross, City & TouringWheel Size:28″Tyre Type:clincher tyreNumber of Spokes:24Brake Type:Center Lock DiscTubeless System:TL/USTTechnical Information – Rim:Type:Offset 2.5 mmRim Flange:with hookDimensions (ETRTO):21-622Inner Width:21.6 mmOuter Width:26 mmDepth:22 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:aluminiumTechnical Information – Front Hub:Over Locknut Dimension:12 x 100 mm thru-axleBearings:cup & coneBody Material:aluminiumTechnical Information – Rear Hub:Over Locknut Dimension:12 x 142 mm thru-axleBearings:cup & coneBody Material:aluminiumFreehub Body Material:steelFreehub Body:pawlsTechnical Information – Lacing:Front Lacing Pattern:2-crossRear Lacing Pattern:2-crossSpoke Type:bladed / straight pull /straightSpoke Size:296 mmSpoke Material:stainless steelNipple Size:2 mm (diameter)Nipple Material:aluminiumApproved For:Air Pressure (max.):5 barsRecommended Tyre Width:32-622 – 42-622Features:optimally designed for fast, reliable riding on mixed terrainwide tubeless rim limits flex when cornering aggressivelyfeeling of rotation similar to smaller wheelshigh stiffness and durability without additional weightMTB-inspired, asymmetrical, dirt-repellent rim shapewelded rim jointCBN precision machined bearings, polished, with contact sealfreehub body has contact sealinternal grease sleeveanodised and painted rim, anodised hub bodyaluminium hub axlesuse tubeless rim tape (included)Technology:Cup and Cone Bearings
Angular contact ball bearings of the cup & cone type are superior to sealed cartridge bearings in terms of load carrying capacity, as they distribute lateral and vertical forces better, and thus run particularly smoothly and last a long time. They are also easier to adjust, maintain and replace.
E-Thru
E-Thru is a tool-free thru-axle system from Shimano that optimises the stiffness-to-weight ratio and ensures easy handling via its reliable internal cam mechanism. It is characterised by a high torsion resistance and thus also supports cornering at high speed. E-Thru thru-axle hubs and thru-axles are available in the corresponding over locknut dimensions for front and rear.
Colour Info:black:
Rim: blackHubs: blackSpokes: blackNipples: blackModels:28″ set (front 12×100 + rear 12×142) Shimano:

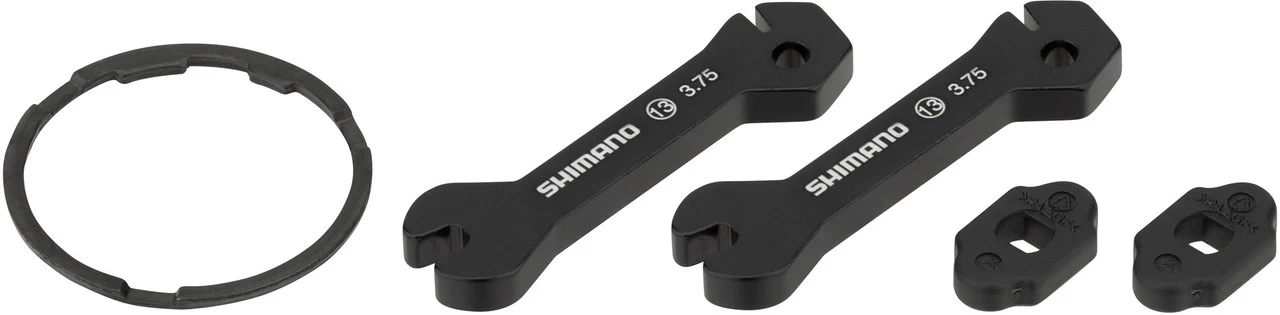

Freehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.Manufacturer Number:E-WHRX570LFED70 + E-WHRX570LRED70Contents:1 x Shimano WH-RX570-TL-700C wheelset (front & rear)2 x rolls tubeless rim tape (applied)
