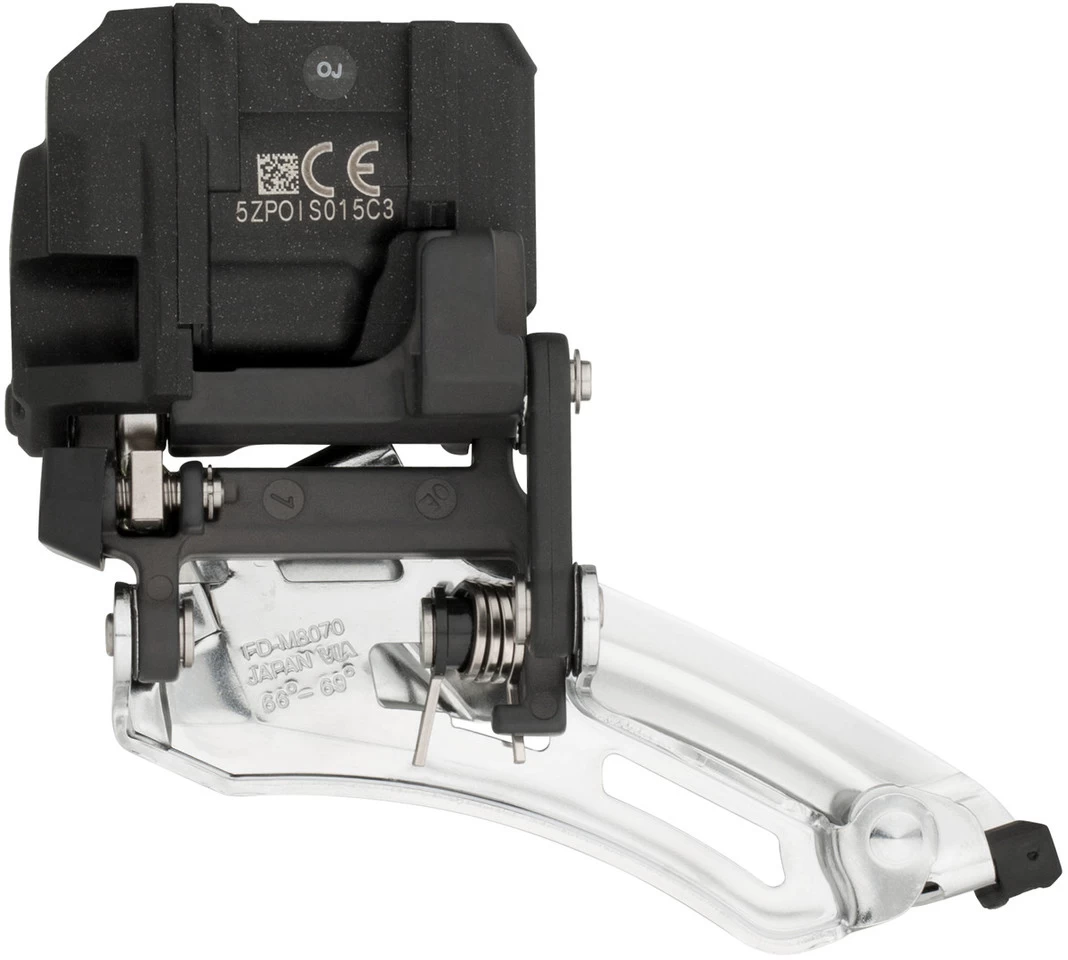

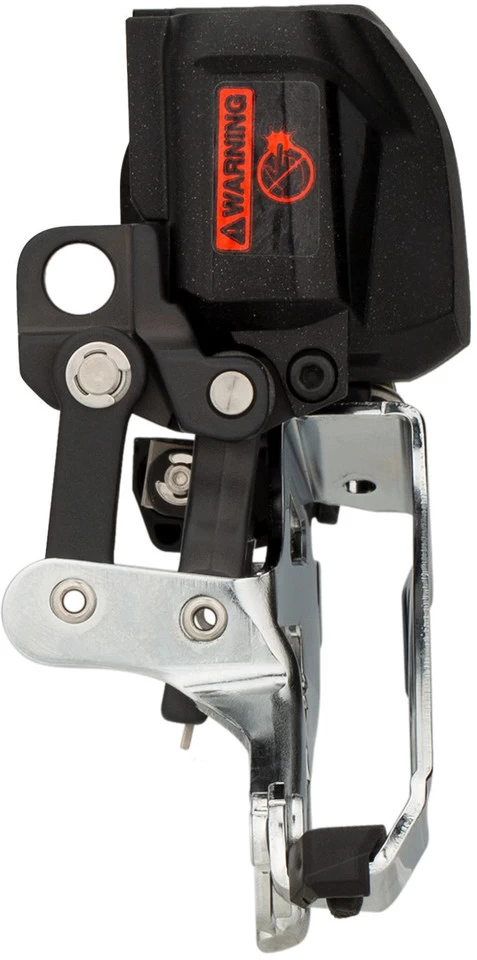

Shimano XT Di2 FD-M8070 2-/11-speed Front Derailleur

The XT Di2 FD-M8070 front derailleur by Shimano – for powerful, stable gear shifting
With the Shimano FD-M8070 XT Di2 front derailleur you can shift two chainrings on 11-speed drivetrains with high precision even under difficult conditions – thanks to the electronics. The front derailleur is a real thrill with its powerful, stable function, auto trim and Synchro Shift – a technology that ensures optimum adjustment to the position of the rear derailleur. The firmware can be kept up-to-date via the E-Tube platform. Adapters for mounting the front derailleur (low clamp, high clamp, direct mount, E-type) are available separately.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of batteries and electrical equipment can be found here.
Specifications:Series:Deore XT Di2 M8050Application:Cross Country, All MountainGearing:2x (combined w/ 11-speed)Chainstay Angle:66-69°Chainline:48.8 mm (51.8 mm for B-cranks)Chainring Size (max.):34-38 teethCapacity:10-toothMovement:down-swingMount:high clamp, low clamp w/ SM-FD905 adapter, E-type (bottom bracket mount, low-direct) w/ SM-FD905-E adapter, direct mount (high-direct) w/ M-FD905-D adapter (not incl.)Clamp Diameter:28.6 mm, 31.8 mm, 34.9 mm (with adapter)Compatibility:HG-X11 chainsTechnical Information:Outer Body Material:AluminiumInner Body Material:steelCage Material:steelNumber of E-Tube Ports:1Compatibility:Power Cable:EW-SD50 (1 x connection)Shifter:SW-M9050, SW-M8050Crank:FC-M9000-2, FC-M9020-2, FC-M9020-B2*, FC-M8000-2, FC-M8000-B2*, FC-M7000-2, FC-M7000-B2*, FC-M5100-2, FC-M5100-B2*, FC-MT700-2, FC-MT700-B2*, FC-MT600-2, FC-MT600-B2*Chain:CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500Mounting Adapter:SM-FD905
* direct Mount and E-Type only
Features:precise and reliable shifting in every situationinstant response, powerful shiftinghigher performance than with mechanical designintelligent and efficient gear selection with Shimano Synchronized Shiftonly one lever movementshift layout programmable by the rider7 joint bushingspainted/plated parallelogram, nickel-plated cage platesE-Tube project ensures firmware updatesTechnology:Digital Integrated Intelligence (Di2)
Di2 systems are the electronic shifting systems from Shimano. They are based on the SEIS, the Shimano Electronic Intelligent System, which takes over the index shifting function from the mechanical components, only via power cables or radio signals and not via a Bowden cable. Shifting is done by simply pressing a button. This has the advantage that no great effort is required, your concentration on the ride is not disturbed and operation is easy even with cold hands. In addition, the electronic gear changes are very fast and highly precise. There is also no risk of a defective circuit due to dirty cables or other problems. You can adjust individual settings via the E-Tube Project, such as adjusting the shifting speed, the number of shifting operations per button press or the Synchro or Semi-Synchro shifting function. Shimano offers an app for this purpose. Gear maintenance and firmware updates are also done via E-Tube, with the bike connected to a PC running the appropriate E-Tube software for more extensive workshop work.

Shimano Synchronized Shift
Shimano’s synchronised shifting function is a shifting mode that automatically matches the Di2 rear derailleur and Di2 front derailleur. It is activated either via the E-Tube platform or via the rear derailleurs with a function button. Synchro Shift means that the front derailleur automatically selects a suitable gear depending on the position of the rear derailleur, while Semi-Synchro Shift means that a suitable rear derailleur position is automatically set when you operate the front derailleur. This gives you the advantage that you only have to concentrate on one side of the shifting process and are not thrown off-rhythm by sudden unfavourable changes to the gear ratio.
Manufacturer Number:I-FDM8070
Contents:1 x Shimano XT Di2 FD-M8070 front derailleurOrder Together:adapter for front derailleur installation
