Shimano XT Di2 Linkglide Shifter SW-M8150-I W/ I-Spec EV 10-/11-/12-speed

Shimano XT Di2 shifter SW-M8150-I with I-Spec EV mount – Flexibly adjustable for effortless shifting on your e-bike

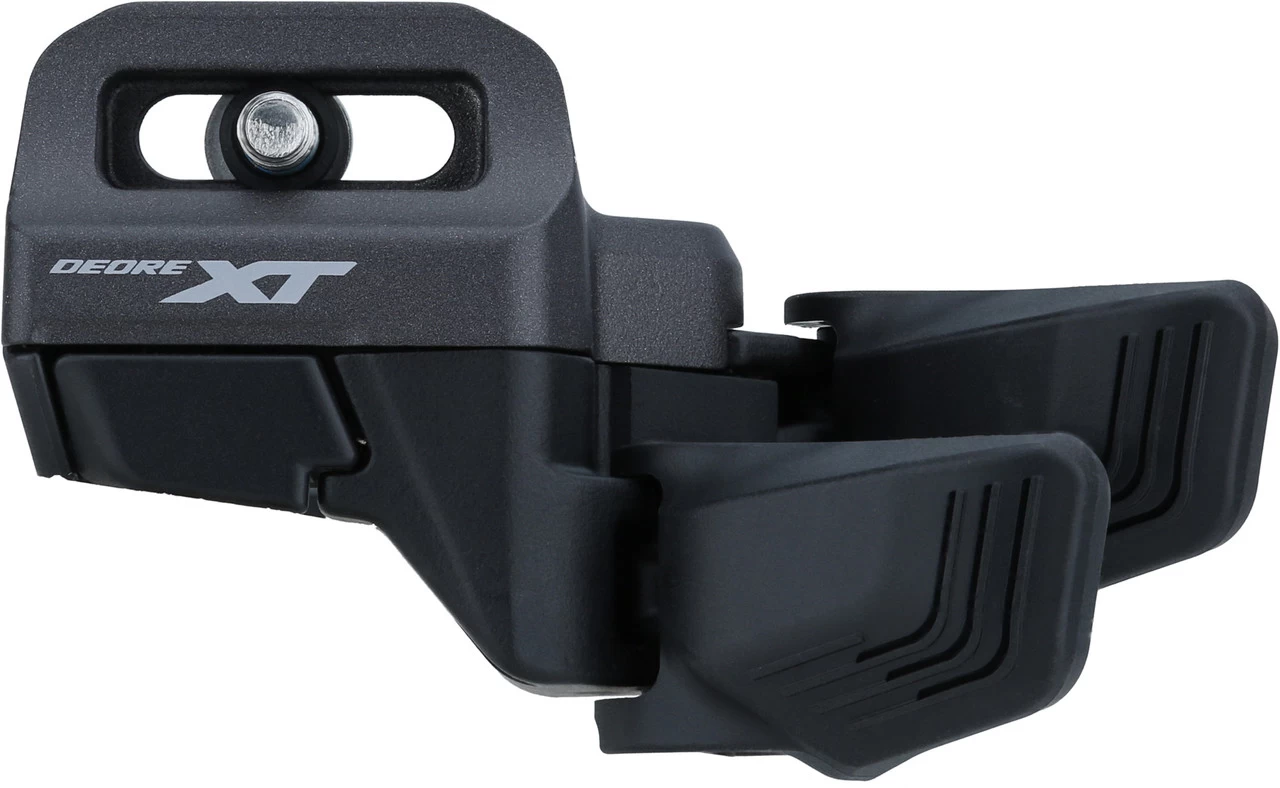

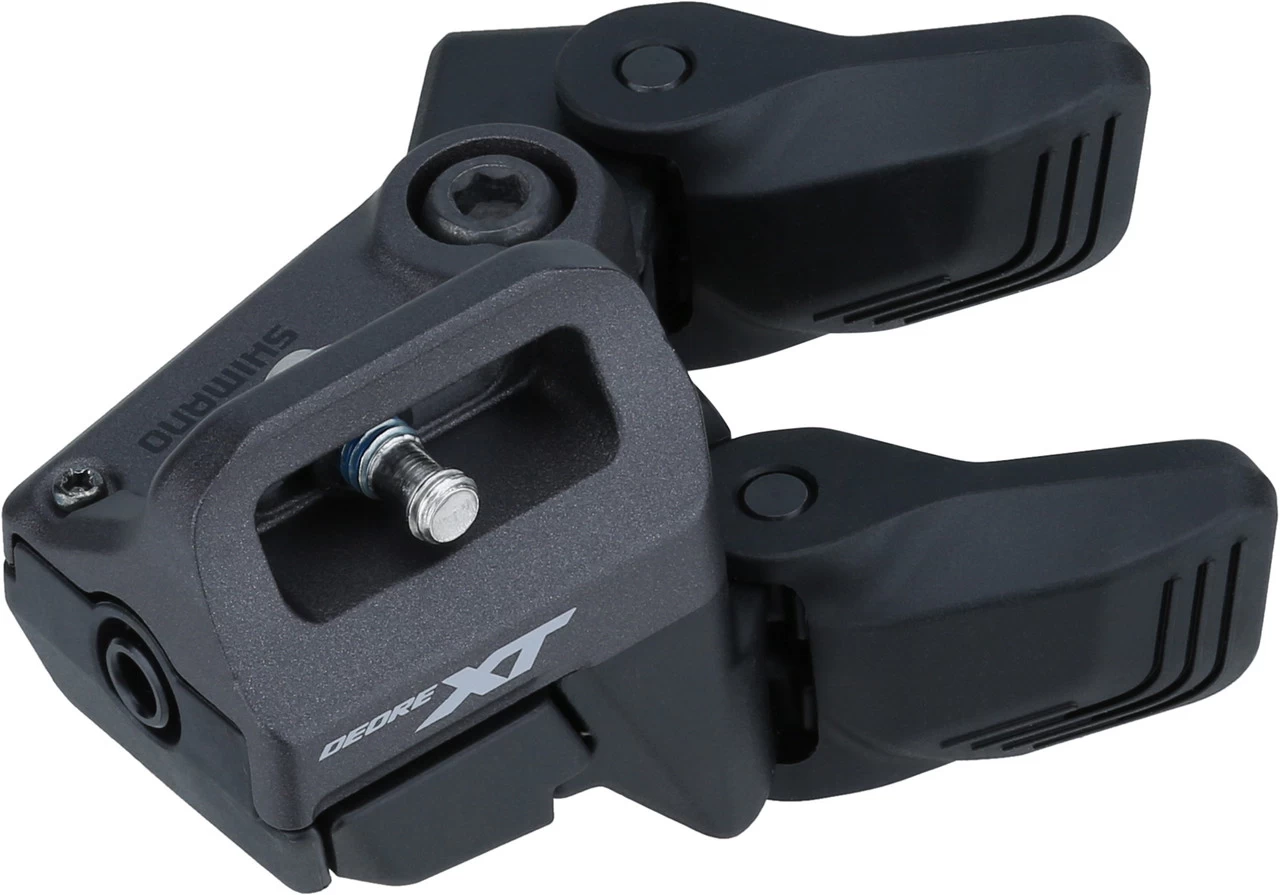

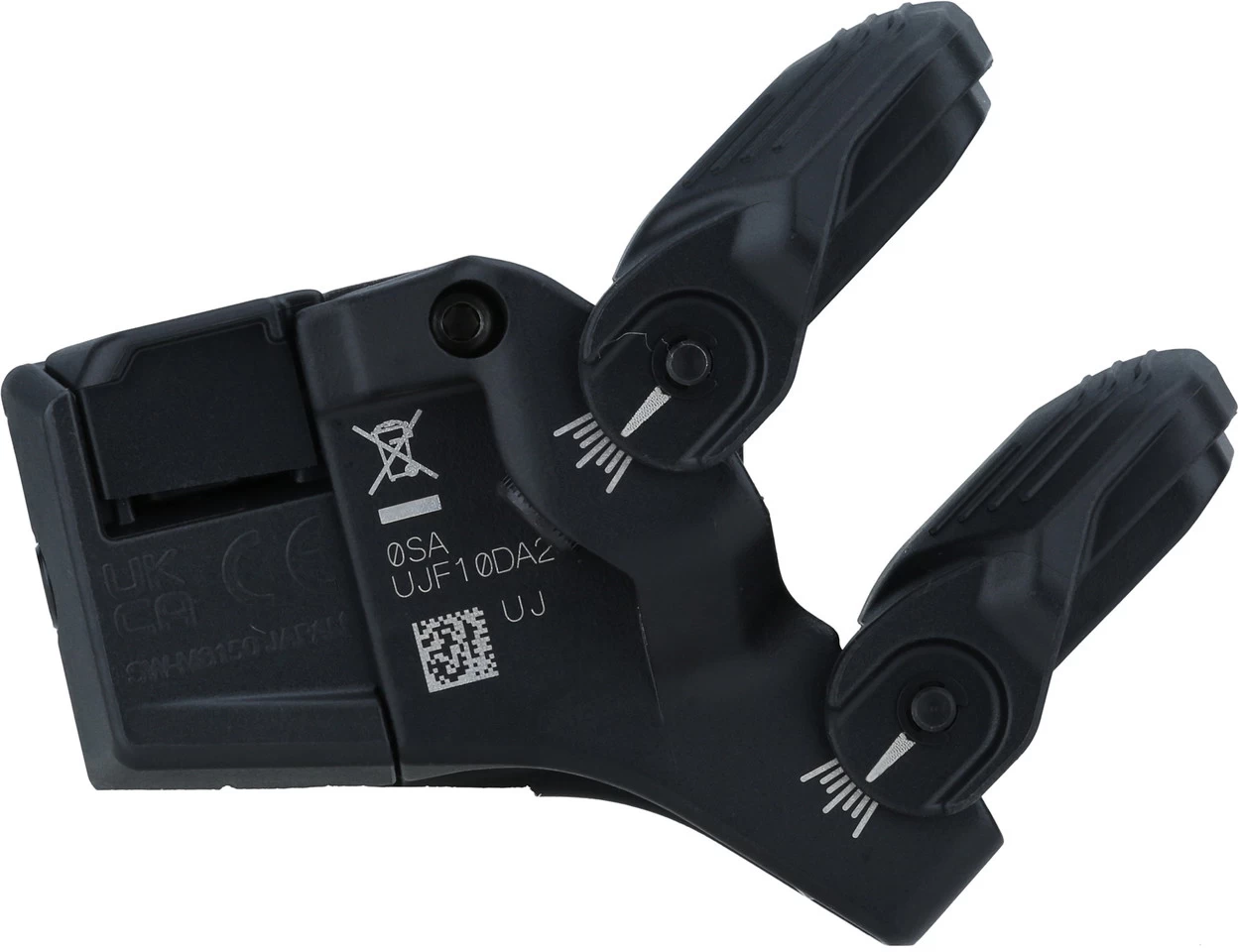

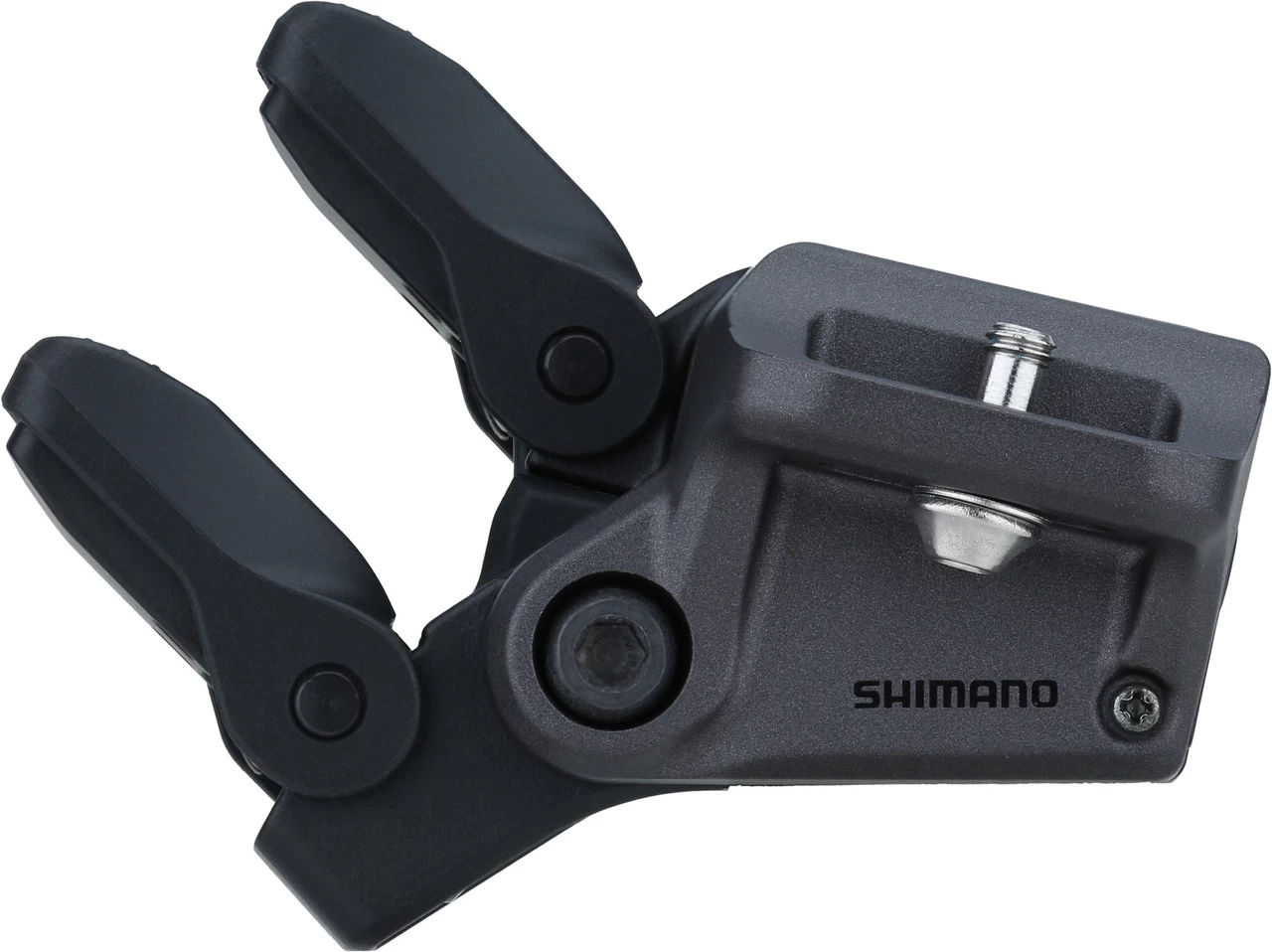

The SW-M8150 XT Di2 shifter, shown here in the version for I-Spec EV mounting on a compatible brake lever, has been specially designed by Shimano for e-touring bikes and e-MTBs with electronic 1×10-speed or 1×11-speed shifting, Linkglide drivetrain and Automatic Shift. However, it can also be used on e-mountain bikes with a conventional 1×11-speed or 1×12-speed electronic gears, provided the EP801 or EP6 motor is installed. It cannot be used for bicycles without one of these motors.
The shifter has a total of three buttons. Two of them are designed as rocker switches, the angle of which can be finely adjusted with the help of a 3-mm hex wrench. This way you can adapt the construction to the ergonomics of your hand. By default, you use the rocker switches to move the rear derailleur outwards or inwards and the additional button to change the mode between automatic and manual gear changes. However, all switch settings can be changed via the E-Tube Platform. You also have the option of shifting several gears at once by holding down a button. Thanks to the smooth operation and good accessibility, you shift more effortlessly, more precisely and focus on the path or trail ahead.
SW-M8150 is attached to the clamp of a brake lever with I-Spec EV mount on the right side of MTB handlebars. Thanks to I-Spec EV, you have extended adjustment possibilities in longitudinal and rotational direction, so that the cockpit can be designed even more ergonomically. The connection to the Di2 E-bike System is established via the newer EW-SD300 cable type.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of batteries and electrical equipment can be found here.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.
Specifications:Series:Deore XT Di2 M8150 (Linkglide)Application:Touring, City, All MountainGearing:10-/11-speed, 11-/12-speedMount:I-Spec EVTechnical Information:Type:with adjustable leversBody Material:compositeLever Material:compositeCompatibility:Brake Lever:I-Spec EVPower Cable:EW-SD300 (1 x connection)Rear Derailleur:RD-M8150-12, RD-M8150-11, RD-U6070Cassette:CS-M9101-12, CS-M9100-12, CS-M8100-12, CS-M7100-12, CS-M6100-12, CS-LG700-11, CS-LG600-11, CS-LG400-11Chain:CN-M9100, CN-M8100, CN-M7100, CN-M6100, CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500E-Bike:
EP8 EP801 for MTB 11-/12-speed with Di2 rear derailleurEP8 EP801 for City / Touring 10-/11-speed with Di2 rear derailleur and Automatic ShiftEP6 for MTB 11-/12-speed with Di2 rear derailleurEP6 for City / Touing 10-/11-speed with Di2 rear derailleur and Automatic ShiftFeatures:shifters for e-bikes with EP801 or EP6 motor (Shimano Di2 Linkglide Auto Shift or Di2 12-speed MTB)individual adjustment of both rocker switches to adapt to the ergonomics of the handindividual switch assignment and setting of the Multi-Shift mode via E-Tube Projectadditional button for quick selection of manual or automatic shift modesmooth but immediate shifting feel for precise shifting even in rough terrainextended adjustment possibilities thanks to I-Spec EV for an optimised cockpitdirect power supply via Shimano e-bike battery, connection via EW-SD300 cableE-Tube project ensures firmware updatesTechnology:Digital Integrated Intelligence (Di2)
Di2 systems are the electronic shifting systems from Shimano. They are based on the SEIS, the Shimano Electronic Intelligent System, which takes over the index shifting function from the mechanical components, only via power cables or radio signals and not via a Bowden cable. Shifting is done by simply pressing a button. This has the advantage that no great effort is required, your concentration on the ride is not disturbed and operation is easy even with cold hands. In addition, the electronic gear changes are very fast and highly precise. There is also no risk of a defective circuit due to dirty cables or other problems. You can adjust individual settings via the E-Tube Project, such as adjusting the shifting speed, the number of shifting operations per button press or the Synchro or Semi-Synchro shifting function. Shimano offers an app for this purpose. Gear maintenance and firmware updates are also done via E-Tube, with the bike connected to a PC running the appropriate E-Tube software for more extensive workshop work.

Auto Shift
Auto Shift – or ” Automatic Shift” – is a shifting technology for e-bikes with Shimano motors of the EP8 and EP6 series. As the name suggests, it enables automatic gear changes based on continuous analysis of sensor data such as cadence, torque and speed. Based on this, the system selects the appropriate gear for you and you don’t have to do anything other than concentrate on the route ahead. Fo
