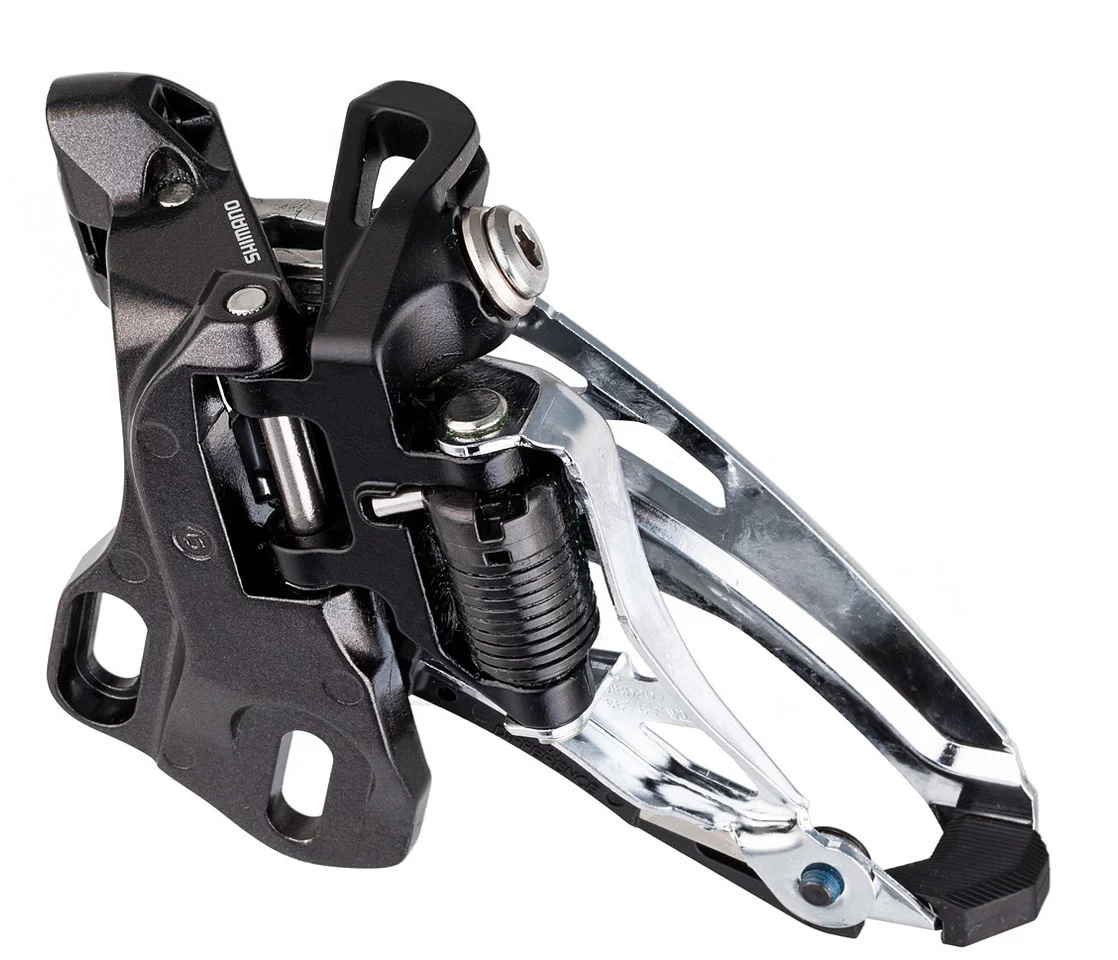

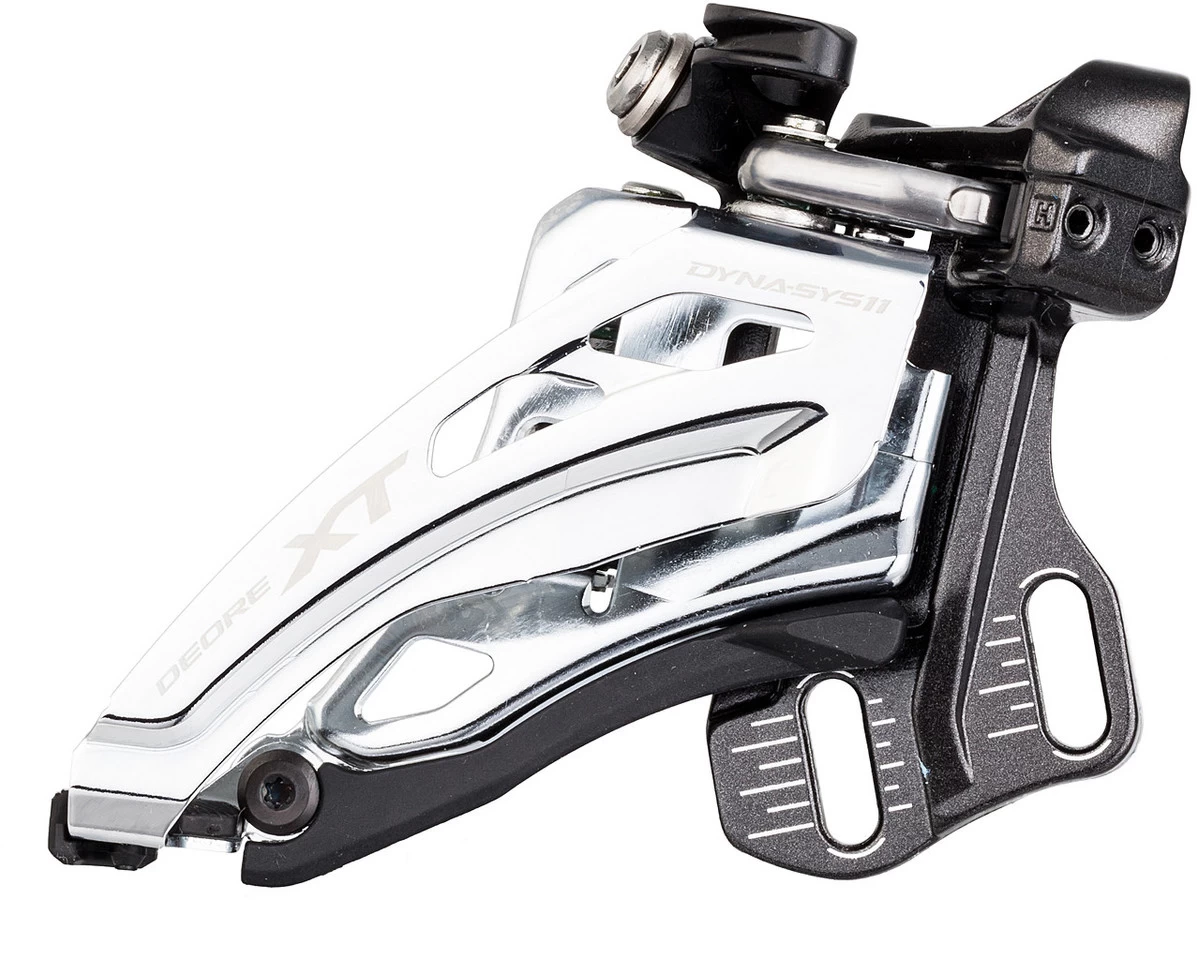

Shimano XT FD-M8020 / FD-M8025 2-/11-speed Front Derailleur

The Shimano XT front derailleurs FD-M8025 and FD-M8020 – from classic to innovative
The Shimano XT front derailleurs FD-M8020 and FD-M8025 shift two chainrings in the 11-speed Mountain bike drivetrain and contribute significantly to the DynaSys11 performance. The FD-M8025 is a model with classic cable routing (dual-pull or down-pull) and conventional construction (down-swing or top-swing), while the FD-M8020 features innovative side-swing technology and the associated front-pull routing. These provide a higher shifting force and even more tyre clearance. Mounting options include clamp mounts, direct mount and E-type for both models.
Specifications:Series:Deore XT M8000Application:Cross Country, All MountainGearing:2x (in combination with 11-speed)Chainstay Angle:66-69°Chainline:48.8 mmChainring Size (max.):34-38 teethCapacity:10-toothCable Routing:front-pull, top-pull, down-pull, dual-pullMovement:side-swing, down-swing, top-swingMount:high clamp, low clamp, E-type* (bottom bracket mount, low-direct), direct mount (high-direct)Clamp Diameter:34.9 mm w/ adapter 31.8 mm / 28.6 mmCompatibility:HG-X11 chains
* FD-M8020: Frames must be made for E-type mounts, retrofitting an E-type retaining plate is not possible.
Technical Information:Outer Body Material:aluminium, steel (only FD-M8025-E, FD-M8025-L)Inner Body Material:AluminiumCage Material:steelCompatibility:Shifter:SL-M9000, SL-M8000, SL-M7000, SL-M5100Crank:FC-M9000-2, FC-M9020-2, FC-M9020-B2*, FC-M8000-2, FC-M8000-B2*, FC-M7000-2, FC-M7000-B2*, FC-M5100-2, FC-M5100-B2*, FC-MT700-2, FC-MT700-B2*, FC-MT600-2, FC-MT600-B2*Chain:CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500
* direct Mount and E-Type only
Features:increased stability, manoeuvrability and shifting efficiencymore tyre clearance for large wheelscompatible with shorter chainstaysefficient cable routing for easy gear changesversatile specifications, compatible with traditional mounting options50 % higher shifting force (outward, compared to previous XT, only FD-M8020)increased traction range for long travel and active rear suspension (FD-M8020 only)2, 6 or 8 joint bushings depending on versionpainted parallelogram, plated cage platesTechnology:Dyna-Sys11
Dyna-Sys11 is the name of the 11-speed shifting system for MTBs from Shimano. The focus lies on maintaining the pedalling rhythm both on flat ground and on uphill segments. The gear ratios are selected so that you make efficient progress in the most frequently used gear range and do not have to shift gears as much (” Rhythm Step” ).

Side-Swing
The Shimano Side-Swing front derailleurs are controlled from the front (Front-Pull), which allows for much more efficient cable routing. This significantly improves shifting performance, especially when shifting to the large chainring – with lower operating forces. Other advantages include increased tyre clearance thanks to the slimmed-down design and noise reduction thanks to the optimised chainstay angle. In addition, Side-Swing technology favours the construction of frames with shorter chainstays, which simplify the control of the bike.
Manufacturer Numbers:high clamp / down-swing / top-pull:I-FDM8025HTX6high clamp / down-swing / dual-pull:I-FDM8025HX6low clamp / top-swing / down-pull:I-FDM8025LX6high clamp / side-swing / front-pull:I-FDM8020HX6low clamp / side-swing / front-pull:I-FDM8020LX6direct mount / down-swing / top-pull:I-FDM8025DT6direct mount / down-swing / dual-pull:I-FDM8025D6direct mount / side-swing / front-pull:I-FDM8020D6E-type / top-swing / down-pull:I-FDM8025ED6XE-type / side-swing / front-pull:I-FDM8020E6XContents:1 x Shimano XT FD-M8020/FD-M8025 front derailleur1 x 28.6 mm adapter (only clamp model)1 x 31.8 mm adapter (only clamp model)
