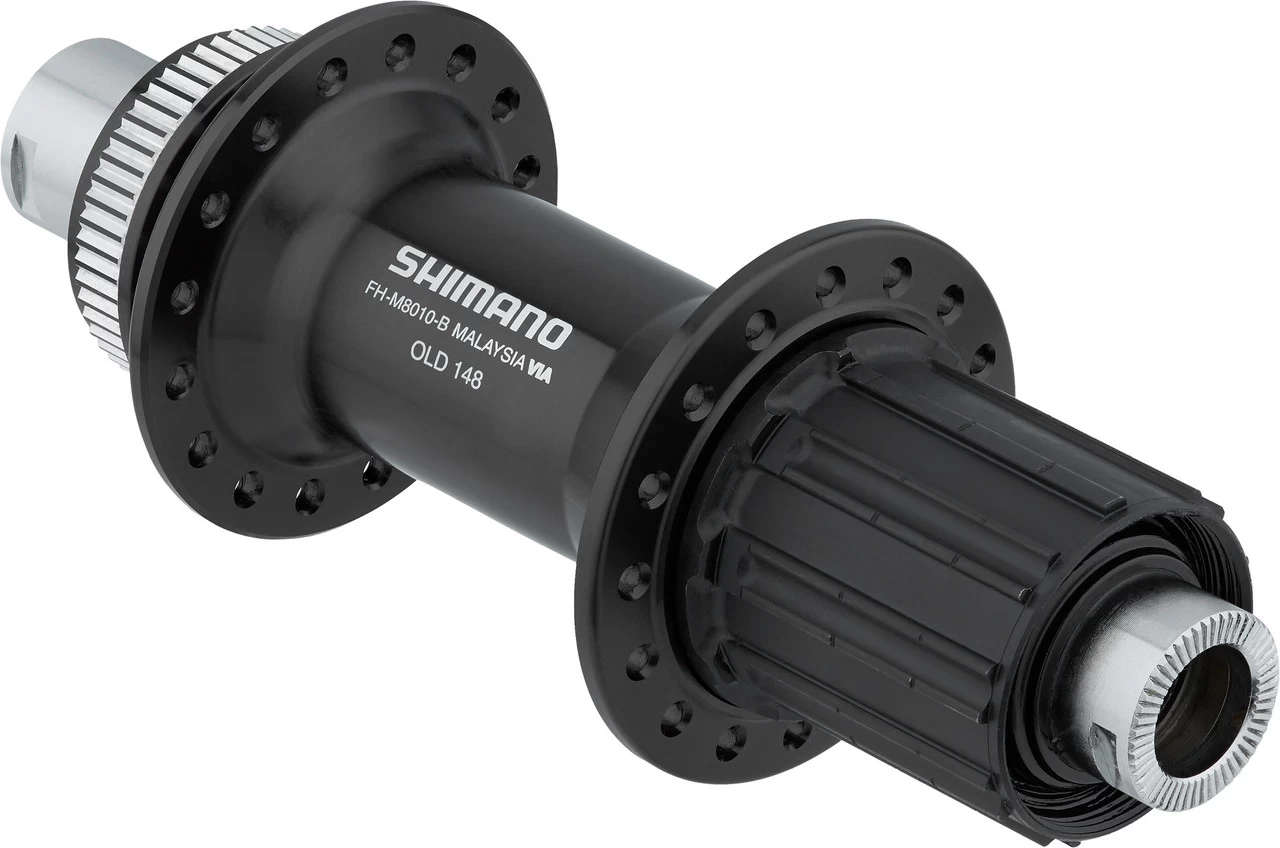

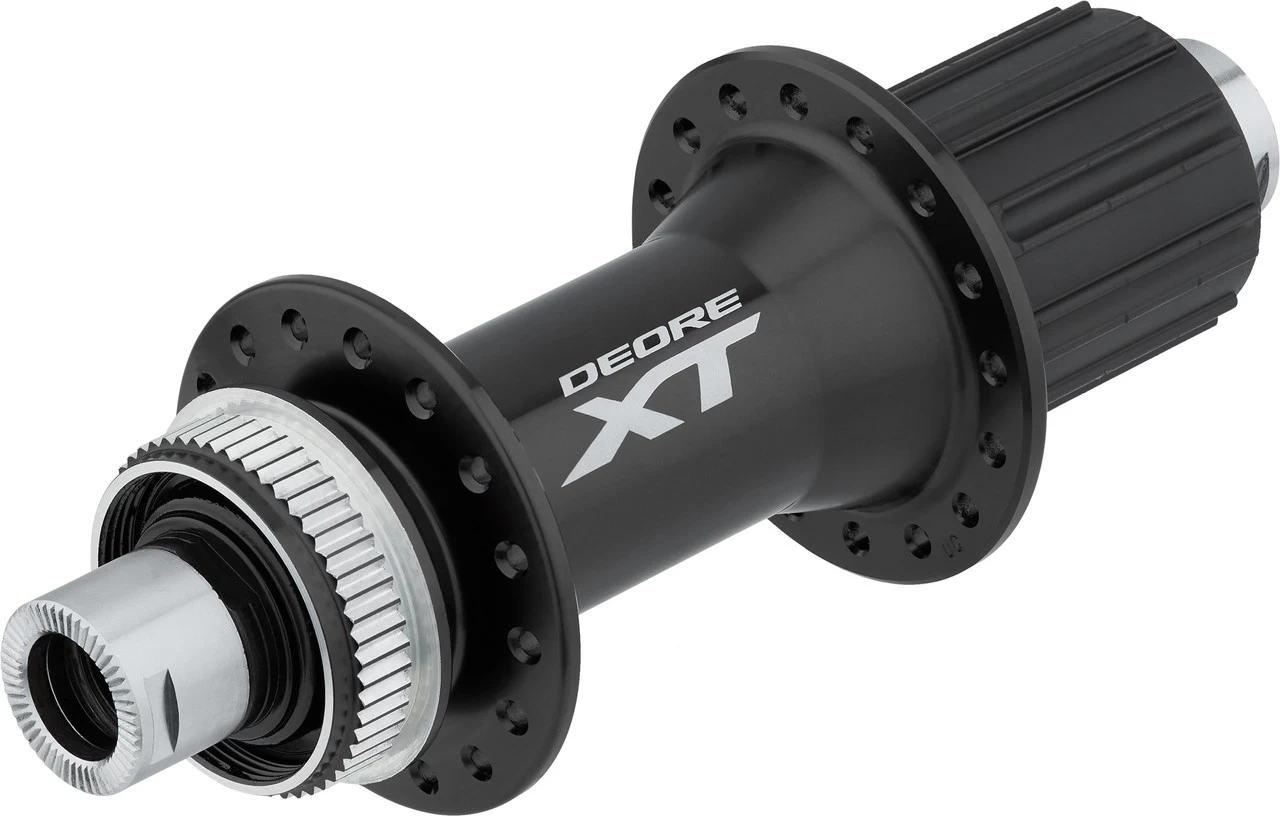

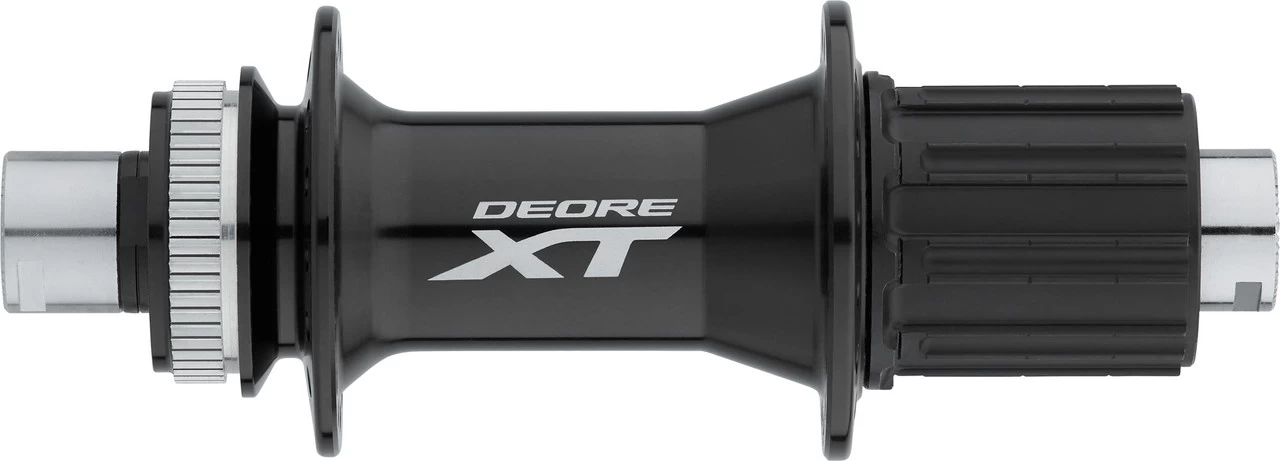

The XT rear hub FH-M8010-B by Shimano – increased flange spacing
The XT FH-M8010-B rear hub was launched by Shimano to offer an XT option for bikes with 12 x 148 mm rear over locknut dimensions. The flange distance is increased by 6 mm compared to FH-M8010. The hub consists of a lightweight aluminium body and an aluminium axle – only the freehub (11-speed) is made of steel. Sealed, greased cup & cone bearings and Quick Engagement technology guarantee reliable performance and fast traction. The Shimano E-Thru system inspires with its strength and torsional stiffness under all conditions.
Specifications:Series:Deore XT M8000Application:Cross Country, All MountainBrake Type:Center Lock DiscWheel Standard:BoostFreehub Body Type:steel, Quick Engagement (>36points/360°)Technical Information:Body Material:aluminiumBearings:cup & coneSeals:labyrinth + contactFeatures:148 mm axle length, 15 mm axle diameterflange diameter 52.8 mm left, 53.8 mm right6.4 mm offsetCBN precision machined bearings/groundaluminium axlesanodised hub shellinternal grease sleevefreehub body has contact sealquick engagementhigher stiffness of the wheel: wider flangedurable and suitable for all weather conditions, reliable performance and lower weightrefined gear changes and improved power transmissionTechnology:E-Thru
E-Thru is a tool-free thru-axle system from Shimano that optimises the stiffness-to-weight ratio and ensures easy handling via its reliable internal cam mechanism. It is characterised by a high torsion resistance and thus also supports cornering at high speed. E-Thru thru-axle hubs and thru-axles are available in the corresponding over locknut dimensions for front and rear.
Cup and Cone Bearings
Angular contact ball bearings of the cup & cone type are superior to sealed cartridge bearings in terms of load carrying capacity, as they distribute lateral and vertical forces better, and thus run particularly smoothly and last a long time. They are also easier to adjust, maintain and replace.
Models:32 hole:
Over Locknut Dimension:12 x 148 mm thru-axleSpoke Hole Count:32 holeFreehub:Shimano MTBGearing:8-/9-/10-/11-speedFlange Distance (L/R):63.4 mm (38.1 mm/25.3 mm)Partial Bolt Circle Diameter (L/R):44 mm/45 mmManufacturer Number:E-FHM8010BEContents:1 x Shimano XT FH-M8010-B rear hub
