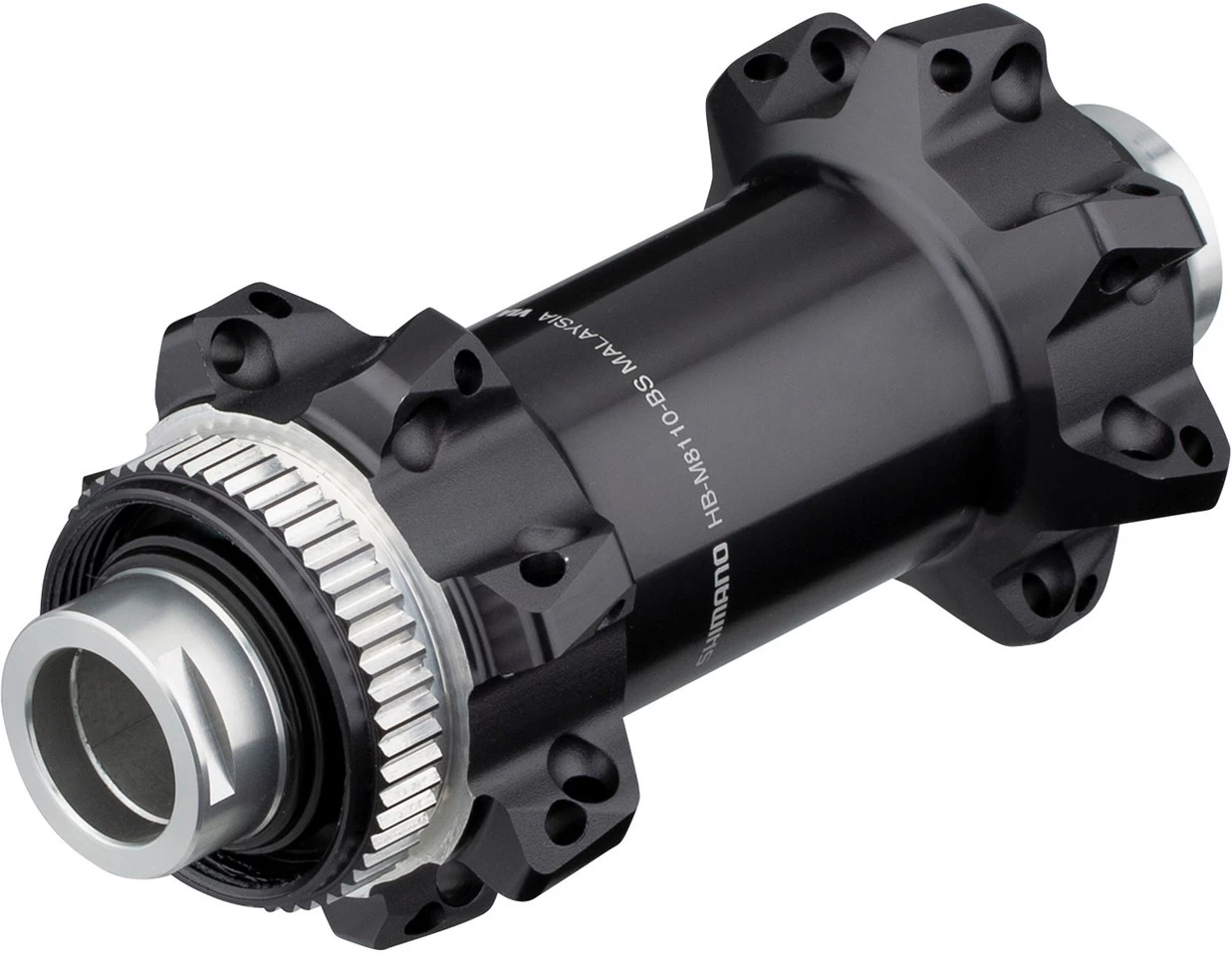

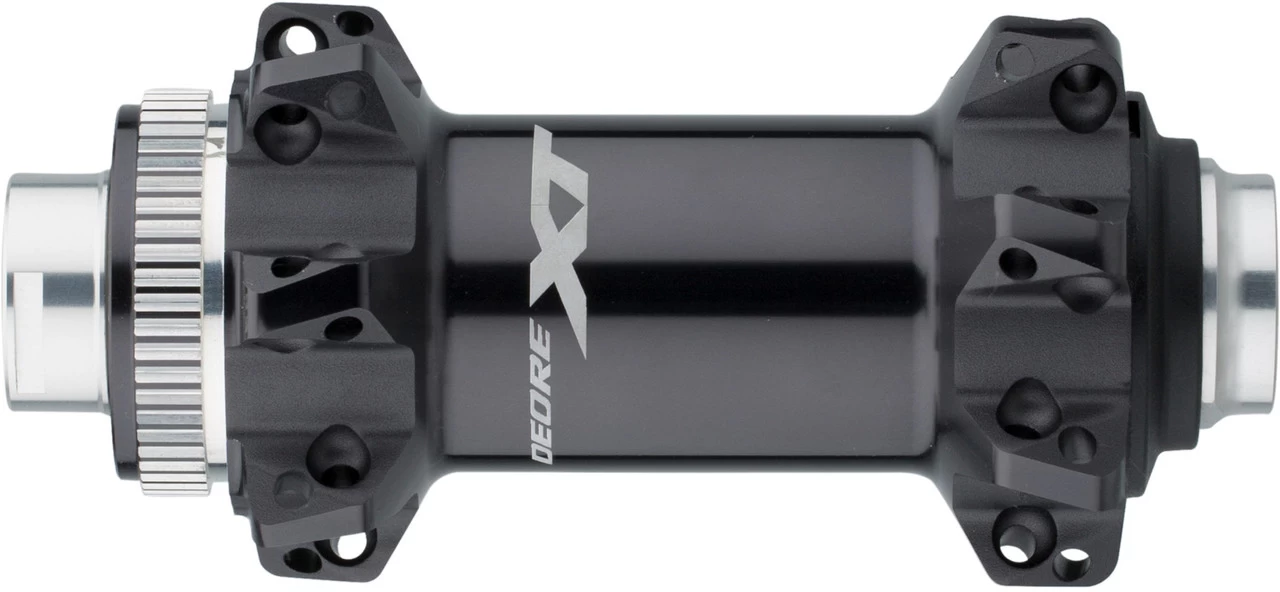

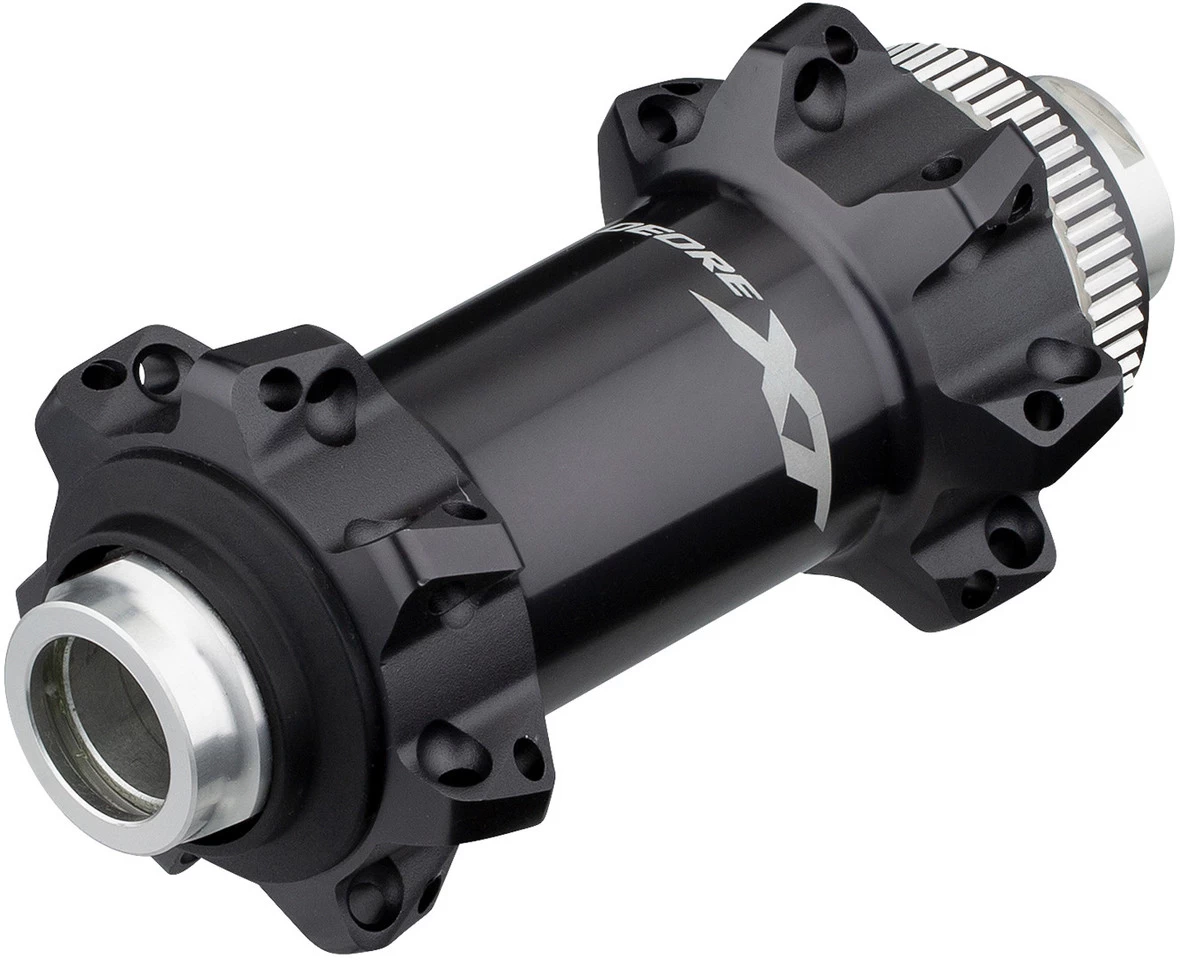

Shimano XT HB-M8110-BS Center Lock Disc 15 mm Thru-Axle Front Hub

XT HB-M8110-BS front hub by Shimano – For straight spokes and 3 cross
The Shimano XT HB-M8110-BS front hub is designed for straight pull spokes and triple cross in contrast to the HB-M8110-B hub. It has an over locknut dimension of 110 mm and is characterised by simple brake rotor installation and reliable trail performance. The Shimano E-Thru technology for optimum rigidity and the combination of labyrinth and contact seals are further special features of the HB-M8110-BS hubs.
Specifications:Series:Deore XT M8100Application:Enduro, All Mountain, Cross CountryBrake Type:Center Lock DiscWheel Standard:BoostTechnical Information:Body Material:aluminiumBearings:cup & coneCompatibility:for straight pull spokesfor ERD 550-610 mm and rim offset 0-3 mmspoke pattern: 3 cross (incl. spoke head in hub body, sometimes called 2 cross)Features:easy setup and reliable trail performancebrake rotor can be quickly mounted with spline mount and lockringtool-free 15 mm thru axle system optimises stiffness and weight51 mm flange diameter3.7 mm offsetCBN precision machined stainless steel bearings/polishedaluminium axlesanodised hub shellinternal grease sleeveTechnology:E-Thru
E-Thru is a tool-free thru-axle system from Shimano that optimises the stiffness-to-weight ratio and ensures easy handling via its reliable internal cam mechanism. It is characterised by a high torsion resistance and thus also supports cornering at high speed. E-Thru thru-axle hubs and thru-axles are available in the corresponding over locknut dimensions for front and rear.

Cup and Cone Bearings
Angular contact ball bearings of the cup & cone type are superior to sealed cartridge bearings in terms of load carrying capacity, as they distribute lateral and vertical forces better, and thus run particularly smoothly and last a long time. They are also easier to adjust, maintain and replace.
Models:15 x 110 mm / 28 hole:

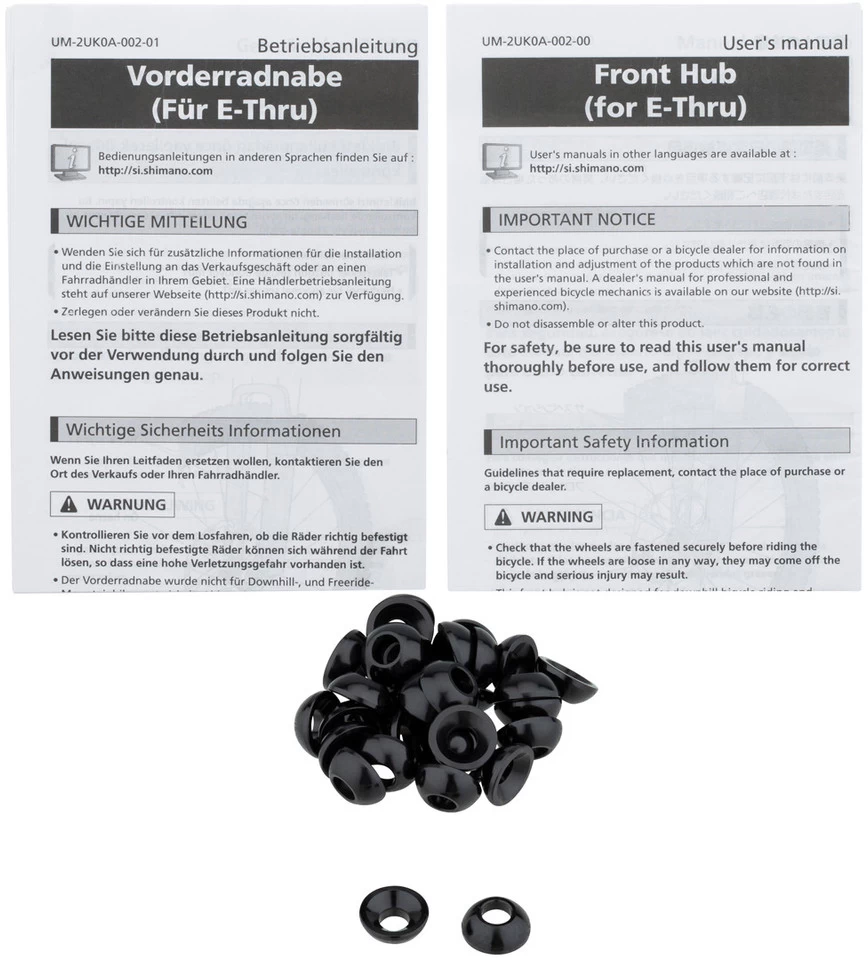

Over Locknut Dimension:15 x 110 mm thru-axleSpoke Hole Count:28 holeFlange Distance (L/R):62.8 mm (27.7 mm/35.1 mm)Partial Bolt Circle Diameter (L/R):45 mm/45 mmManufacturer Number:E-HBM8110BSCXContents:1 x Shimano XT HB-M8110-BS front hub
