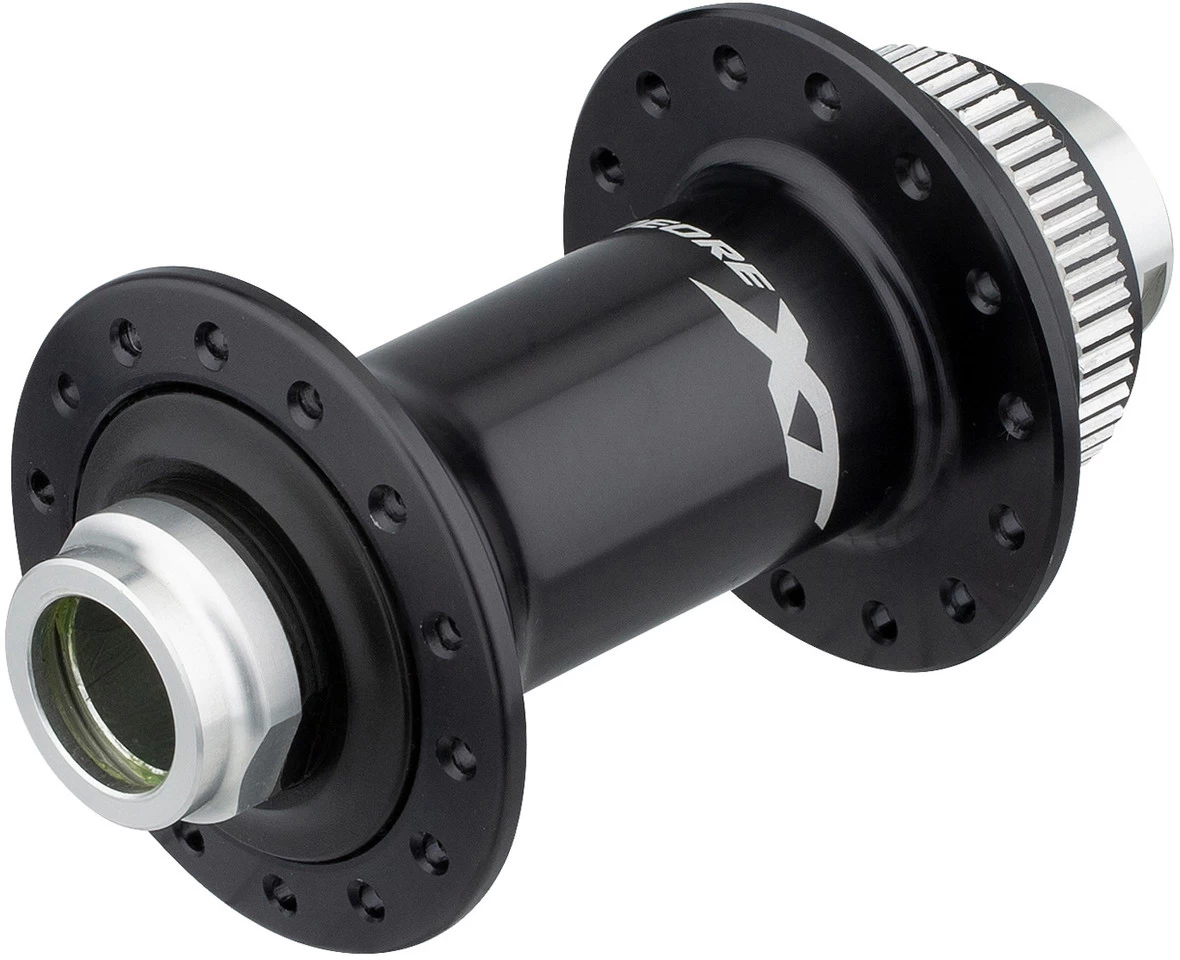

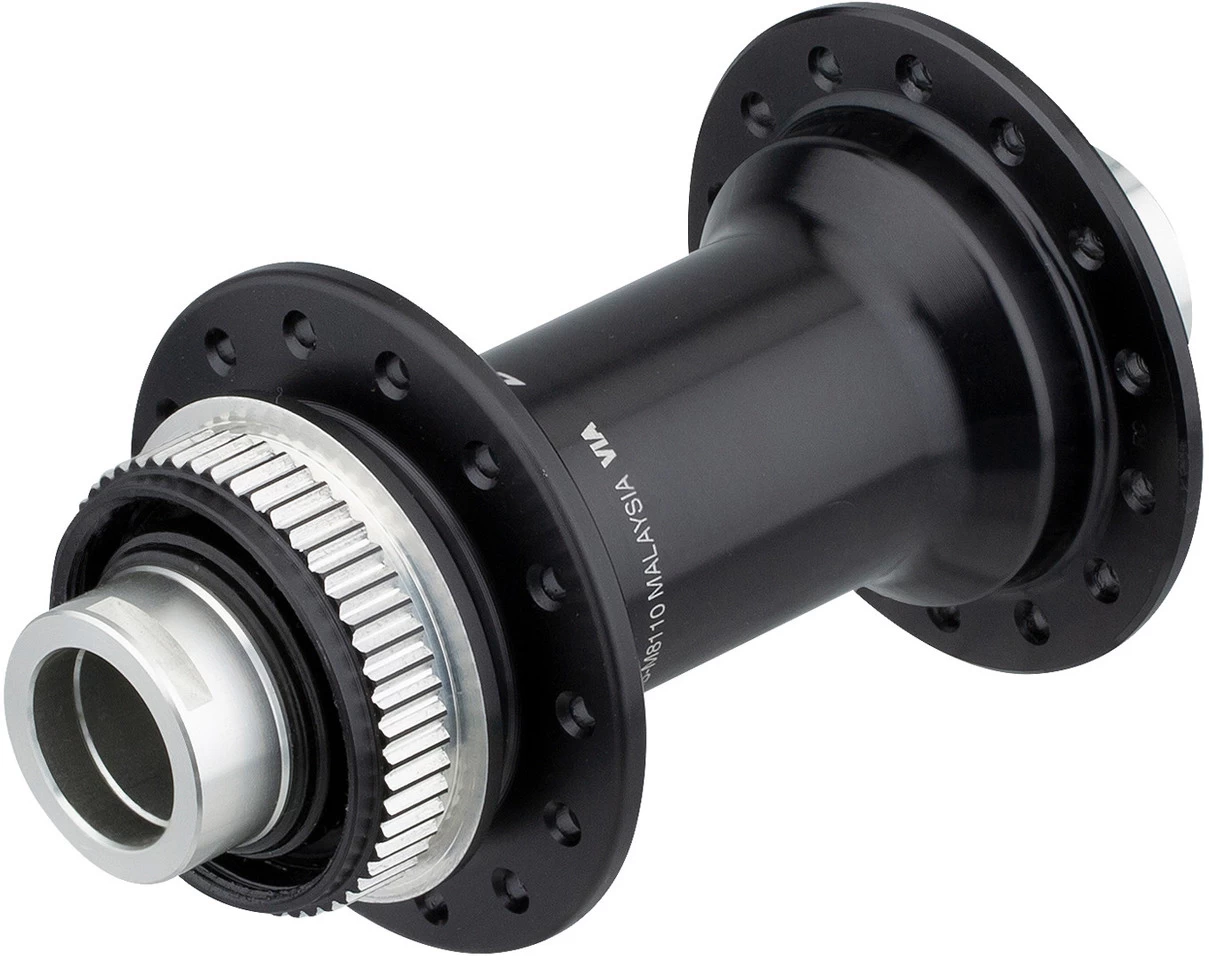

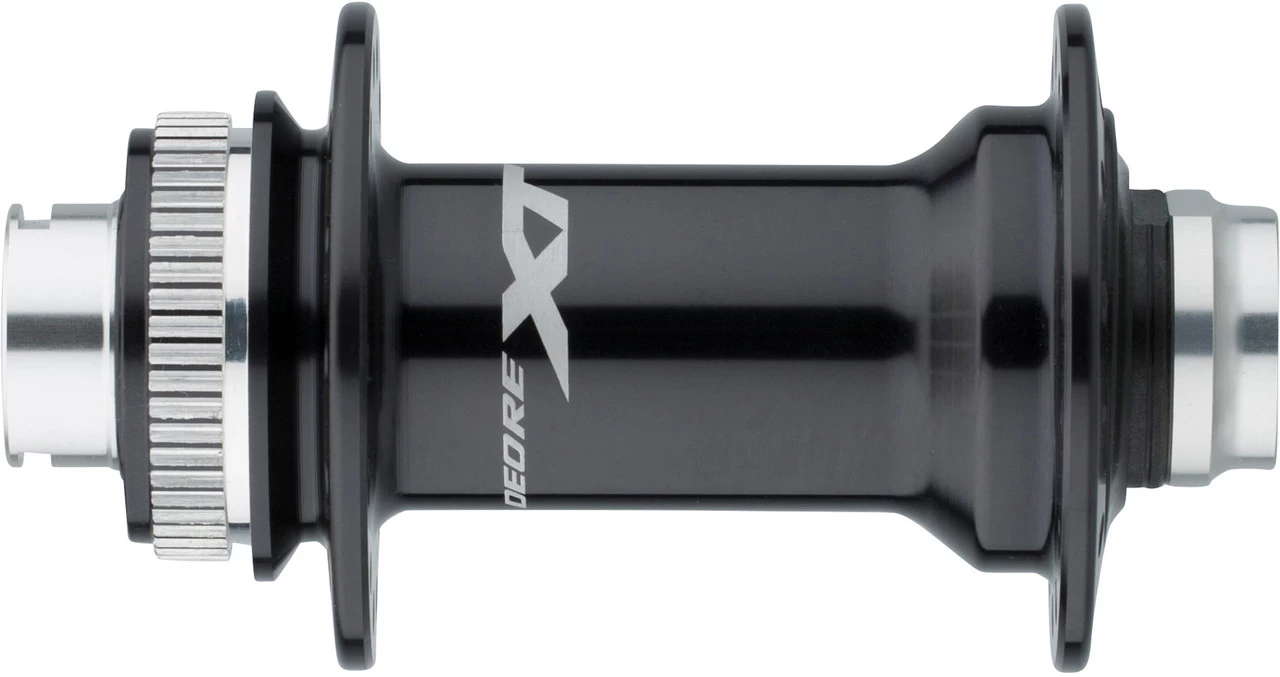

Shimano XT HB-M8110 Center Lock Disc 15 mm Thru-Axle Front Hub

Shimano XT HB-M8110 front hub – reliable performance on the trail
The Shimano XT HB-M8110 front hub has an over locknut dimension of 100 mm. It features easy rotor setup and reliable trail performance. The Shimano E-Thru technology for optimal stiffness and the combination of labyrinth and contact seals are further important features of the HB-M8110 hubs.
Specifications:Series:Deore XT M8100Application:Enduro, All Mountain, Cross CountryBrake Type:Center Lock DiscTechnical Information:Body Material:aluminiumBearings:cup & coneFeatures:easy setup and reliable trail performancebrake rotor can be quickly mounted with spline mount and lockringtool-free 15 mm thru axle system optimises stiffness and weight52.8 mm flange diameter5.7 mm offsetCBN precision machined bearings/polishedaluminium axlesanodised hub shellinternal grease sleeveTechnology:E-Thru
E-Thru is a tool-free thru-axle system from Shimano that optimises the stiffness-to-weight ratio and ensures easy handling via its reliable internal cam mechanism. It is characterised by a high torsion resistance and thus also supports cornering at high speed. E-Thru thru-axle hubs and thru-axles are available in the corresponding over locknut dimensions for front and rear.

Cup and Cone Bearings
Angular contact ball bearings of the cup & cone type are superior to sealed cartridge bearings in terms of load carrying capacity, as they distribute lateral and vertical forces better, and thus run particularly smoothly and last a long time. They are also easier to adjust, maintain and replace.
Models:15 x 100 mm / 28 hole:
Over Locknut Dimension:15 x 100 mm thru-axleSpoke Hole Count:28 holeFlange Distance (L/R):60.2 mm (24.4 mm/35.8 mm)Partial Bolt Circle Diameter (L/R):44 mm/44 mmManufacturer Number:E-HBM8110CX
15 x 100 mm / 32 hole:
Over Locknut Dimension:15 x 100 mm thru-axleSpoke Hole Count:32 holeFlange Distance (L/R):60.2 mm (24.4 mm/35.8 mm)Partial Bolt Circle Diameter (L/R):44 mm/44 mmManufacturer Number:E-HBM8110BXContents:1 x Shimano XT HB-M8110 front hub
