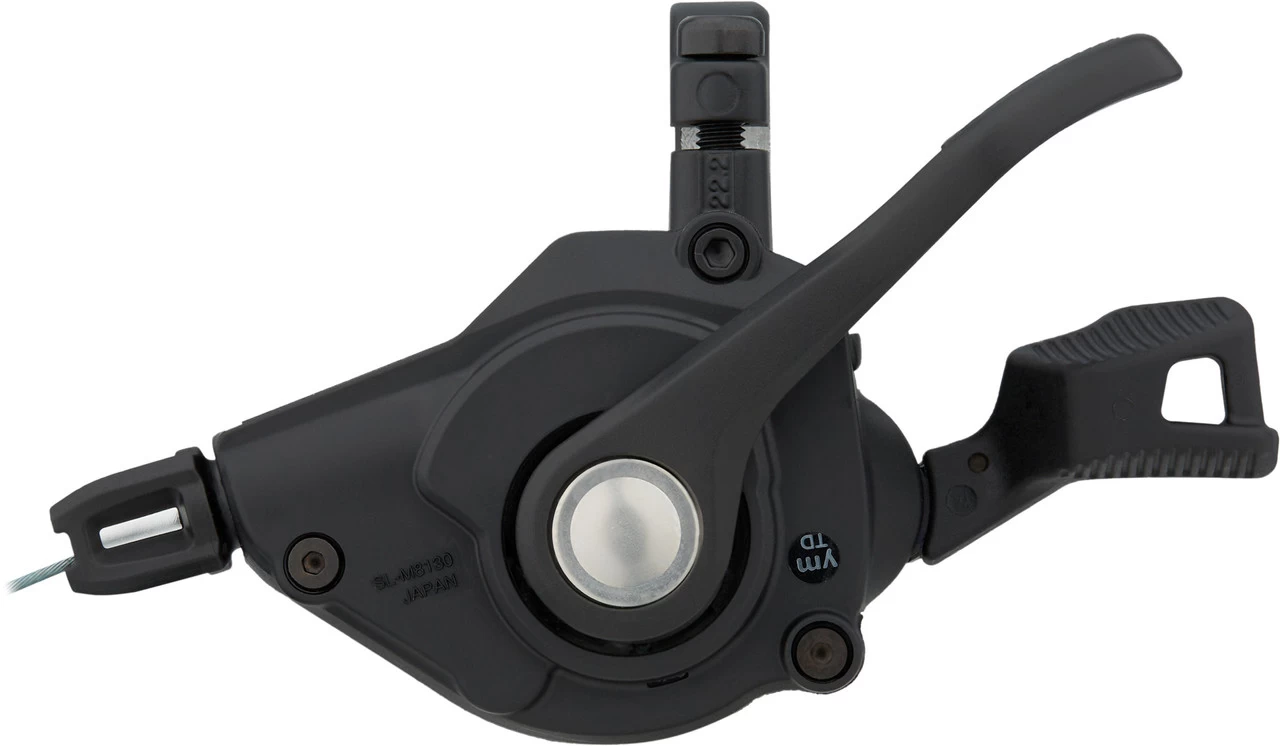

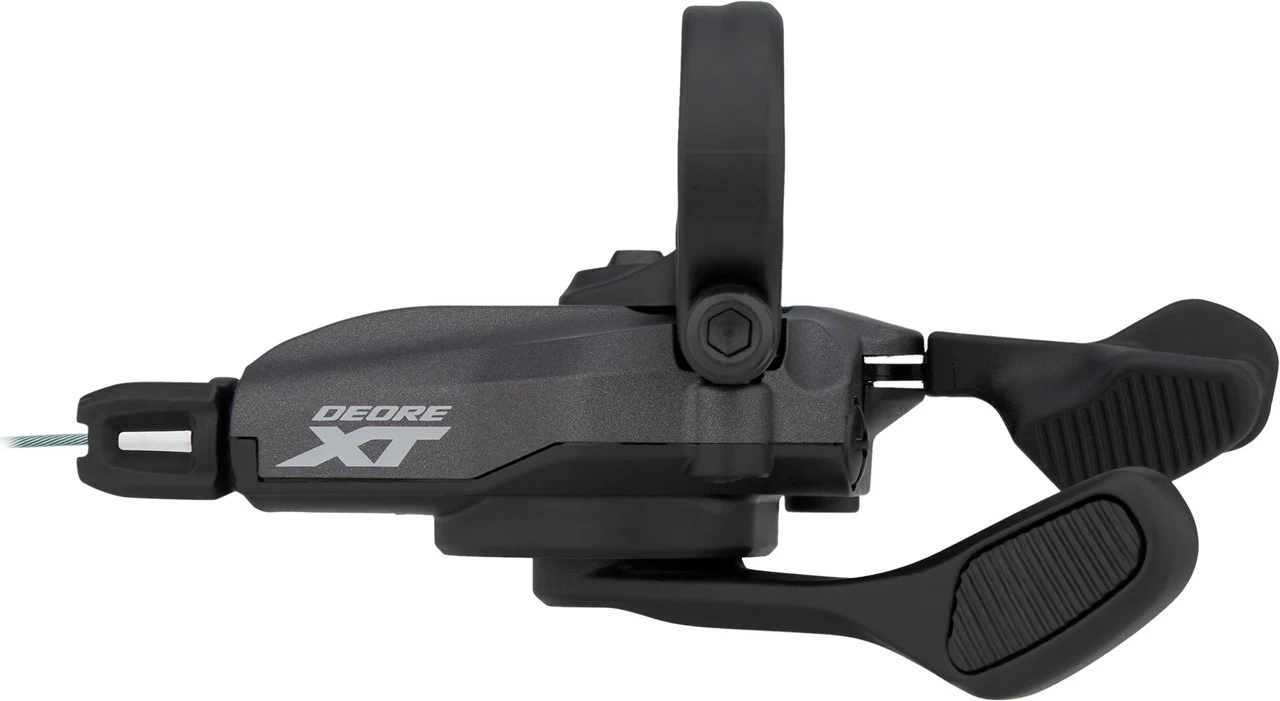

Shimano XT Linkglide Shifter SL-M8130 With Clamp 11-speed

The Shimano XT Shifter SL-M8130 for Linkglide 11-speed Drivetrains
The SL-M8130 from the Shimano XT series can be attached to the right side of the handlebars using a clamp. This is the right shifter for the Linkglide 11-speed drivetrain, which was specifically developed for e-bikes and punishing applications in the touring and MTB sector. The levers are easily accessible and easy to operate, and as with all Rapidfire Plus models, thanks to 2-Way Release technology, the shift cable can be released both by pulling with the index finger and by thumb pressure. In addition, Instant Release speeds up the gear change, which is typically fast and defined. An Optislick inner cable, which supports the function thanks to its coating, is supplied with the shifting handle. Note that there is no compatibility with non-linkglide rear derailleurs due to the different cable ratio.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.
Specifications:Series:Deore XT M8100 (Linkglide)Application:All Mountain, TouringGearing:11-speedMount:clamp (closed)Technical Information:Type:Rapidfire PlusBody Material:aluminiumLever Material:aluminium (main lever), steel, composite material (GFRP, release lever)Cable:stainless steel (Optislick)Housing:OT-SP41Adjustment Options:cable adjustCompatibility:Linkglide 11-speed:
Rear Derailleur:RD-M8130-SGS, RD-U8000, RD-U8020, RD-U6000, RD-U6020-11Cassette:CS-LG700-11, CS-LG600-11, CS-LG400-11Chain:CN-LG500, CN-HG601-11, CN-HG701-11, CN-HG901-11, CN-E8000-11E-bike Drivetrain:EP8 EP801, EP8 EP800, EP6 for MTB / Touring with mechanical 11-speed rear derailleurHandlebar Grip Outer Diameter:max. 32 mmClamp Diameter:22.2 mmFeatures:quick lever access and easy operationdefined gear changes accelerated by Instant Releasemax. number of gears per shift: 2 (main lever, rear)rubber contact surface2x bearingsOptislick inner cable with a minimal galvanic coating for more efficient cable routing and corrosion resistancepainted body and main leverstainless steel clamp boltsTechnology:Rapidfire Plus
Rapidfire Plus is a type of Shimano shift lever construction that has been common in the mountain bike sector since 1985. Two levers, the main lever and the release lever, are used instead of a twist shifter. Rapidfire Plus shift levers, as the name suggests, ensure fast shifting. In addition, depending on the model, it is possible to downshift up to three gears with one shift stroke.

2-Way-Release
With 2-Way-Release, the shifter can be pressed and pulled to shift to the smaller sprocket or chainring. This allows you to adjust the shifting process to your personal preferences. Most Rapidfire Plus shifters are equipped with 2-Way Release.

Instant Release
With Instant Release, the spring and thus the cable are released immediately when the lever is actuated, which ensures an enormously fast shifting process. The delay caused by a two-step shifting process with click and release is eliminated, so that the gear change is considerably accelerated and improved.
Models:11-speed:

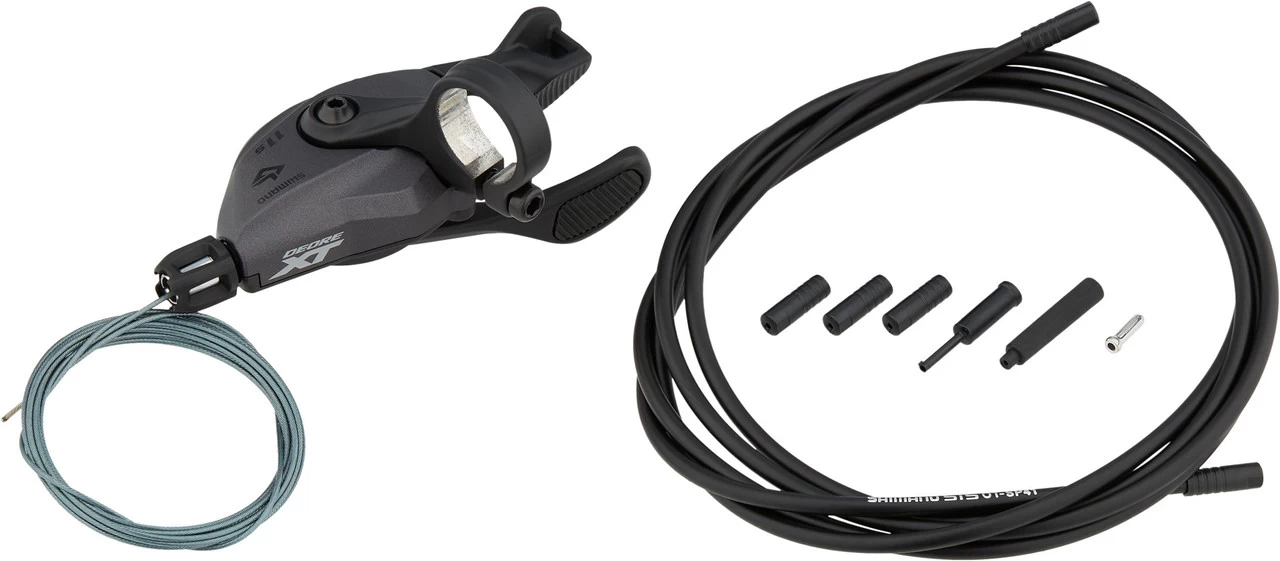

Mount:rightManufacturer Number:I-SLM8130RAPContents:1 x Shimano XT SL-M8130 shifter1 x Shimano cable (2050 mm)1 x Shimano cable housing (1880 mm)3 x 6 mm sealed end caps1 x long nose end cap
