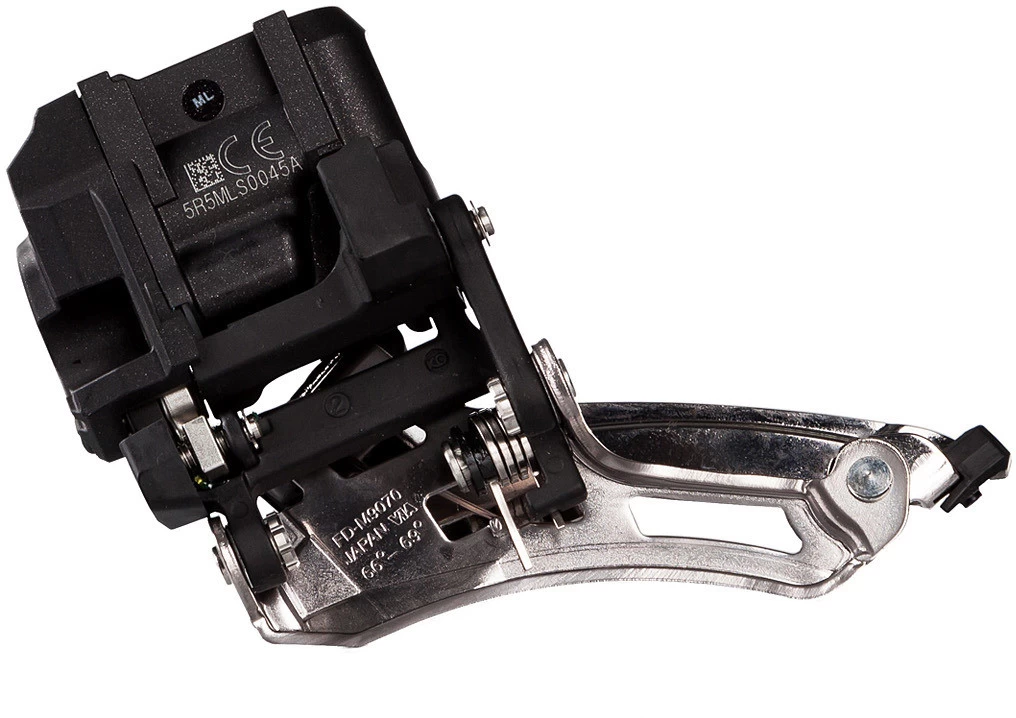

Shimano XTR Di2 FD-M9070 2-/11-speed Front Derailleur

XTR Di2 front derailleur FD-M9070 by Shimano – precise and fast shifting like never before
With the Shimano XTR Di2 front derailleur FD-M9070 and the other electronic XTR 11-speed components, Shimano broke new ground in Mountain biking. Precise and fast shifting like never before, even at the push of a button, that means XTR Di2 and that’s what this 2x front derailleur stands for. Even under load it works twice as powerful as FD-M980. FD-M9070 has an auto trim function to prevent chain wear and communicates automatically with the rear derailleur (Synchro Shift) so you always find the right gear. The firmware can be kept up-to-date via the E-Tube platform. Adapters for mounting the front derailleur (low clamp, high clamp, direct mount, E-type) are available separately.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of batteries and electrical equipment can be found here.
Specifications:Series:XTR Di2 M9050Application:Cross Country, All Mountain, EnduroGearing:2x (combined w/ 11-speed)Chainstay Angle:66-69°Chainline:48.8 mm (51.8 mm for B-cranks)Chainring Size (max.):34-38 teethCapacity:10-toothMovement:down-swingMount:high clamp, low clamp w/ SM-FD905 adapter, E-type (bottom bracket mount, low-direct) w/ SM-FD905-E adapter, direct mount (high-direct) w/ M-FD905-D adapter (not incl.)Clamp Diameter:28.6 mm, 31.8 mm, 34.9 mm (with adapter)Compatibility:HG-X11 chainsTechnical Information:Outer Body Material:AluminiumInner Body Material:AluminiumCage Material:AluminiumNumber of E-Tube Ports:1Compatibility:Power Cable:EW-SD50 (1 x connection)Shifter:SW-M9050, SW-M8050Crank:FC-M9000-2, FC-M9020-2, FC-M9020-B2*, FC-M8000-2, FC-M8000-B2*, FC-M7000-2, FC-M7000-B2*, FC-M5100-2, FC-M5100-B2*, FC-MT700-2, FC-MT700-B2*, FC-MT600-2, FC-MT600-B2*Chain:CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500Mounting Adapter:SM-FD905
* direct Mount and E-Type only
Features:more powerful shifting than mechanical XTR (25% more power than M9000): reliable operation even under loadcomputer-controlled auto trim function: optimised cage designShimano Synchronized Shift: system communication with the rear derailleurworks reliably under all conditionsversatile mounting optionsseven joint bushingspainted parallelogram, nickel-plated cage platescompatible with B-cranks that have a chainline 3 mm further out (with direct mount/E-type adapter, specifically designed frame required)E-Tube project ensures firmware updatesTechnology:Digital Integrated Intelligence (Di2)
Di2 systems are the electronic shifting systems from Shimano. They are based on the SEIS, the Shimano Electronic Intelligent System, which takes over the index shifting function from the mechanical components, only via power cables or radio signals and not via a Bowden cable. Shifting is done by simply pressing a button. This has the advantage that no great effort is required, your concentration on the ride is not disturbed and operation is easy even with cold hands. In addition, the electronic gear changes are very fast and highly precise. There is also no risk of a defective circuit due to dirty cables or other problems. You can adjust individual settings via the E-Tube Project, such as adjusting the shifting speed, the number of shifting operations per button press or the Synchro or Semi-Synchro shifting function. Shimano offers an app for this purpose. Gear maintenance and firmware updates are also done via E-Tube, with the bike connected to a PC running the appropriate E-Tube software for more extensive workshop work.

Shimano Synchronized Shift
Shimano’s synchronised shifting function is a shifting mode that automatically matches the Di2 rear derailleur and Di2 front derailleur. It is activated either via the E-Tube platform or via the rear derailleurs with a function button. Synchro Shift means that the front derailleur automatically selects a suitable gear depending on the position of the rear derailleur, while Semi-Synchro Shift means that a suitable rear derailleur position is automatically set when you operate the front derailleur. This gives you the advantage that you only have to concentrate on one side of the shifting process and are not thrown off-rhythm by sudden unfavourable changes to the gear ratio.
Manufacturer Number:I-FDM9070
Contents:1 x Shimano XTR Di2 FD-M9070 front derailleurOrder Together:adapter for front derailleur installation
