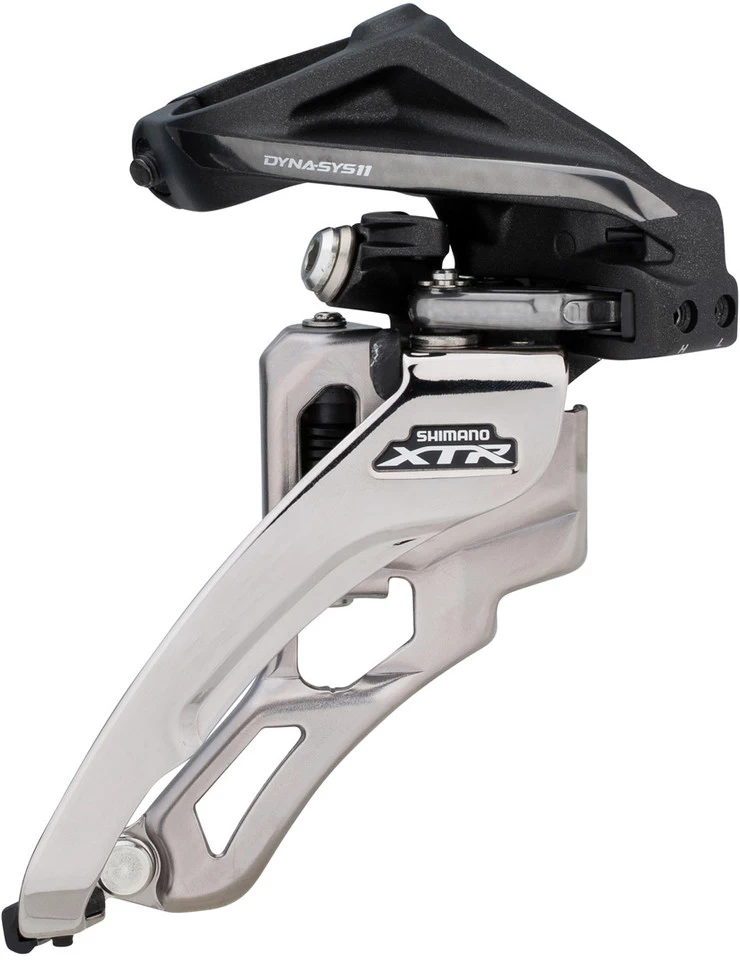

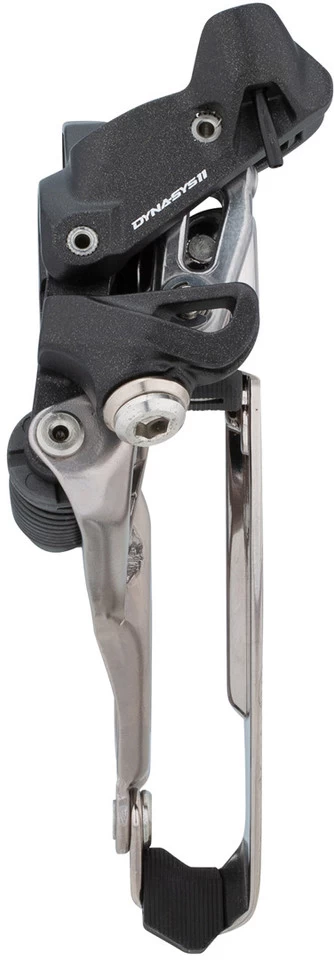

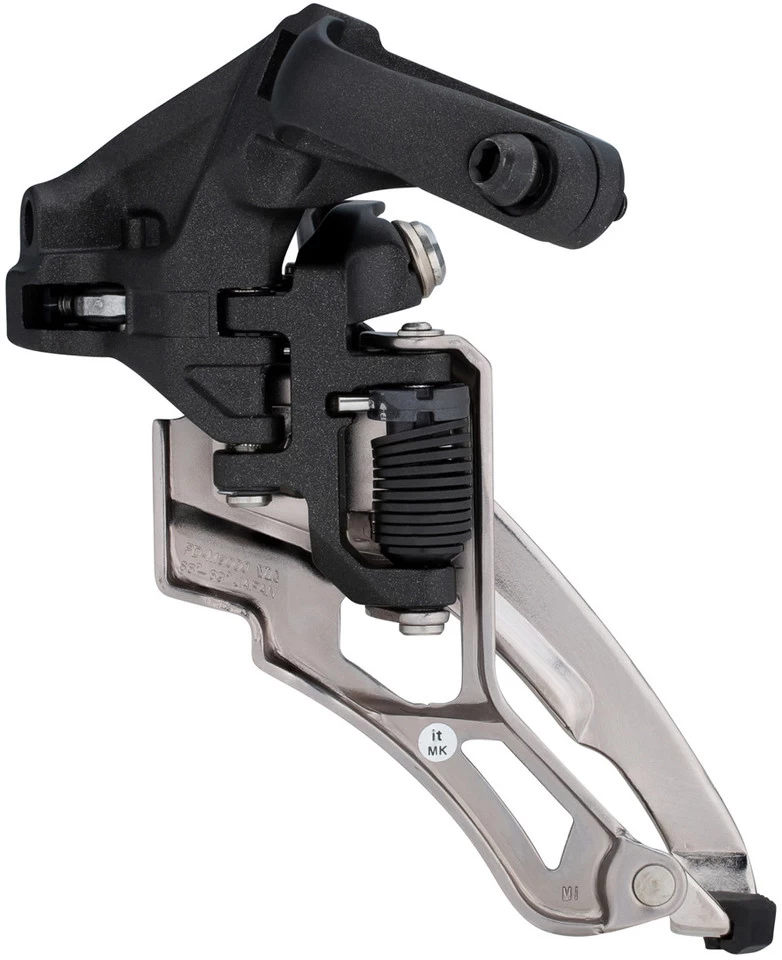

Shimano XTR FD-M9000 3-/11-speed Front Derailleur

The XTR front derailleur FD-M9000 by Shimano – more powerful and easier to use
Thanks to Shimano XTR FD-M9000 front derailleurs, XTR 3×11 riders benefit from the advantages of side-swing technology, which further enhances the already high performance of the Dyna-Sys11 system. With side-swing and front-pull cable routing, both shifting efficiency and operating forces are significantly improved. The new design also results in more distance between the seat tube and the tyre. The FD-M9000 is completely made of aluminium and therefore weighs only between 100 and 130 grams. Choose between the mounting options high clamp, low clamp, direct mount and E-type.

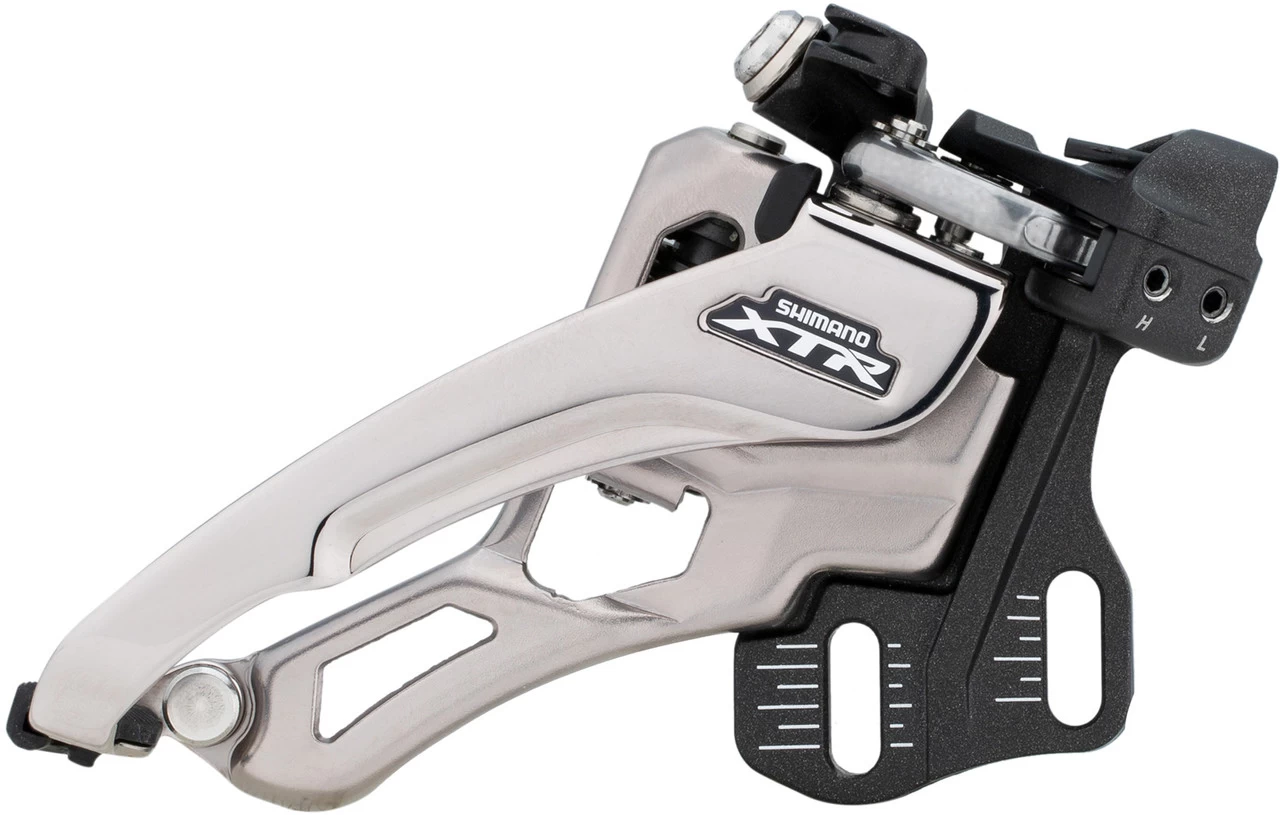

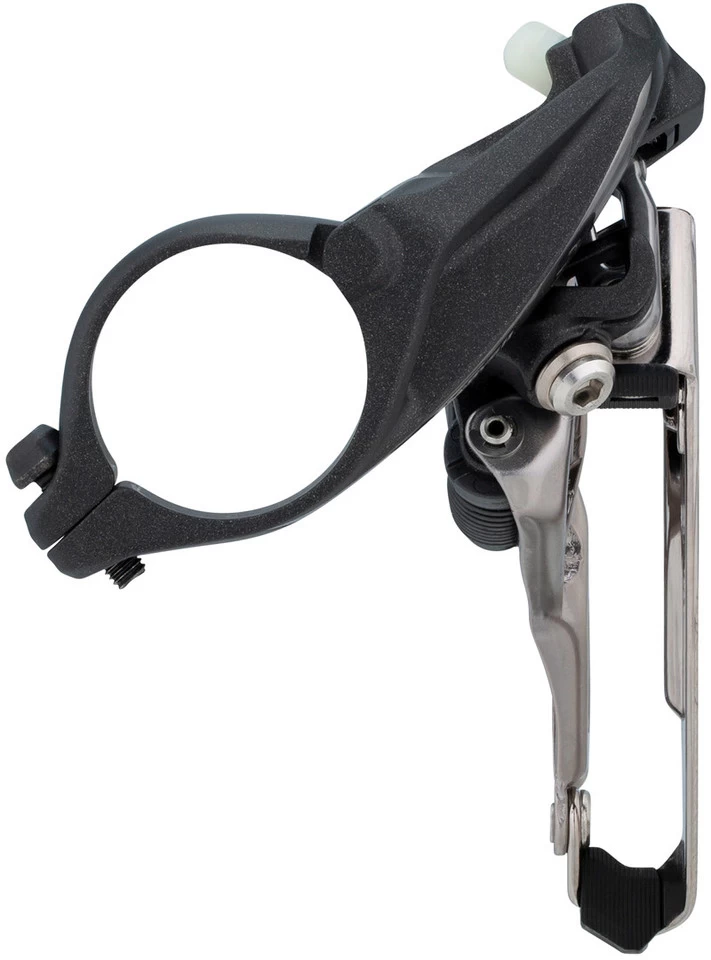

Specifications:Series:XTR M9000Application:Cross Country, All Mountain, EnduroGearing:3x (combined w/ 11-speed)Chainstay Angle:66-69°Chainline:50 mmChainring Size (max.):40-toothCapacity:18-toothDifference Between Large & Middle Chainring:10-toothCable Routing:front pullMovement:Side-SwingMount:high clamp, low clamp, E-type* (bottom bracket mount, low-direct), direct mount (high-direct)Clamp Diameter:34.9 mm w/ adapter 31.8 mm / 28.6 mmCompatibility:HG-X11 chains

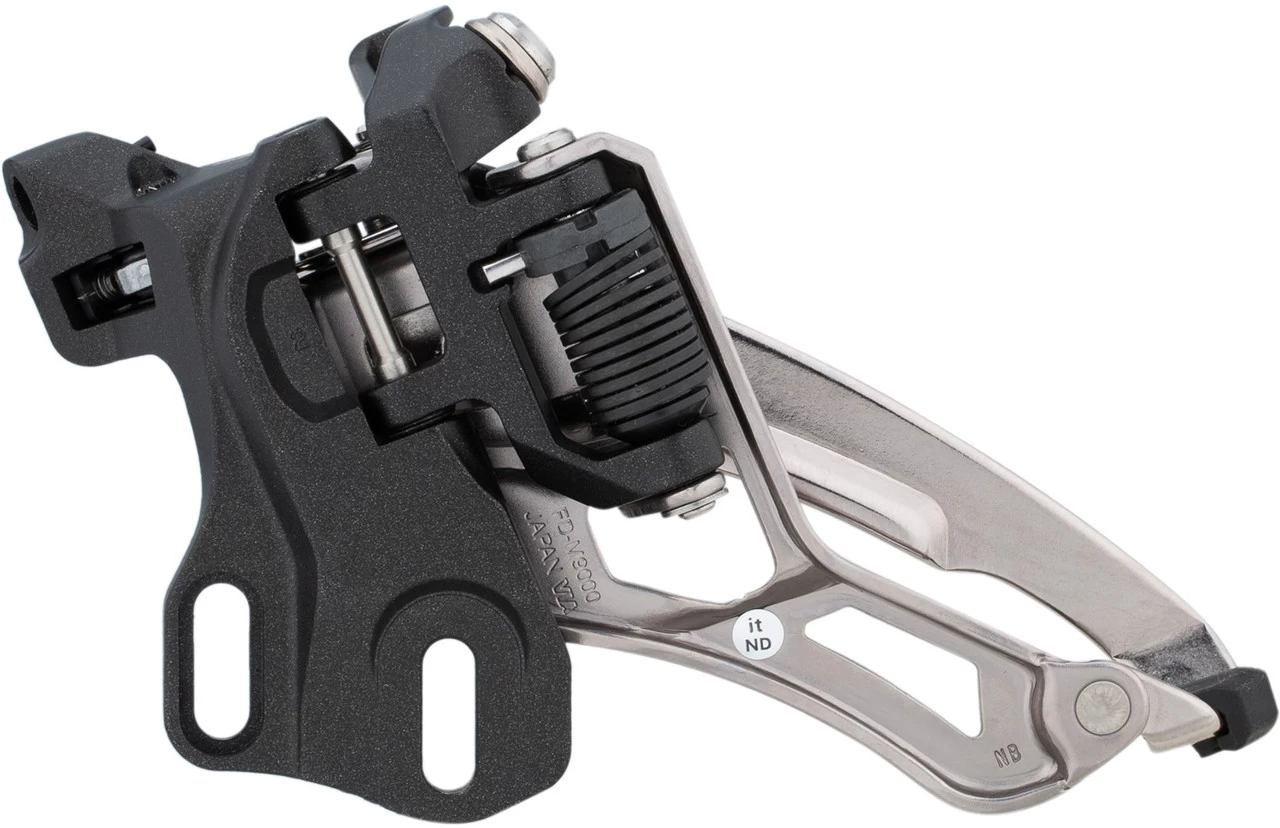

Frames must be made for E-type mounts, retrofitting an E-type retaining plate is not possible.
Technical Information:Outer Body Material:AluminiumInner Body Material:AluminiumCage Material:AluminiumCompatibility:Shifter:SL-M9000, SL-M8000, SL-M7000Crank:FC-M9020-3, FC-M8000-3Chain:CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500Features:more tyre clearance for large wheelsefficient cable routing for easy gear changescompatible with traditional mounting optionssix joint bushingspainted parallelogram, nickel-plated cage platesTechnology:Dyna-Sys11
Dyna-Sys11 is the name of the 11-speed shifting system for MTBs from Shimano. The focus lies on maintaining the pedalling rhythm both on flat ground and on uphill segments. The gear ratios are selected so that you make efficient progress in the most frequently used gear range and do not have to shift gears as much (” Rhythm Step” ).

Side-Swing
The Shimano Side-Swing front derailleurs are controlled from the front (Front-Pull), which allows for much more efficient cable routing. This significantly improves shifting performance, especially when shifting to the large chainring – with lower operating forces. Other advantages include increased tyre clearance thanks to the slimmed-down design and noise reduction thanks to the optimised chainstay angle. In addition, Side-Swing technology favours the construction of frames with shorter chainstays, which simplify the control of the bike.

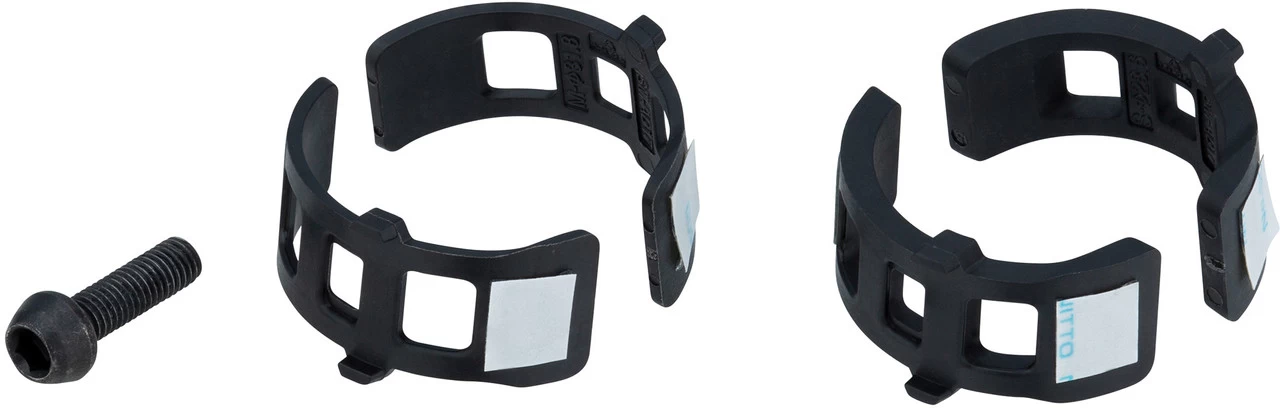

Manufacturer Numbers:high clamp / side-swing / front-pull:I-FDM9000HX6low clamp / side-swing / front-pull:I-FDM9000LX6direct mount / side-swing / front-pull:I-FDM9000D6E-type / side-swing / front-pull:I-FDM9000E6XContents:1 x Shimano XTR FD-M9000 front derailleur1 x 28.6 mm adapter (only clamp model)1 x 31.8 mm adapter (only clamp model)
