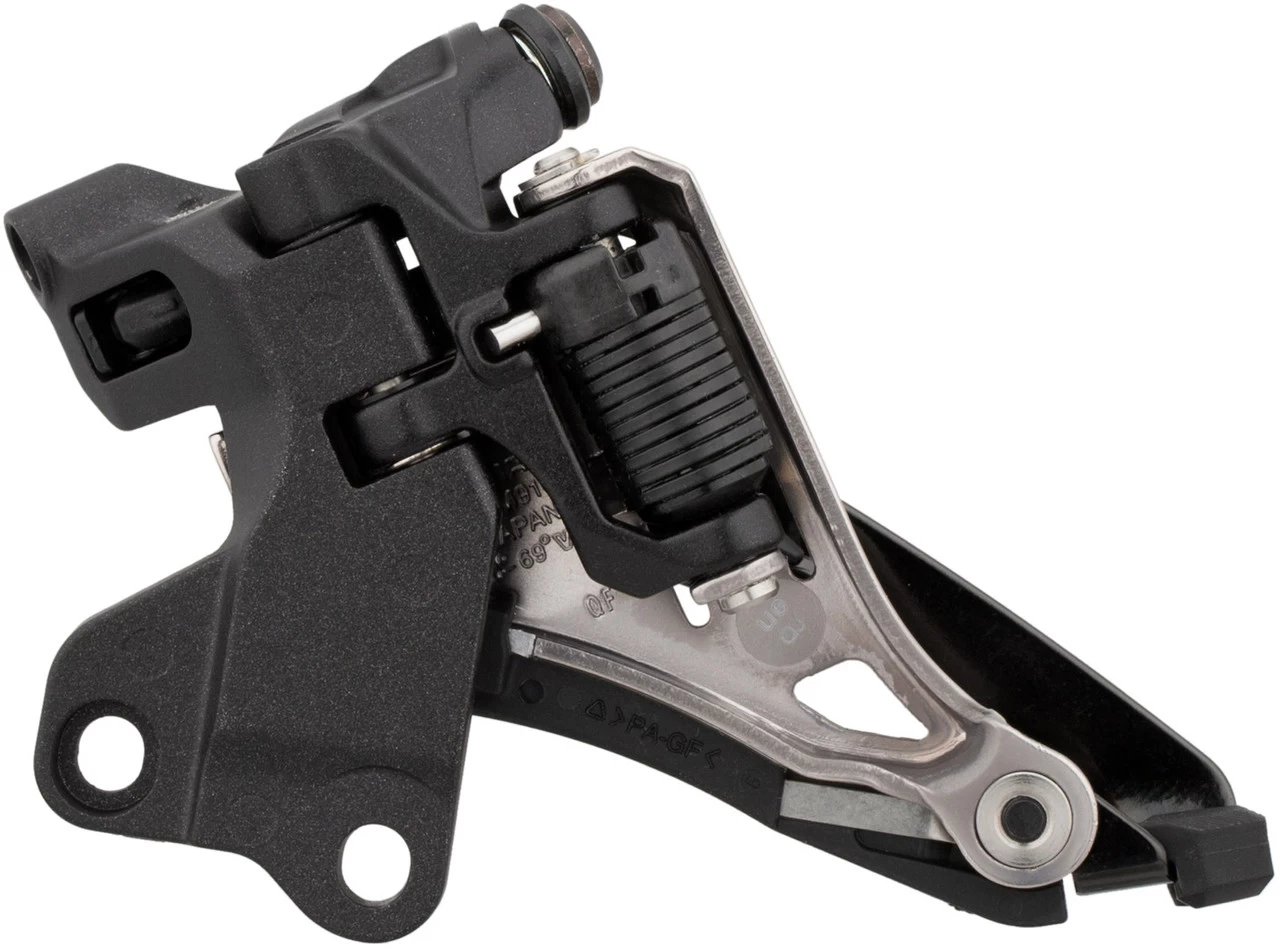

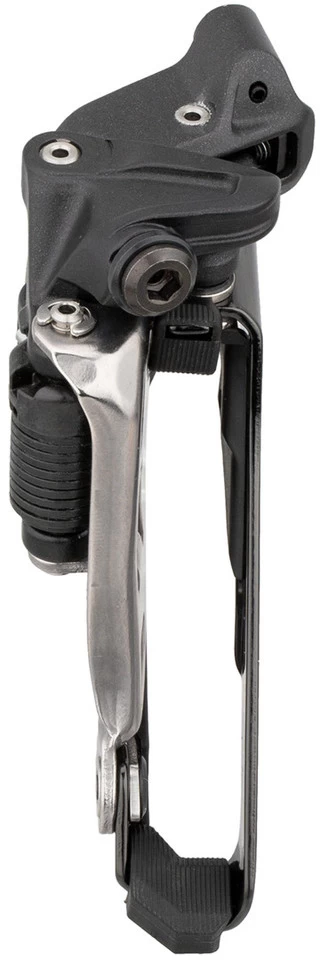

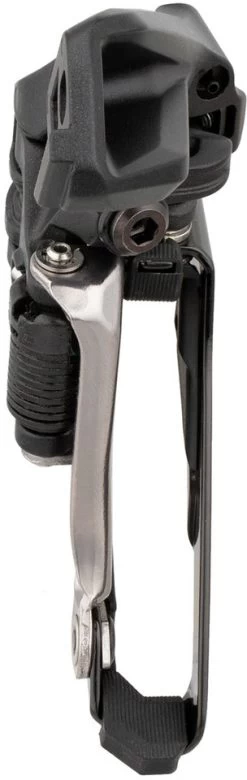

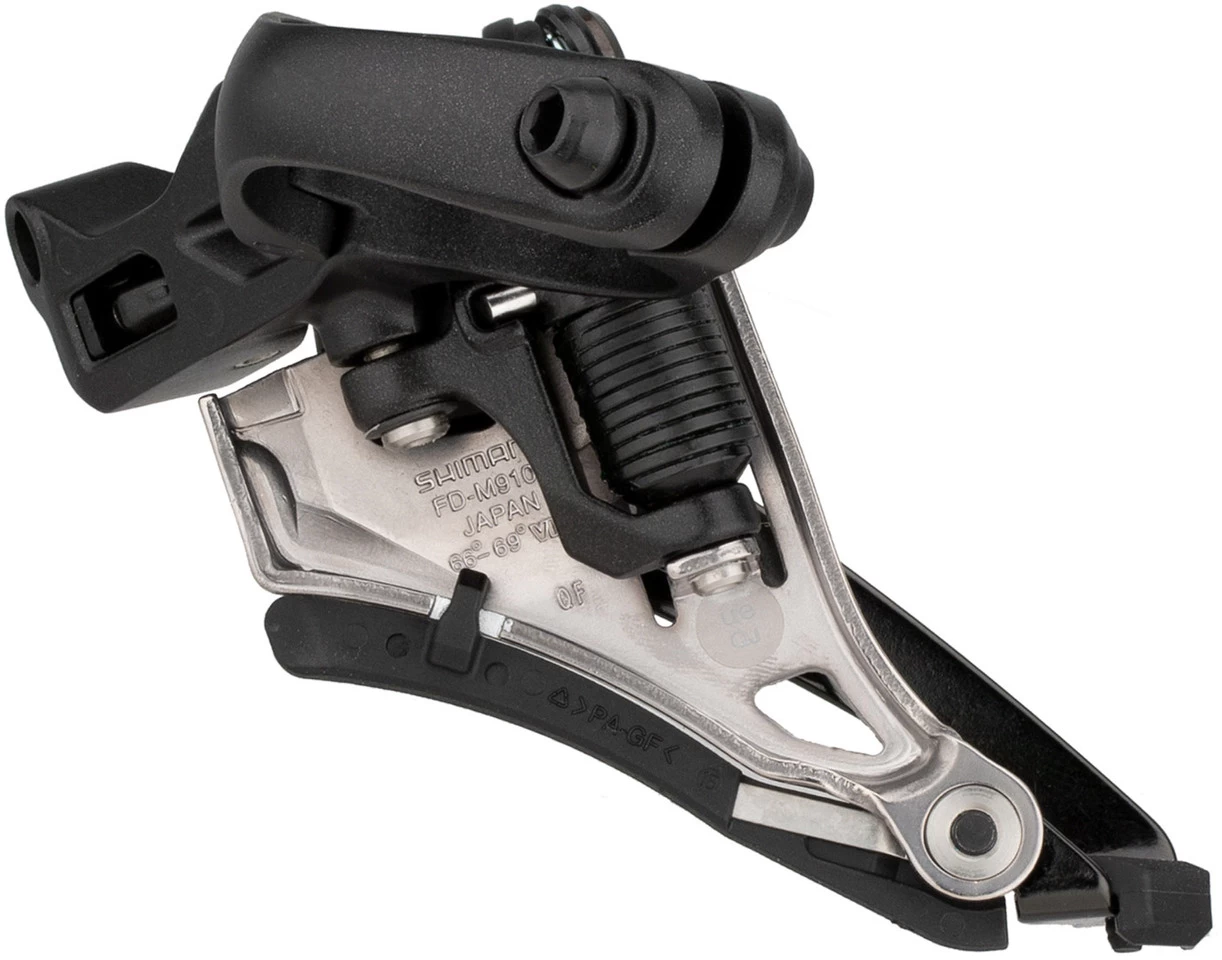

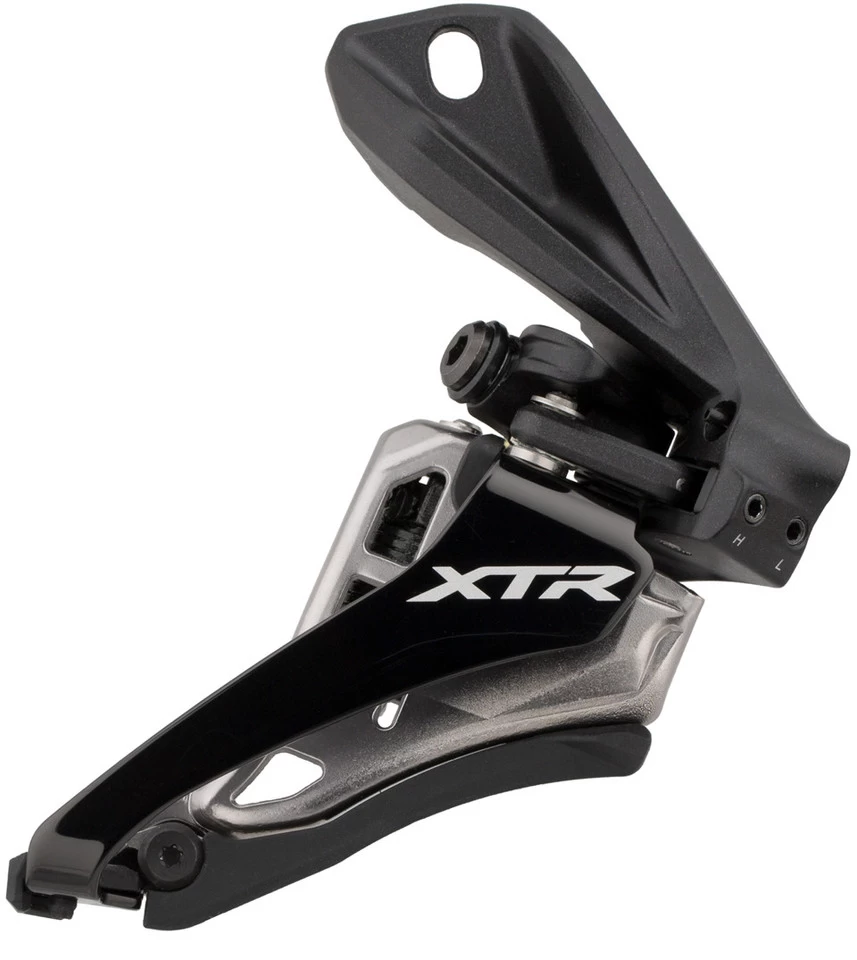

Shimano XTR FD-M9100 2-/12-speed Front Derailleur

The XTR front derailleur FD-M9100 by Shimano – compatible with different chainlines
The Shimano XTR FD-M9100 front derailleur for 2×12-speed drivetrains impresses with its special side-swing design and the associated front-pull routing with large tyre clearance, maximum shifting efficiency and low operating forces. It can be used for cranks with standard chainlines as well as for cranks with chainlines 3 mm further out. In addition to an E-type and a direct mount version, there is also a version with a mid-clamp position to choose from.
Specifications:Series:XTR M9100Application:Cross Country, EnduroGearing:2x (combined w/ 12-speed)Chainstay Angle:66-69°Chainline:48.8 mm (for 142 mm over locknut dimension), 51.8 mm (for 148 mm over locknut dimension)Chainring Size (max.):38-toothCapacity:10-toothCable Routing:front pullMovement:Side-SwingMount:mid clamp, E-Type* (bottom bracket mount, low-direct), direct mount (high-direct)Clamp Diameter:34.9 mm w/ adapter 31.8 mm / 28.6 mmCompatibility:HG 12-speed chains
Frames must be made for E-type mounts, retrofitting an E-type retaining plate is not possible.
Technical Information:Outer Body Material:AluminiumInner Body Material:AluminiumCage Material:AluminiumCompatibility:MTB 2×12-speed:
Shifter:SL-M9100, SL-M8100, SL-M7100Crank:
142 mm over locknut dimension: FC-M9100-2, FC-M8100-2, FC-M7100-2, FC-MT610-2148 mm over locknut dimension: FC-M9120-B2, FC-M8120-B2, FC-M7120-B2, FC-MT610-B2Chain:CN-M9100, CN-M8100, CN-M7100, CN-M6100Features:smooth shifting due to the side-swing mechanism6 joint bushingspainted parallelogram, plated cage platescompatible with B-cranks with 3 mm outer chainlineTechnology:Side-Swing
The Shimano Side-Swing front derailleurs are controlled from the front (Front-Pull), which allows for much more efficient cable routing. This significantly improves shifting performance, especially when shifting to the large chainring – with lower operating forces. Other advantages include increased tyre clearance thanks to the slimmed-down design and noise reduction thanks to the optimised chainstay angle. In addition, Side-Swing technology favours the construction of frames with shorter chainstays, which simplify the control of the bike.
Manufacturer Numbers:mid clamp / side-swing / front-pull:I-FDM9100MX6direct mount / side-swing / front-pull:I-FDM9100D6E-type / side-swing / front-pull:I-FDM9100E6Contents:1 x Shimano XTR FD-M9100 front derailleur1 x 28.6 mm adapter (only clamp model)1 x 31.8 mm adapter (only clamp model)
