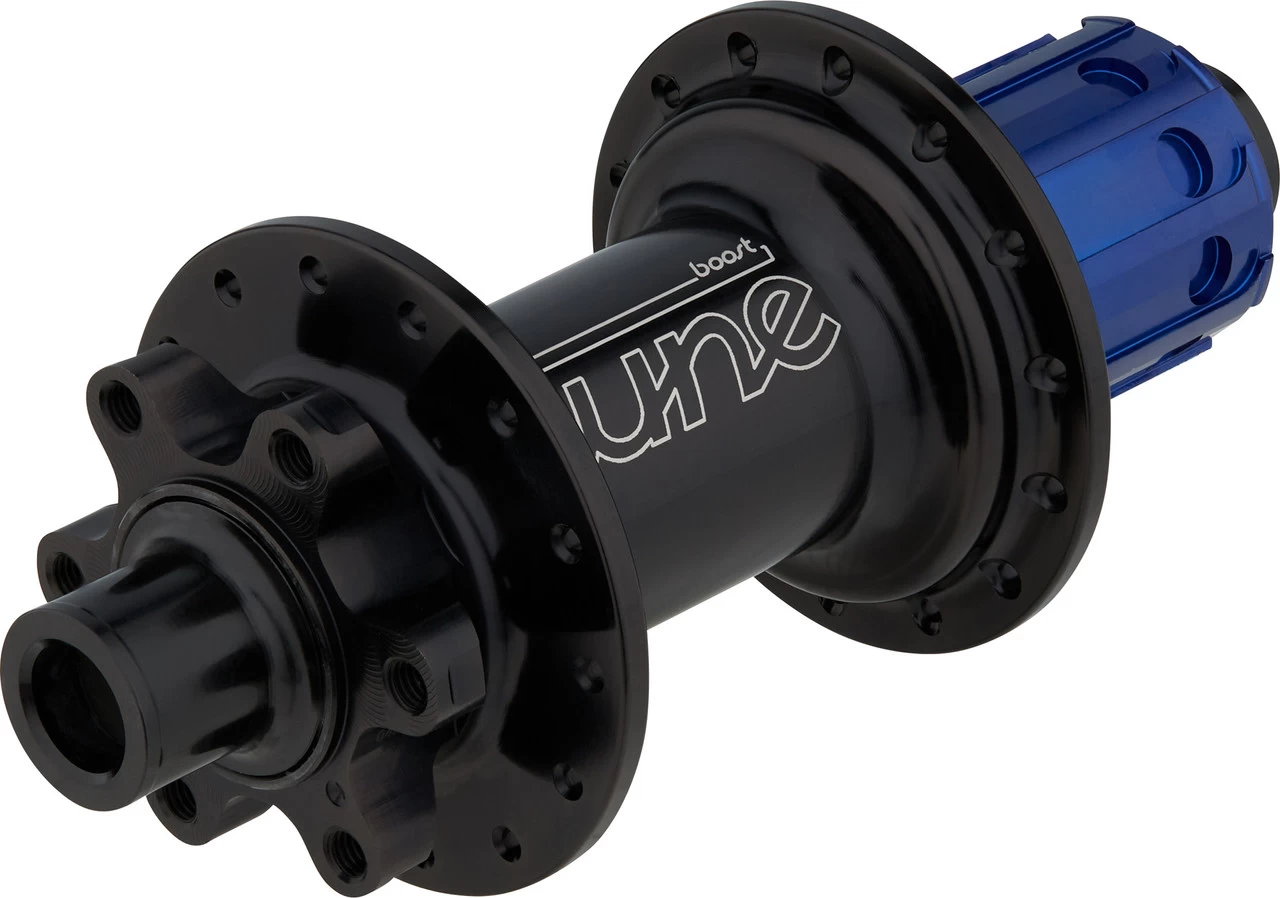

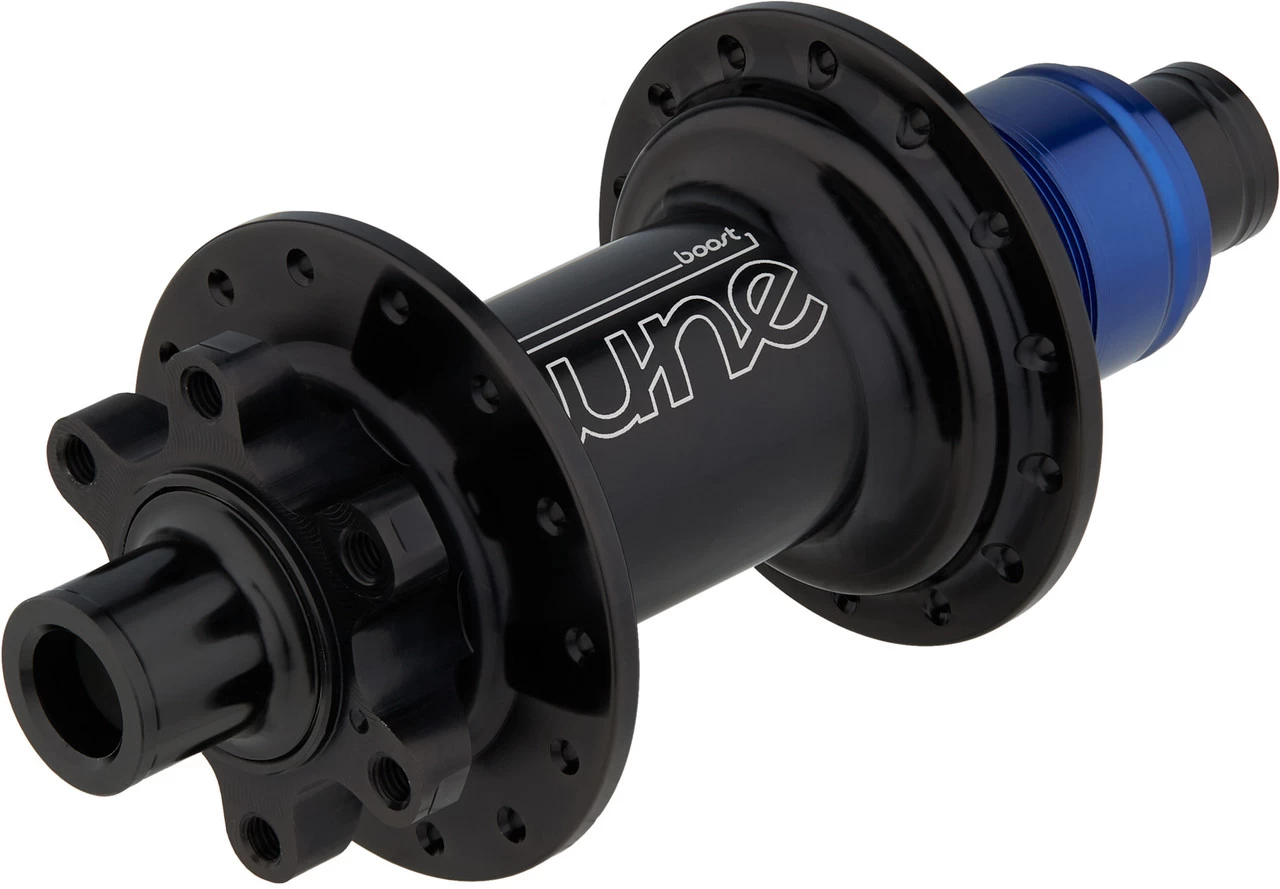

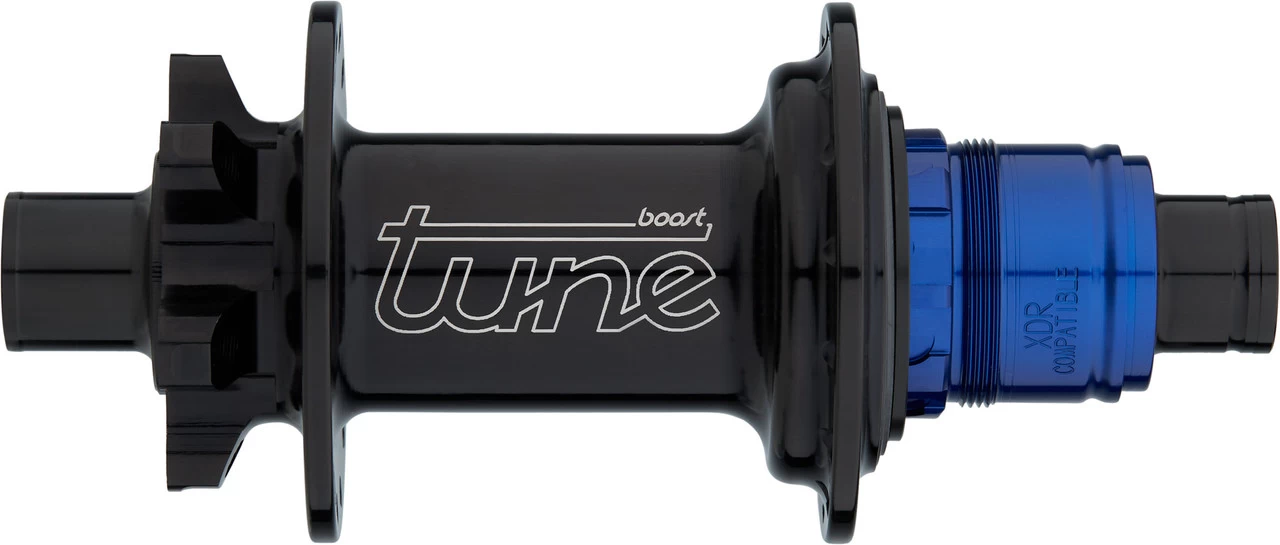

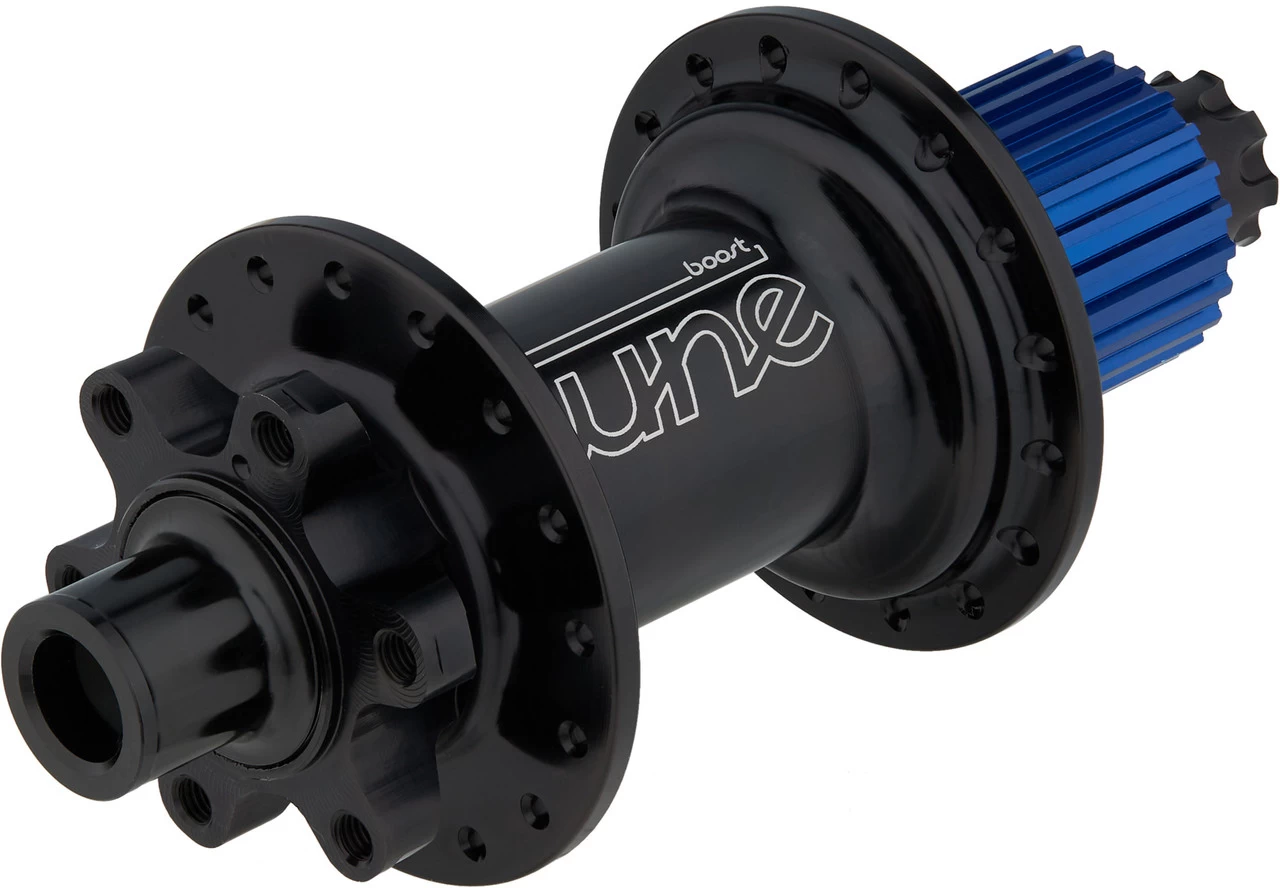

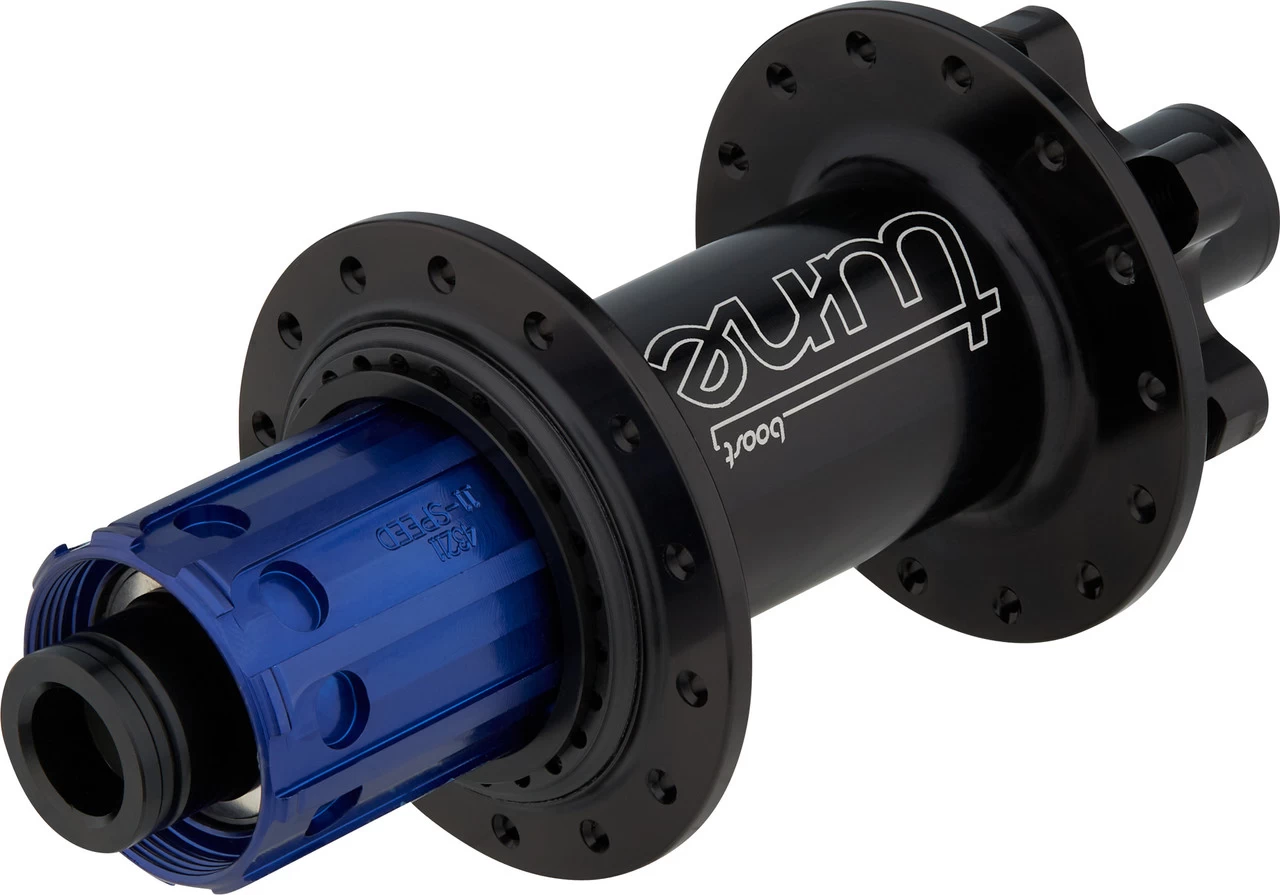

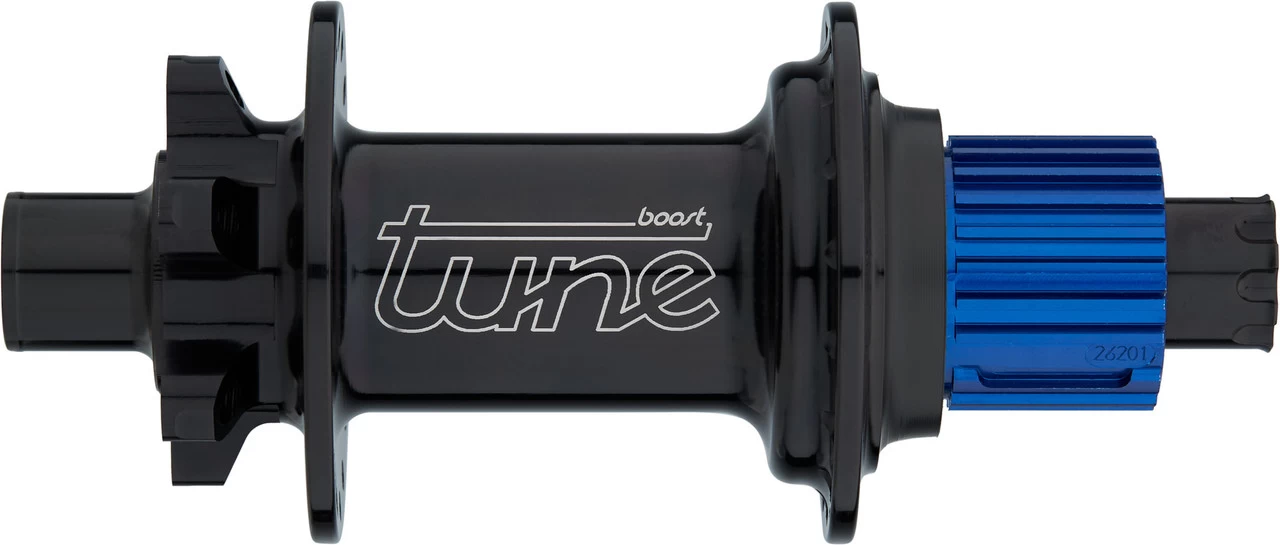

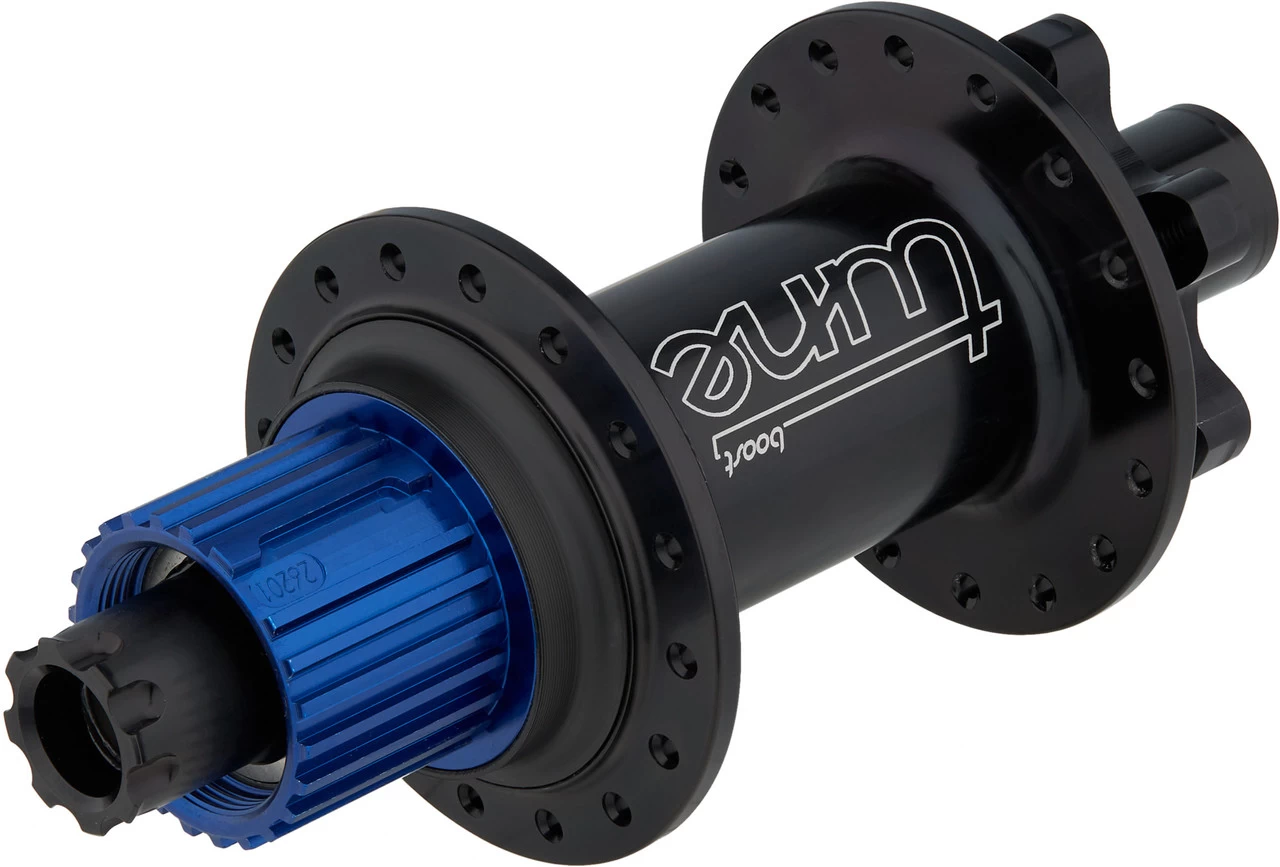

Tune ClimbHill Boost 6-bolt Disc Rear Wheel Hub – 2022 Model

Application:All Mountain, Enduro, Cross CountryBrake Type:6-bolt discWheel Standard:BoostFreehub Body Type:3T Sky with 3 titanium pawlsTechnical Information:Body Material:aluminiumBearings:standard ballSpoke Hole Diameter:2.4 mmApproved For:Weight Limit:100 kg rider weight, 115 kg system weightSpoke Tension (max.):1100 NmFeatures:all-rounder hub for mountain bikes with Boost dimensionsmount for 6-bolt brake rotors3T Sky freehub with titanium pawlsCNC-milled hub body made of anodised aluminiumfor triple-crossed lacingrecommended spokes: Sapim CX-Ray, Sapim D-LightModels:12 x 148 mm / 28 hole / Shimano:
Over Locknut Dimension:12 x 148 mm thru-axleSpoke Hole Count:28 holeFreehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:The assembly of 11-speed MTB cassettes on a Shimano Road rotor requires a 1.85 mm spacer.Flange Distance (L/R):61 mm (37.4 mm/23.6 mm)Partial Bolt Circle Diameter (L/R):55.5 mm/55.5 mmManufacturer Number:BHNCHBoo28BeaSt12mmAluHg10113tbck
12 x 148 mm / 28 hole / Shimano Micro Spline:
Over Locknut Dimension:12 x 148 mm thru-axleSpoke Hole Count:28 holeFreehub:Shimano Micro SplineGearing:12-speedFlange Distance (L/R):61 mm (37.4 mm/23.6 mm)Partial Bolt Circle Diameter (L/R):55.5 mm/55.5 mmManufacturer Number:BHNCHBoo28BeaSt12mmAluMS3tbck
12 x 148 mm / 28 hole / SRAM XDR:
Over Locknut Dimension:12 x 148 mm thru-axleSpoke Hole Count:28 holeFreehub:SRAM XDRGearing:11-/12-speedNote:A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub body.Flange Distance (L/R):61 mm (37.4 mm/23.6 mm)Partial Bolt Circle Diameter (L/R):55.5 mm/55.5 mmManufacturer Number:BHNCHBoo28BeaSt12mmAluXDXDR3tbck
12 x 148 mm / 32 hole / Shimano:
Over Locknut Dimension:12 x 148 mm thru-axleSpoke Hole Count:32 holeFreehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:Assembly of 11-speed MTB cassettes on a Shimano Road rotor requires a 1.85 mm spacer.Flange Distance (L/R):61 mm (37.4 mm/23.6 mm)Partial Bolt Circle Diameter (L/R):55.5 mm/55.5 mmManufacturer Number:BHNCHBoo32BeaSt12mmAluHg10113tbck
12 x 148 mm / 32 hole / Shimano Micro Spline:
Over Locknut Dimension:12 x 148 mm thru-axleSpoke Hole Count:32 holeFreehub:Shimano Micro SplineGearing:12-speedFlange Distance (L/R):61 mm (37.4 mm/23.6 mm)Partial Bolt Circle Diameter (L/R):55.5 mm/55.5 mmManufacturer Number:BHNCHBoo32BeaSt12mmAluMS3tbck
12 x 148 mm / 32 hole / SRAM XDR:
Over Locknut Dimension:12 x 148 mm thru-axleSpoke Hole Count:32 holeFreehub:SRAM XDRGearing:11-/12-speedNote:A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub body.Flange Distance (L/R):61 mm (37.4 mm/23.6 mm)Partial Bolt Circle Diameter (L/R):55.5 mm/55.5 mmManufacturer Number:BHNCHBoo32BeaSt12mmAluXDXDR3tbckContents:1 x tune ClimbHill Boost 6-bolt Disc hub1 x spacer (only for version with Shimano or SRAM XDR freehub)
