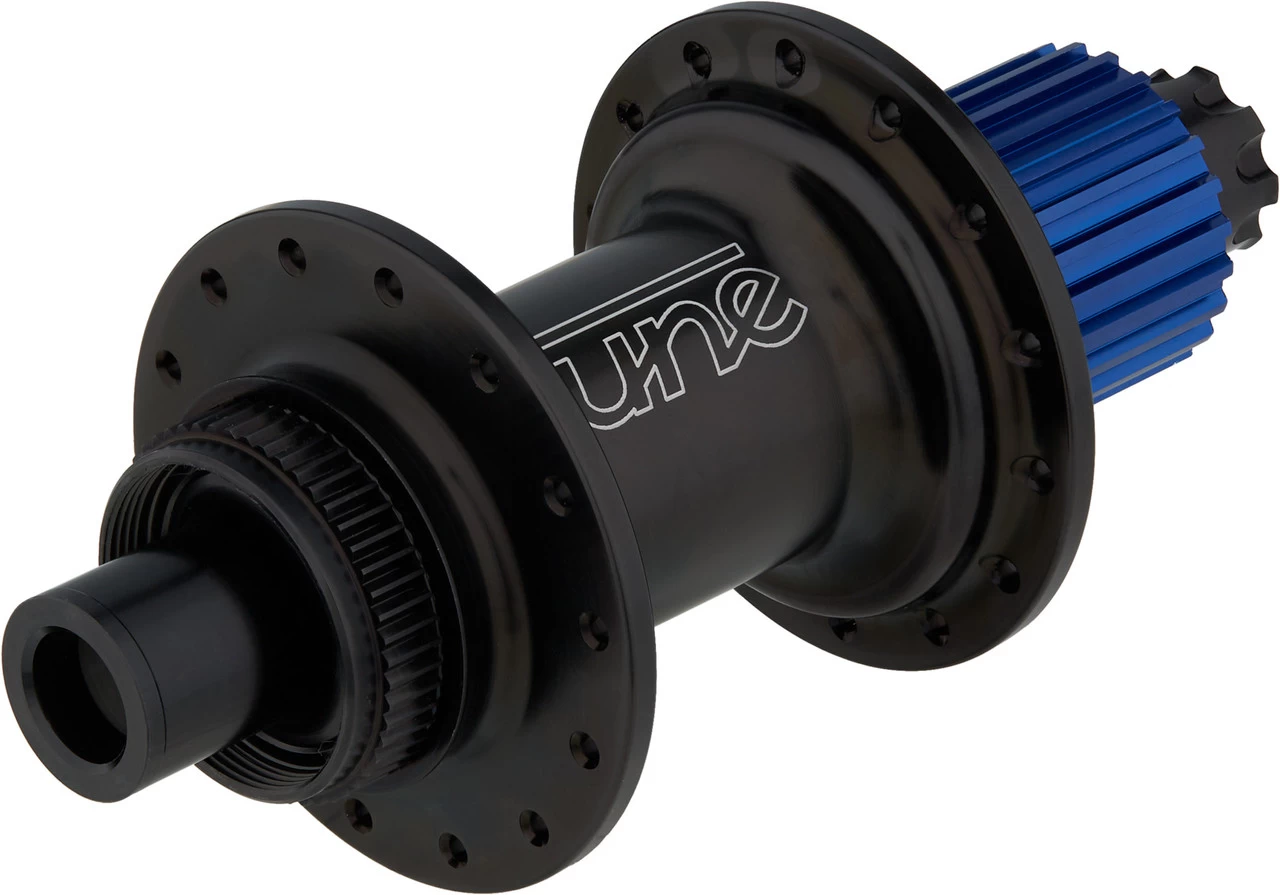

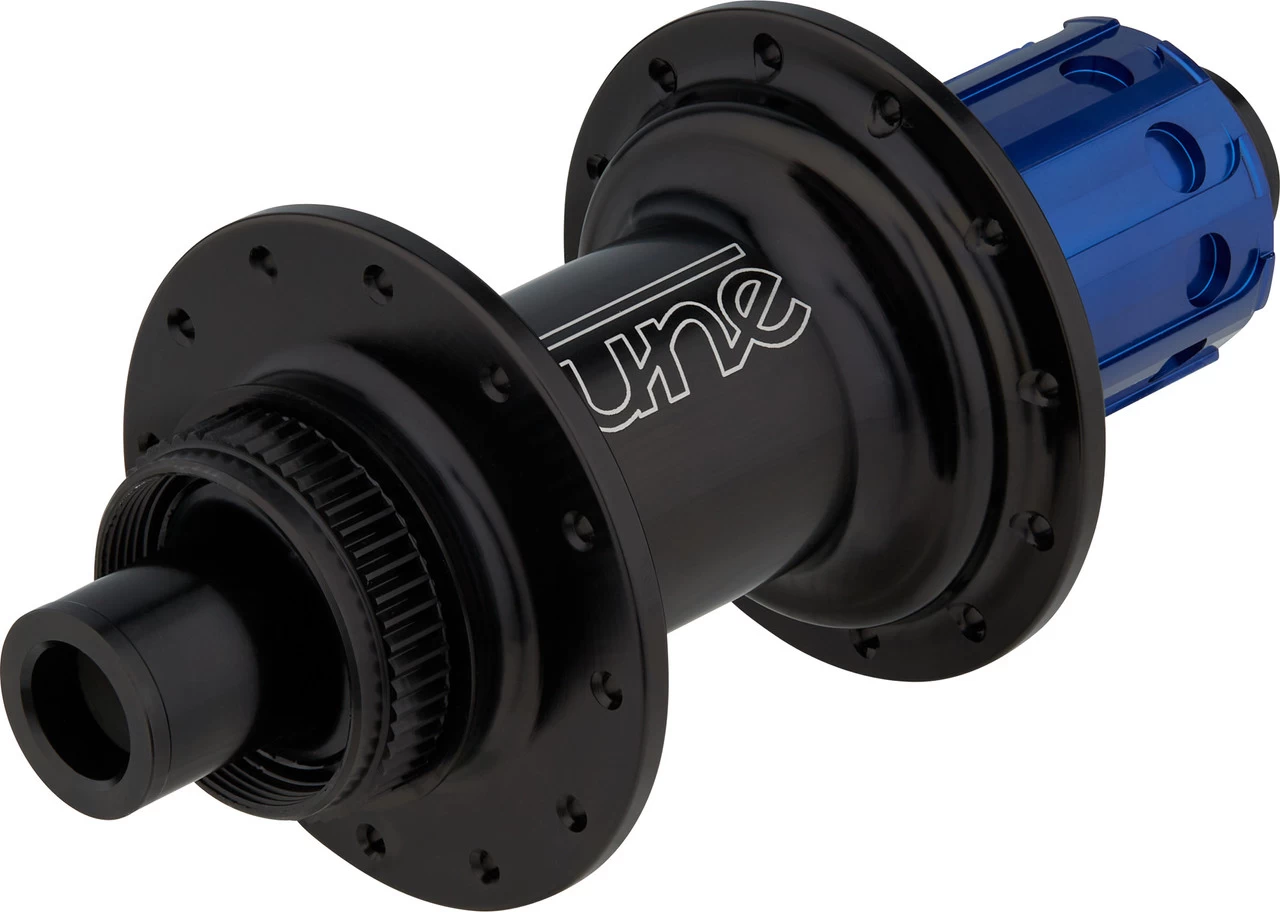

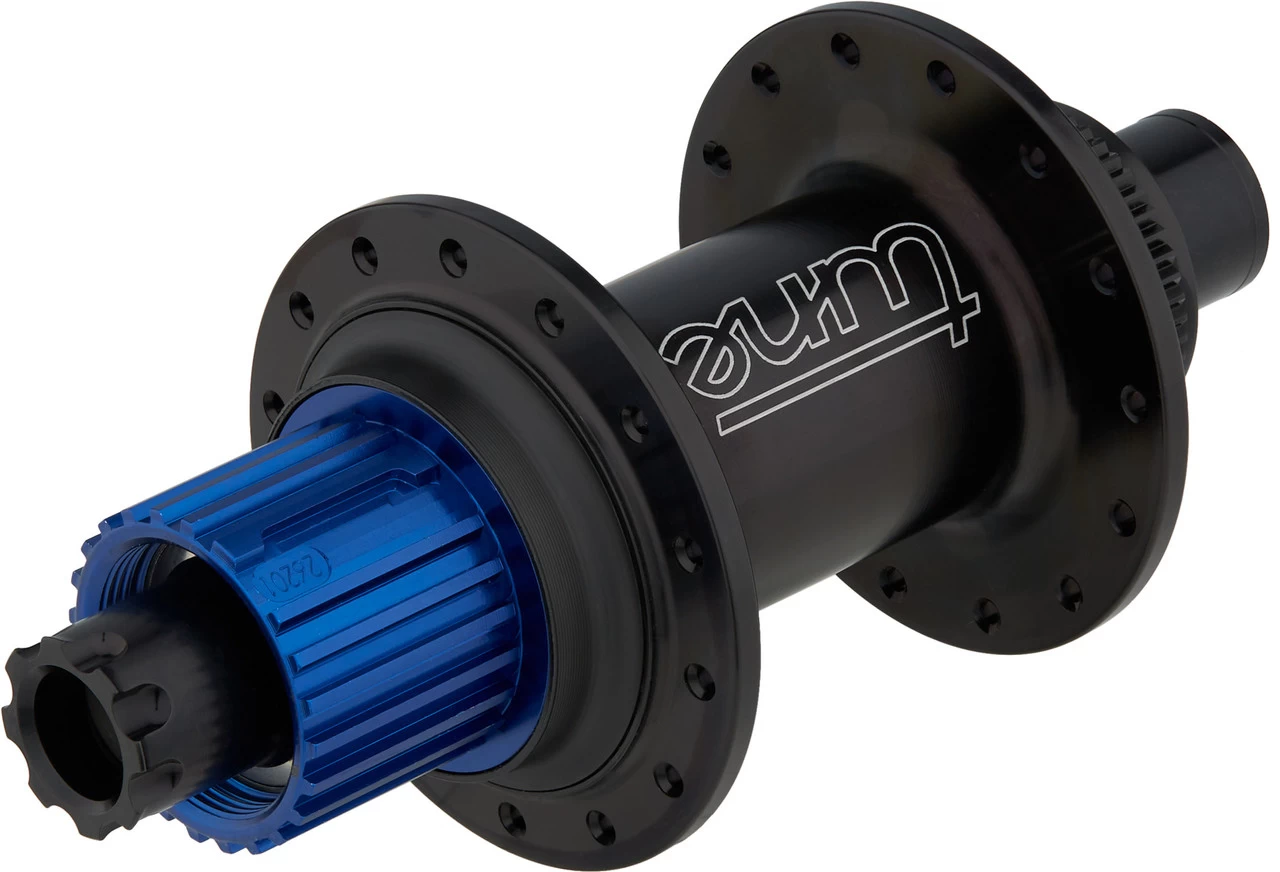

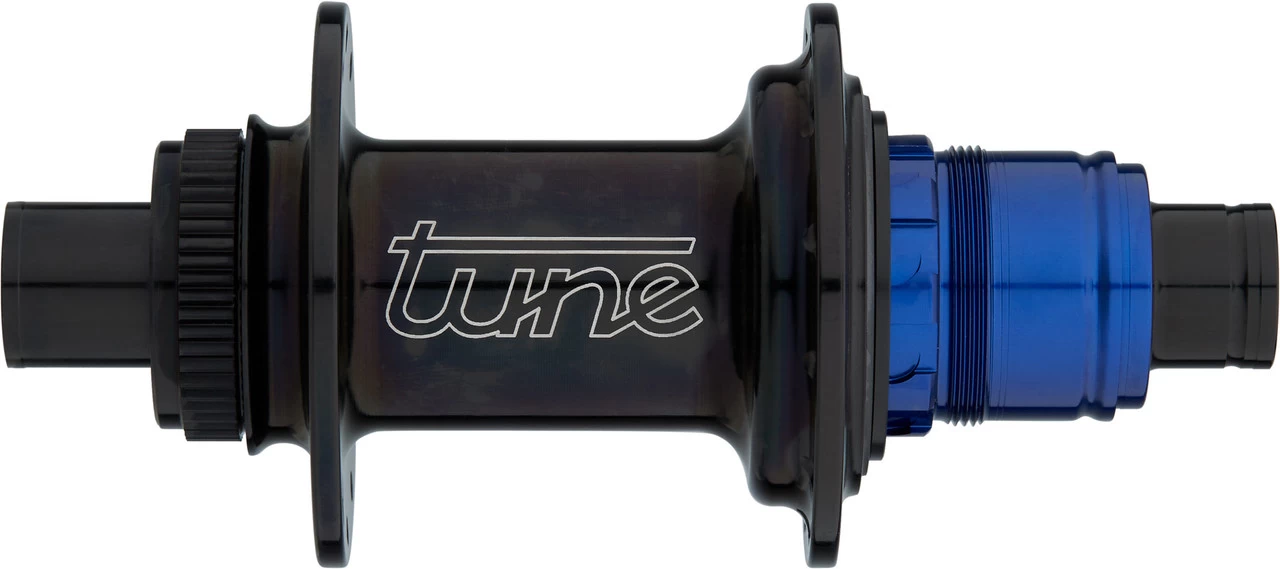

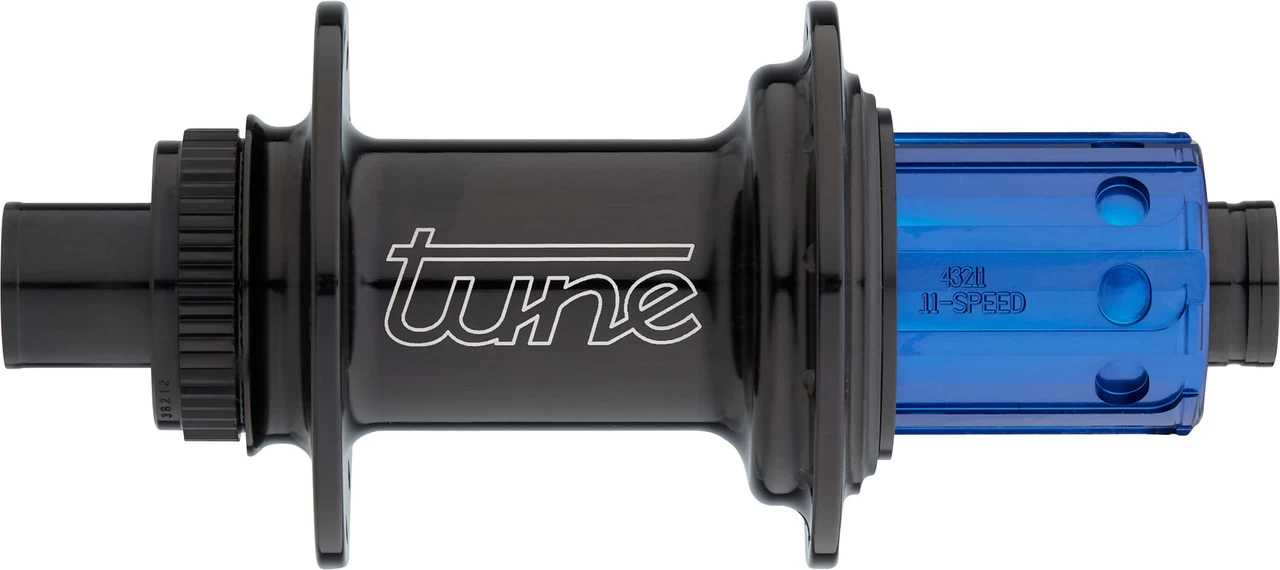

Tune ClimbHill CL Center Lock Disc Rear Hub

Specifications:Application:Road, Cyclocross, Gravel, All MountainBrake Type:Center Lock DiscFreehub Body Type:3T Sky with 3 titanium pawlsTechnical Information:Body Material:aluminiumBearings:standard ballSpoke Hole Diameter:2.4 mmApproved For:Weight Limit:100 kg rider weight, 115 kg system weightSpoke Tension (max.):1100 NmFeatures:all-rounder hub with center lock brake rotor mount for road bikes and mountain bikes (depending on number of holes)3T Sky freehub with titanium pawlsCNC-milled hub body made of anodised aluminium24-hole: double-crossed spoke lacing28-hole: triple-crossed spoke lacingrecommended spokes: Sapim CX-Ray, Sapim D-LightModels:12 x 142 mm / 24 hole / Shimano:
Application:RoadOver Locknut Dimension:12 x 142 mm thru-axleSpoke Hole Count:24 holeFreehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:To mount 8-/9-/10-speed road cassettes or 11-speed MTB cassettes on a Shimano road rotor, a 1.85 mm spacer is required.Flange Distance (L/R):55 mm (34.4 mm/20.6 mm)Partial Bolt Circle Diameter (L/R):55.5 mm/55.5 mmManufacturer Number:BHNCHCl24BeaSt12mmAluHg10113tbck
12 x 142 mm / 24 hole / SRAM XDR:
Application:RoadOver Locknut Dimension:12 x 142 mm thru-axleSpoke Hole Count:24 holeFreehub:SRAM XDRGearing:11-/12-speedNote:A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub body.Flange Distance (L/R):55 mm (34.4 mm/20.6 mm)Partial Bolt Circle Diameter (L/R):55.5 mm/55.5 mmManufacturer Number:BHNCHCl24BeaSt12mmAluXDXDR3tbck
12 x 142 mm / 28 hole / Shimano:
Application:Road, Cyclocross, Gravel, All MountainOver Locknut Dimension:12 x 142 mm thru-axleSpoke Hole Count:28 holeFreehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:To mount 8-/9-/10-speed road cassettes or 11-speed MTB cassettes on a Shimano road rotor, a 1.85 mm spacer is required.Flange Distance (L/R):55 mm (34.4 mm/20.6 mm)Partial Bolt Circle Diameter (L/R):55.5 mm/55.5 mmManufacturer Number:BHNCHCl28BeaSt12mmAluHg10113tbck
12 x 142 mm / 28 hole / Shimano Micro Spline:
Application:Road, Cyclocross, Gravel, All MountainOver Locknut Dimension:12 x 142 mm thru-axleSpoke Hole Count:28 holeFreehub:Shimano Micro SplineGearing:12-speedFlange Distance (L/R):55 mm (34.4 mm/20.6 mm)Partial Bolt Circle Diameter (L/R):55.5 mm/55.5 mmManufacturer Number:BHNCHCl28BeaSt12mmAluMS3tbck
12 x 142 mm / 28 hole / SRAM XDR:
Application:Road, Cyclocross, Gravel, All MountainOver Locknut Dimension:12 x 142 mm thru-axleSpoke Hole Count:28 holeFreehub:SRAM XDRGearing:11-/12-speedNote:A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub body.Flange Distance (L/R):55 mm (34.4 mm/20.6 mm)Partial Bolt Circle Diameter (L/R):55.5 mm/55.5 mmManufacturer Number:BHNCHCl28BeaSt12mmAluXDXDR3tbckContents:1 x tune ClimbHill CL Center Lock Disc hub1 x spacer (only for version with Shimano or SRAM XDR freehub)
