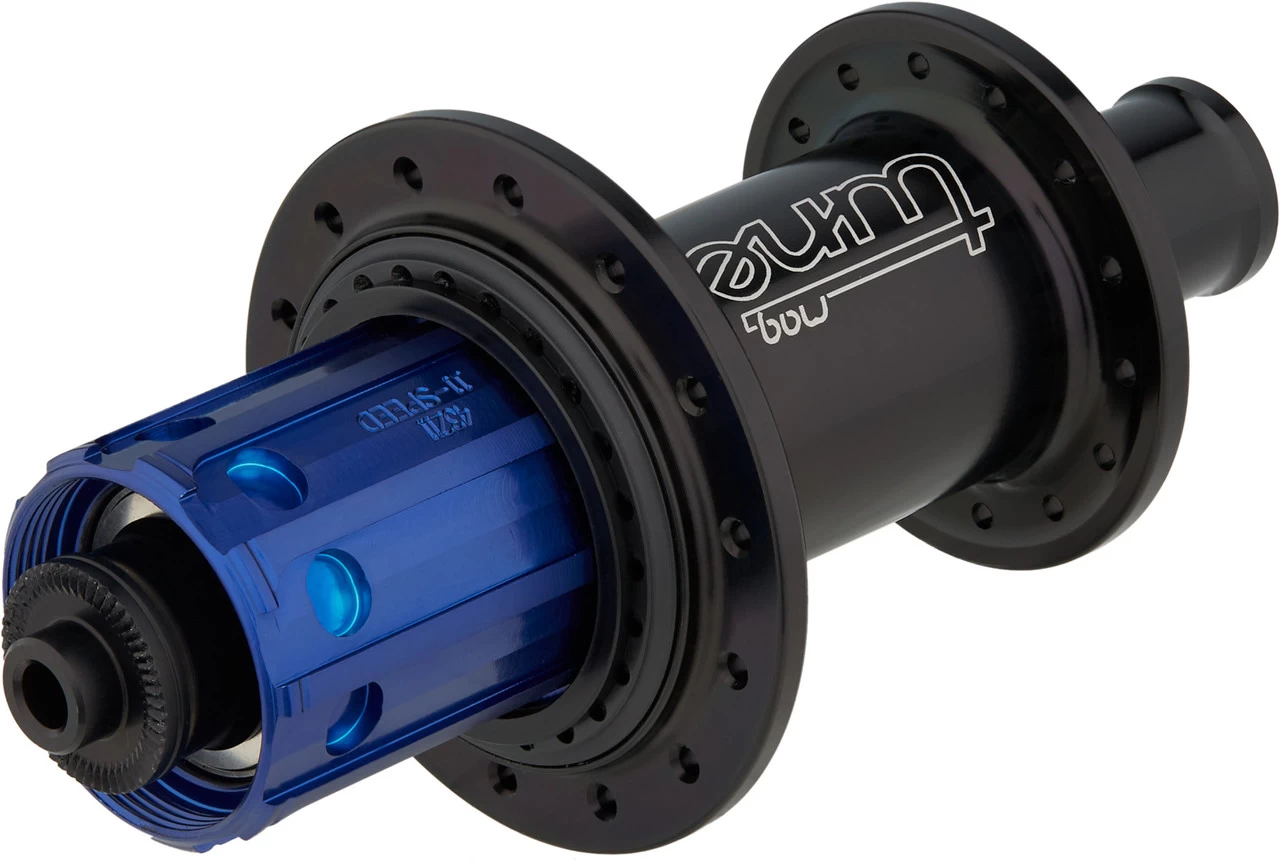

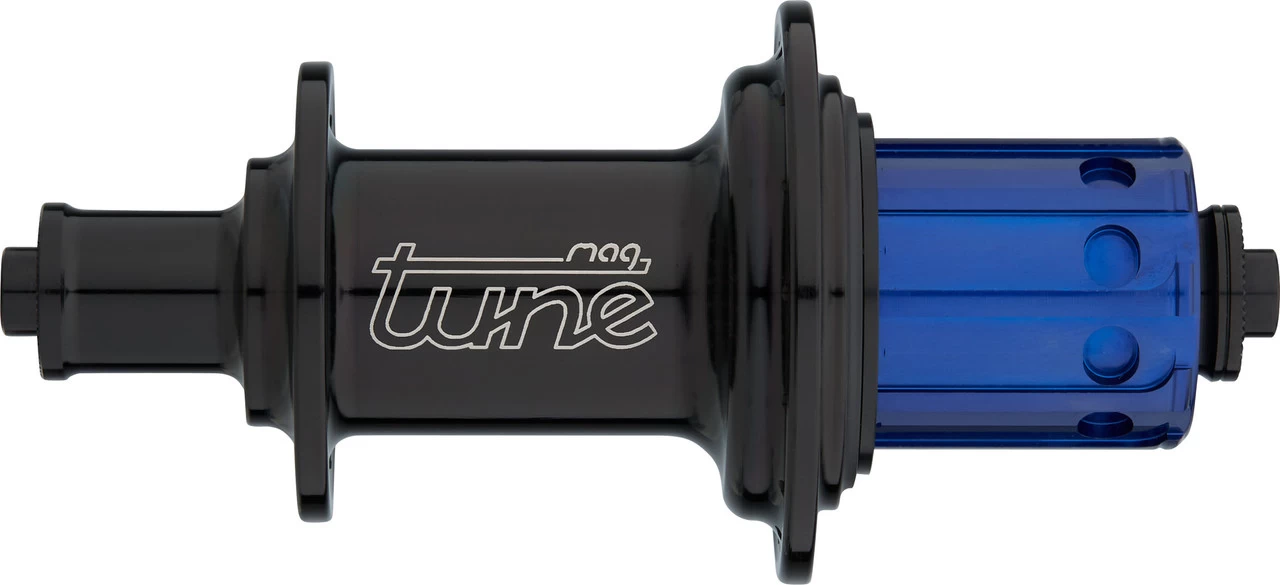

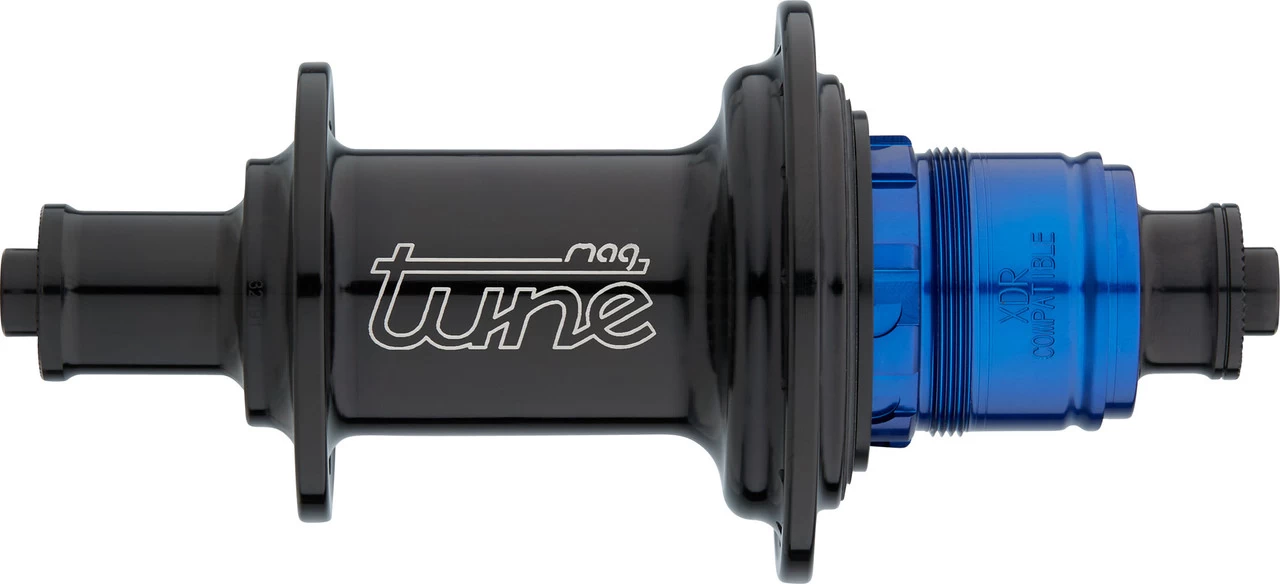

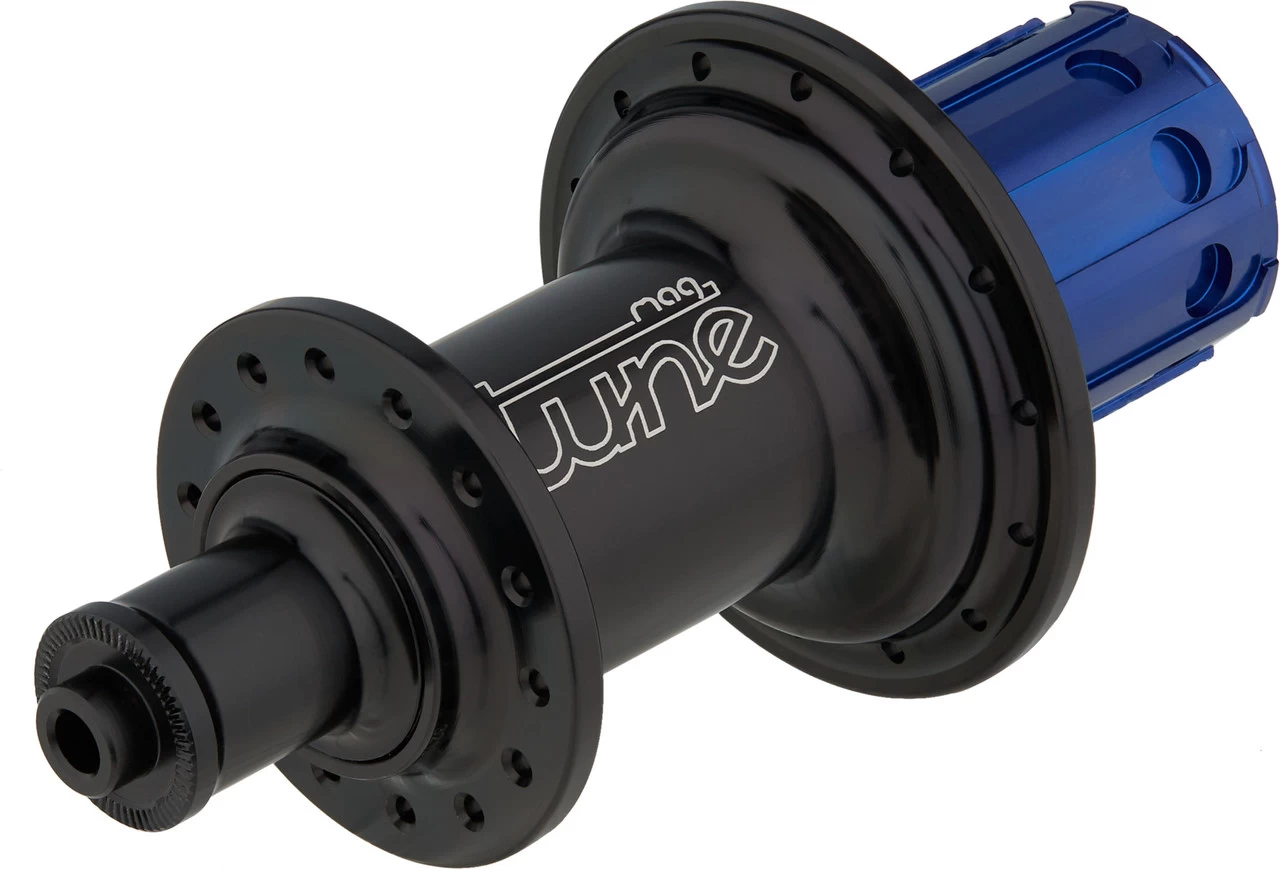

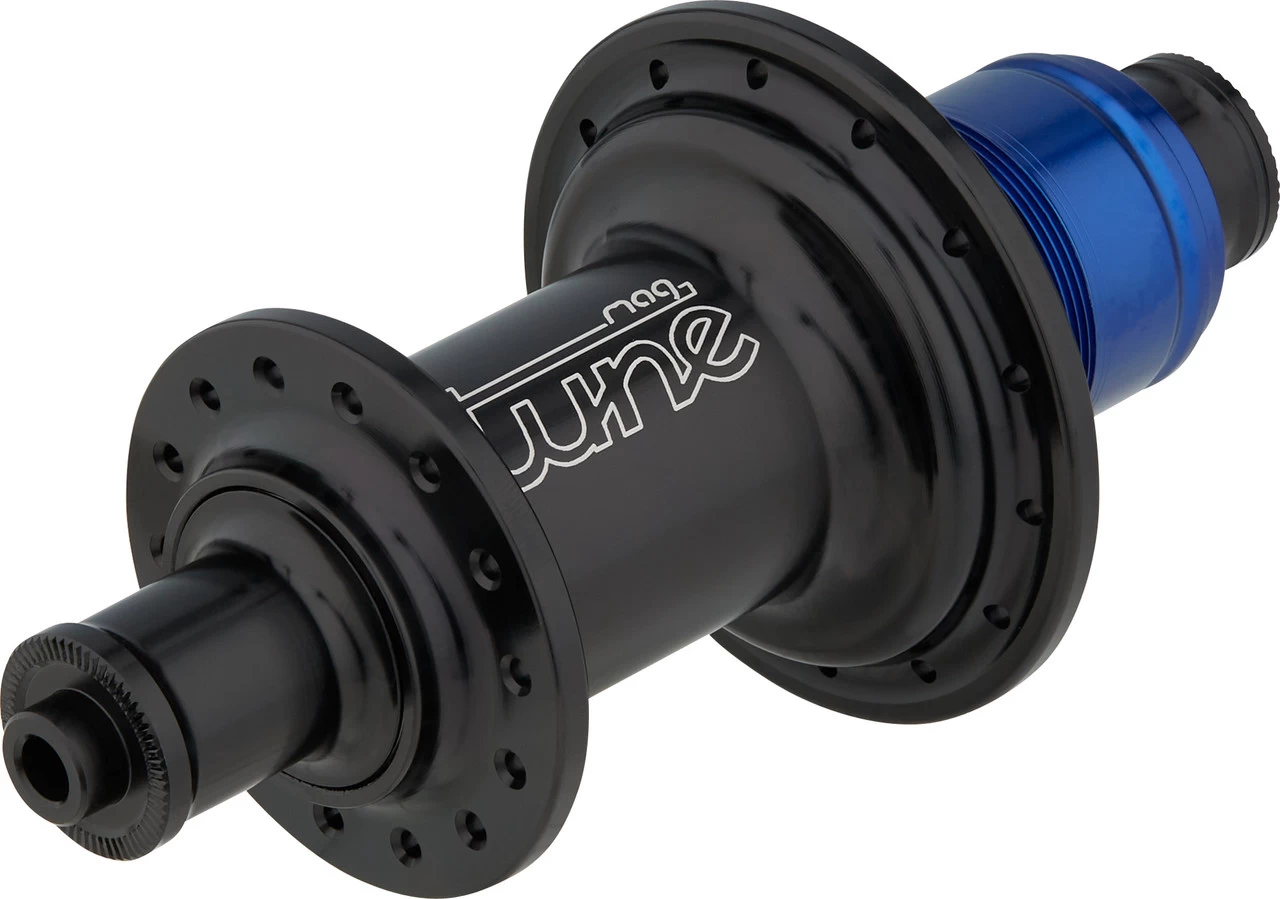

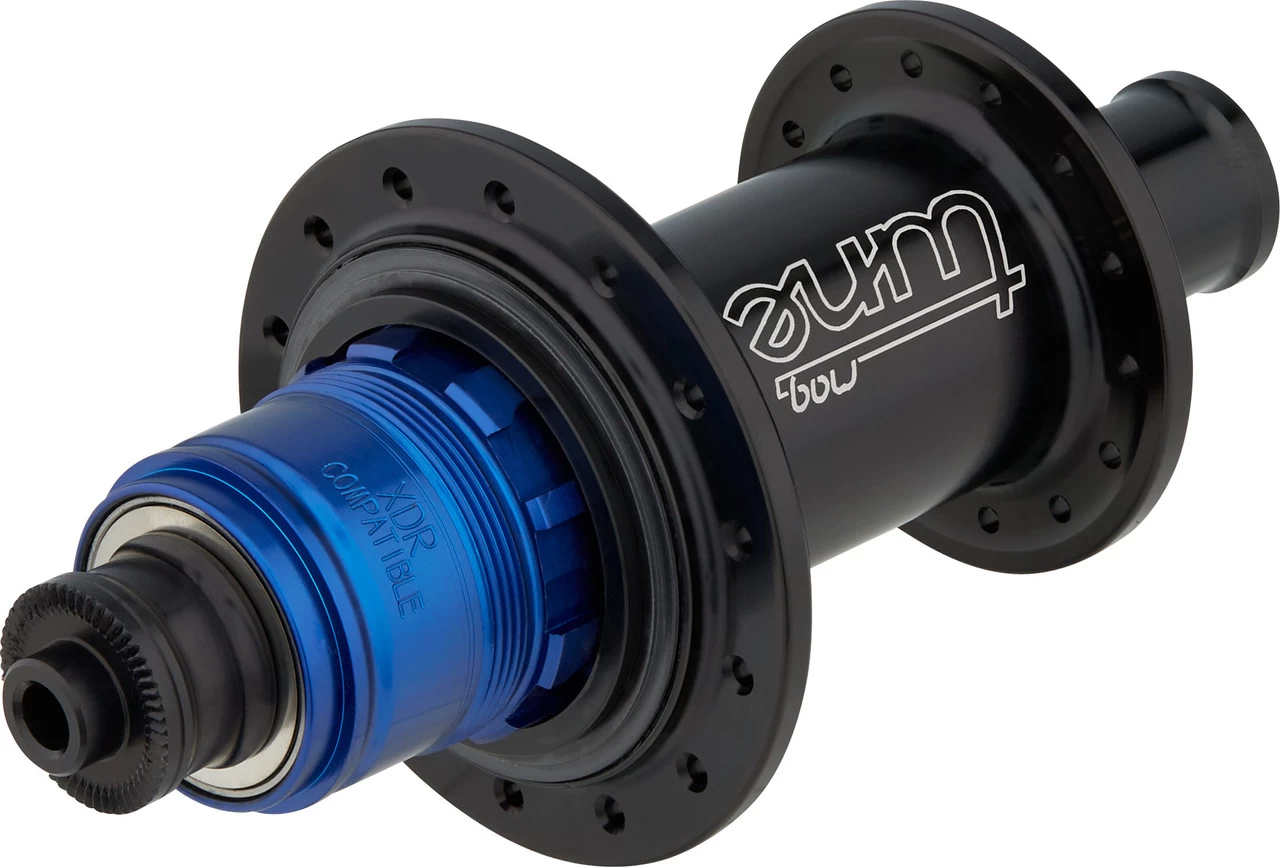

Tune Mag Rim Brake Rear Wheel Hub – 2022 Model

Specifications:Application:Road, Cyclocross, GravelBrake Type:rim brakeFreehub Body Type:3T Sky with 3 titanium pawlsTechnical Information:Body Material:aluminiumQuick Release Material:aluminiumBearings:standard ballSpoke Hole Diameter:2.4 mmApproved For:Weight Limit:100 kg rider weight, 110 kg system weightSpoke Tension (max.):1100 NmFeatures:lightweight rear wheel hub for road bikes with rim brakes3T Sky freehub with titanium pawlsCNC-milled hub body made of anodised aluminium24-hole: double-crossed spoke lacing28-hole: triple-crossed spoke lacingrecommended spokes: Sapim CX-Ray, Sapim D-LightModels:10 x 130 mm / 24 hole / Shimano:
Application:RoadOver Locknut Dimension:10 x 130 mm quick releaseSpoke Hole Count:24 holeFreehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:The assembly of 8-/9-/10-speed cassettes on a Shimano Road Rotor requires a 1.85 mm spacer.Flange Distance (L/R):42.5 mm (35.5 mm/17.0 mm)Partial Bolt Circle Diameter (L/R):40.9 mm/55.5 mmManufacturer Number:BHNMag24BeaStQR5AluHg10113tbck
10 x 130 mm / 24 hole / SRAM XDR:
Application:RoadOver Locknut Dimension:10 x 130 mm quick releaseSpoke Hole Count:24 holeFreehub:SRAM XDRGearing:11-/12-speedNote:A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub body.Flange Distance (L/R):42.5 mm (35.5 mm/17.0 mm)Partial Bolt Circle Diameter (L/R):40.9 mm/55.5 mmManufacturer Number:BHNMag24BeaStQR5AluXDXDR3tbck
10 x 130 mm / 28 hole / Shimano:
Application:Road, Cyclocross, GravelOver Locknut Dimension:10 x 130 mm quick releaseSpoke Hole Count:28 holeFreehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:The assembly of 8-/9-/10-speed cassettes on a Shimano Road Rotor requires a 1.85 mm spacer.Flange Distance (L/R):42.5 mm (35.5 mm/17.0 mm)Partial Bolt Circle Diameter (L/R):40.9 mm/55.5 mmManufacturer Number:BHNMag28BeaStQR5AluHg10113tbck
10 x 130 mm / 28 hole / SRAM XDR:
Application:Road, Cyclocross, GravelOver Locknut Dimension:10 x 130 mm quick releaseSpoke Hole Count:28 holeFreehub:SRAM XDRGearing:11-/12-speedNote:A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub body.Flange Distance (L/R):42.5 mm (35.5 mm/17.0 mm)Partial Bolt Circle Diameter (L/R):40.9 mm/55.5 mmManufacturer Number:BHNMag28BeaStQR5AluXDXDR3tbckContents:1 x tune Mag rim brake hub1 x spacer
