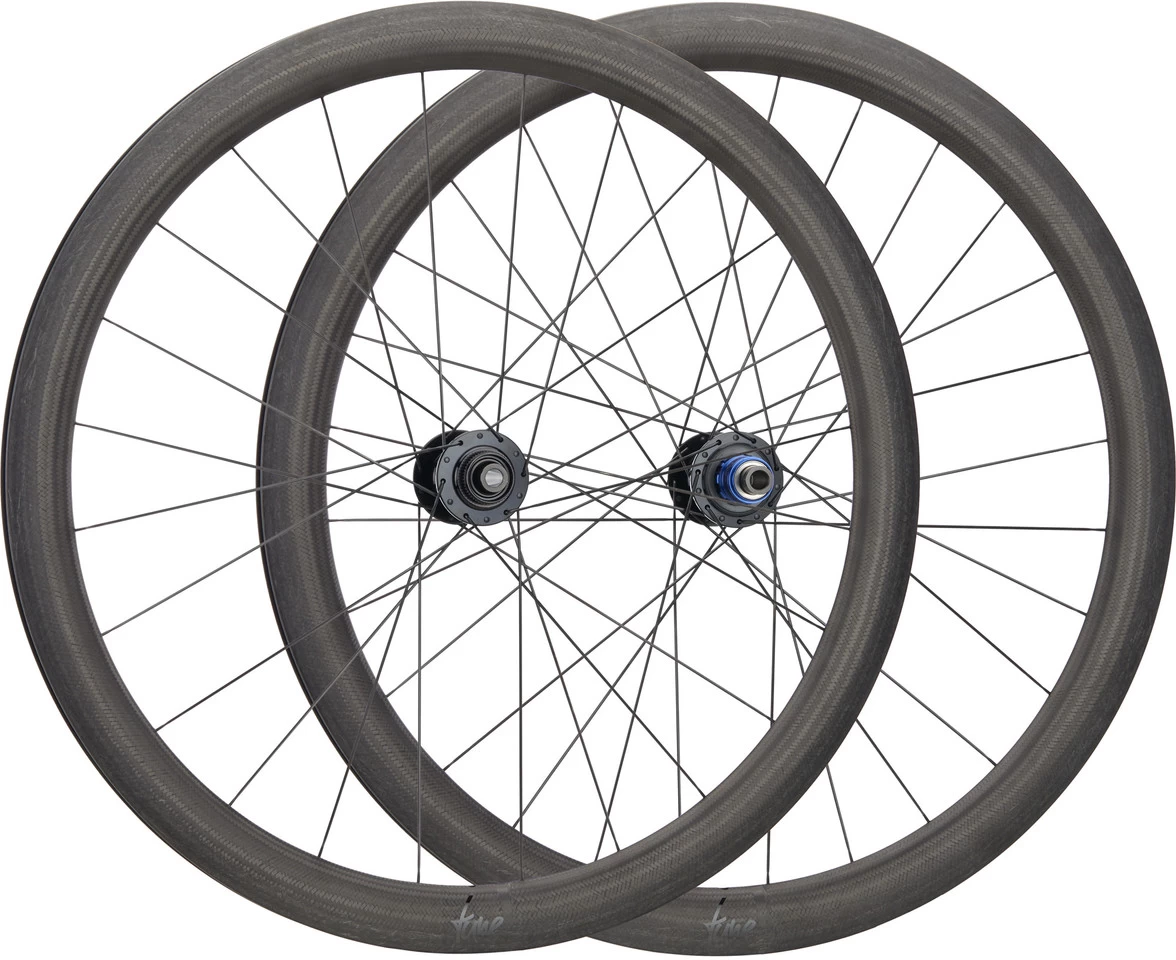

Tune Schwarzbrenner 45 3.0 Center Lock Disc 28″ Wheelset

Specifications:Application:Road, Triathlon & Time TrialWheel Size:28″Tyre Type:clincher tyreNumber of Spokes:24 (front), 28 (rear)Brake Type:Center Lock DiscTubeless System:Tubeless ReadyTechnical Information – Rim:Type:tune moonshine 45 3.0Rim Flange:with hookDimensions (ETRTO):17-622Inner Width:17 mmOuter Width:27 mmDepth:45 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:CarbonTechnical Information – Front Hub:Type:tune KillHillOver Locknut Dimension:9 x 100 mm quick release, 12 x 100 mm thru-axle, 15 x 100 mm thru-axleBearings:standard ballBody Material:aluminiumTechnical Information – Rear Hub:Type:tune ClimbHillOver Locknut Dimension:10 x 135 mm quick release, 12 x 142 mm thru-axleBearings:standard ballBody Material:aluminiumFreehub Body Material:aluminiumFreehub Body:3T Sky with 3 titanium pawlsTechnical Information – Lacing:Front Lacing Pattern:radialRear Lacing Pattern:2-crossSpoke Type:SAPIM CX-Ray / J-bend / bladed spokeSpoke Material:steelNipple Type:Sapim Polyax Secure Lock, double squareNipple Size:16 mmNipple Material:aluminiumApproved For:Weight Limit:110 kg system weight, 100 kg rider weightAir Pressure (max.):8.5 bars (23 mm), 8 bars (25 mm), 7.5 bars (28 mm), 5 bars (33 mm)Recommended Tyre Width:23 – 33 mmFeatures:streamlined carbon road wheelset with 45 mm deep rims for center-lock brake rotorsbladed spokes and aerodynamically-optimised rim shape for low air resistance and maximum speedKillHill/ClimbHill hub combination for optimised performance3T Sky freehub with titanium pawlsmaterial heat-resistant up to 245 °C for best braking performancerecommended rim tape width: 18 mmrecommended valve height: 60 mmModels:28″ set (front 9×100 + rear 10×135) Campy:
Freehub:CampagnoloGearing:9-/10-/11-/12-speedManufacturer Number:LKVSB45Drev3KHCl24BeaStQR5AluCRNipUPSWbck + LKHSB45Drev3CHCl28BeaStQR5AluCam1011123tCRNipUPSWb
28″ set (front 9×100 + rear 10×135) Shimano:
Freehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:The assembly of 8-/9-/10-speed cassettes on a Shimano Road Rotor requires a 1.85 mm spacer.Manufacturer Number:LKVSB45Drev3KHCl24BeaStQR5AluCRNipUPSWbck + LKHSB45Drev3CHCl28BeaStQR5AluHg10113tCRNipUPSWbck
28″ set (front 9×100 + rear 10×135) SRAM XDR:
Freehub:SRAM XDRGearing:11-/12-speedNote:A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub body.Manufacturer Number:LKVSB45Drev3KHCl24BeaStQR5AluCRNipUPSWbck + LKHSB45Drev3CHCl28BeaStQR5AluXDXDR3tCRNipUPSWbck
28″ set (front 12×100 + rear 12×142) Campy:
Freehub:CampagnoloGearing:9-/10-/11-/12-speedManufacturer Number:LKVSB45Drev3KHCl24BeaSt12mmAluCRNipUPSWbck + LKHSB45Drev3CHCl28BeaSt12mmAluCam1011123tCRNipUPSW
28″ set (front 12×100 + rear 12×142) Shimano:
Freehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:The assembly of 8-/9-/10-speed cassettes on a Shimano Road Rotor requires a 1.85 mm spacer.Manufacturer Number:LKVSB45Drev3KHCl24BeaSt12mmAluCRNipUPSWbck + LKHSB45Drev3CHCl28BeaSt12mmAluHg10113tCRNipUPSWbck
28″ set (front 12×100 + rear 12×142) SRAM XDR:
Freehub:SRAM XDRGearing:11-/12-speedNote:A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub body.Manufacturer Number:LKVSB45Drev3KHCl24BeaSt12mmAluCRNipUPSWbck + LKHSB45Drev3CHCl28BeaSt12mmAluXDXDR3tCRNipUPSWbck
28″ set (front 15×100 + rear 12×142) Campy:
Freehub:CampagnoloGearing:9-/10-/11-/12-speedManufacturer Number:LKVSB45Drev3KHCl24BeaSt15mmAluCRNipUPSWbck + LKHSB45Drev3CHCl28BeaSt12mmAluCam1011123tCRNipUPSW
28″ set (front 15×100 + rear 12×142) Shimano:
Freehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:The assembly of 8-/9-/10-speed cassettes on a Shimano Road Rotor requires a 1.85 mm spacer.Manufacturer Number:LKVSB45Drev3KHCl24BeaSt15mmAluCRNipUPSWbck + LKHSB45Drev3CHCl28BeaSt12mmAluHg10113tCRNipUPSWbck
28″ set (front 15×100 + rear 12×142) SRAM XDR:
Freehub:SRAM XDRGearing:11-/12-speedNote:A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub body.Manufacturer Number:LKVSB45Drev3KHCl24BeaSt15mmAluCRNipUPSWbck + LKHSB45Drev3CHCl28BeaSt12mmAluXDXDR3tCRNipUPSWbckContents:1 x tune Schwarzbrenner 45 3.0 Center Lock Disc 28″ wheelset (front and rear wheel)1 x spacer (only for version with Shimano or SRAM XDR freehub)
