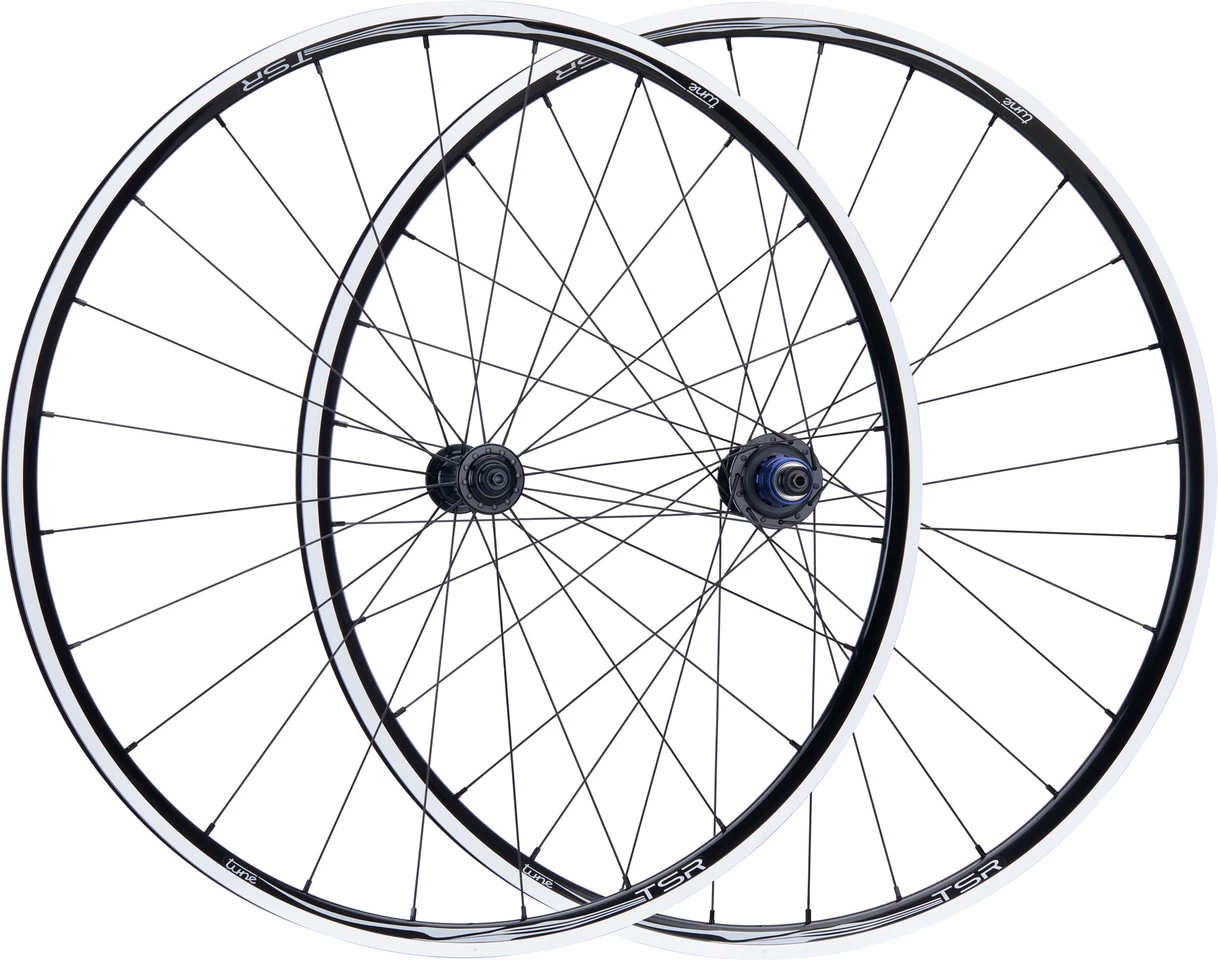

Tune TSR22 28″ Rim Brake Wheelset

Specifications:Application:RoadWheel Size:28″Tyre Type:clincher tyreNumber of Spokes:24 (front), 28 (rear)Brake Type:rim brakeTubeless System:Tubeless ReadyTechnical Information – Rim:Type:tune TSR22Rim Flange:with hookDimensions (ETRTO):19-622Inner Width:19 mmOuter Width:24.2 mmDepth:22 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:aluminiumTechnical Information – Front Hub:Type:tune MigOver Locknut Dimension:9 x 100 mm quick releaseBearings:standard ballBody Material:aluminiumTechnical Information – Rear Hub:Type:tune MagOver Locknut Dimension:10 x 130 mm quick releaseBearings:standard ballBody Material:aluminiumFreehub Body Material:aluminiumFreehub Body:3T Sky with 3 titanium pawlsTechnical Information – Lacing:Front Lacing Pattern:radialRear Lacing Pattern:3-crossSpoke Type:SAPIM D-Light / J-bend / straight / double buttedSpoke Material:steelNipple Type:Sapim Polyax Secure Lock, double squareNipple Material:aluminiumApproved For:Weight Limit:110 kg system weight, 100 kg rider weightAir Pressure (max.):7.5 bars (25 mm), 4.8 bars (32 mm), 3.8 bars (50 mm)Recommended Tyre Width:25 – 50 mmFeatures:fast and lightweight road wheelset for rim brakes22 mm high aluminium rims offer excellent climbing propertiesgood lateral stiffnessclassic Mig/Mag hub combination with low weight3T Sky freehub with titanium pawlsrecommended brake pads: Swissstop BXPrecommended rim tape width: 22 mmrecommended valve height: 35 mmModels:28″ set (front 9×100 + rear 10×130) Shimano:
Freehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:The assembly of 8-/9-/10-speed cassettes on a Shimano Road Rotor requires a 1.85 mm spacer.Manufacturer Number:LKVTSR22Mig24BeaStQR5AluDLNipbck + LKHTSR22Mag28BeaStQR5AluHg10113tDLNipbck
28″ set (front 9×100 + rear 10×130) SRAM XDR:

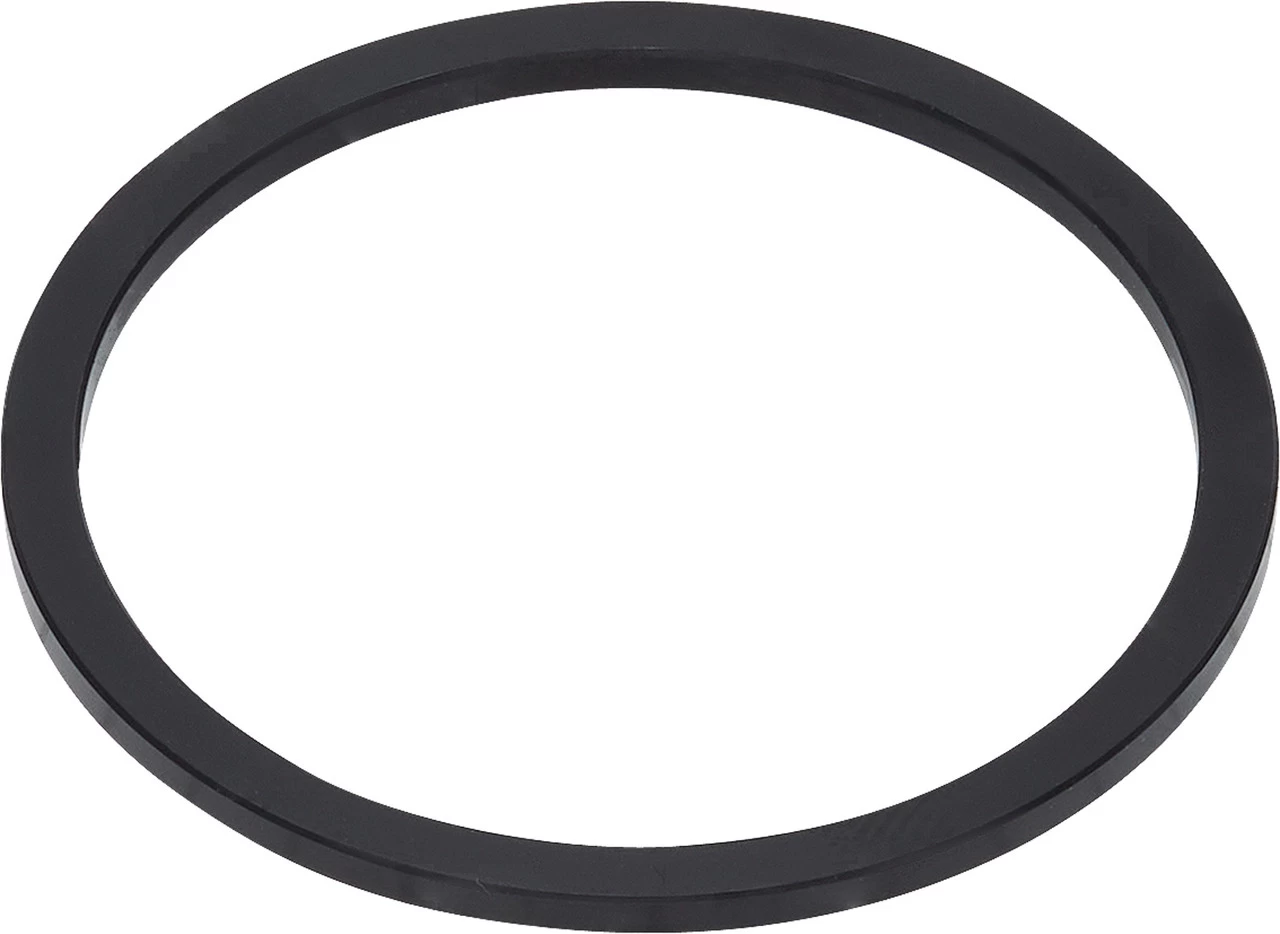

Freehub:SRAM XDRGearing:11-/12-speedNote:A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub body.Manufacturer Number:LKVTSR22Mig24BeaStQR5AluDLNipbck + LKHTSR22Mag28BeaStQR5AluXDXDR3tDLNipbckContents:1 x tune TSR22 28″ wheelset (front and rear wheel)1 x spacer
