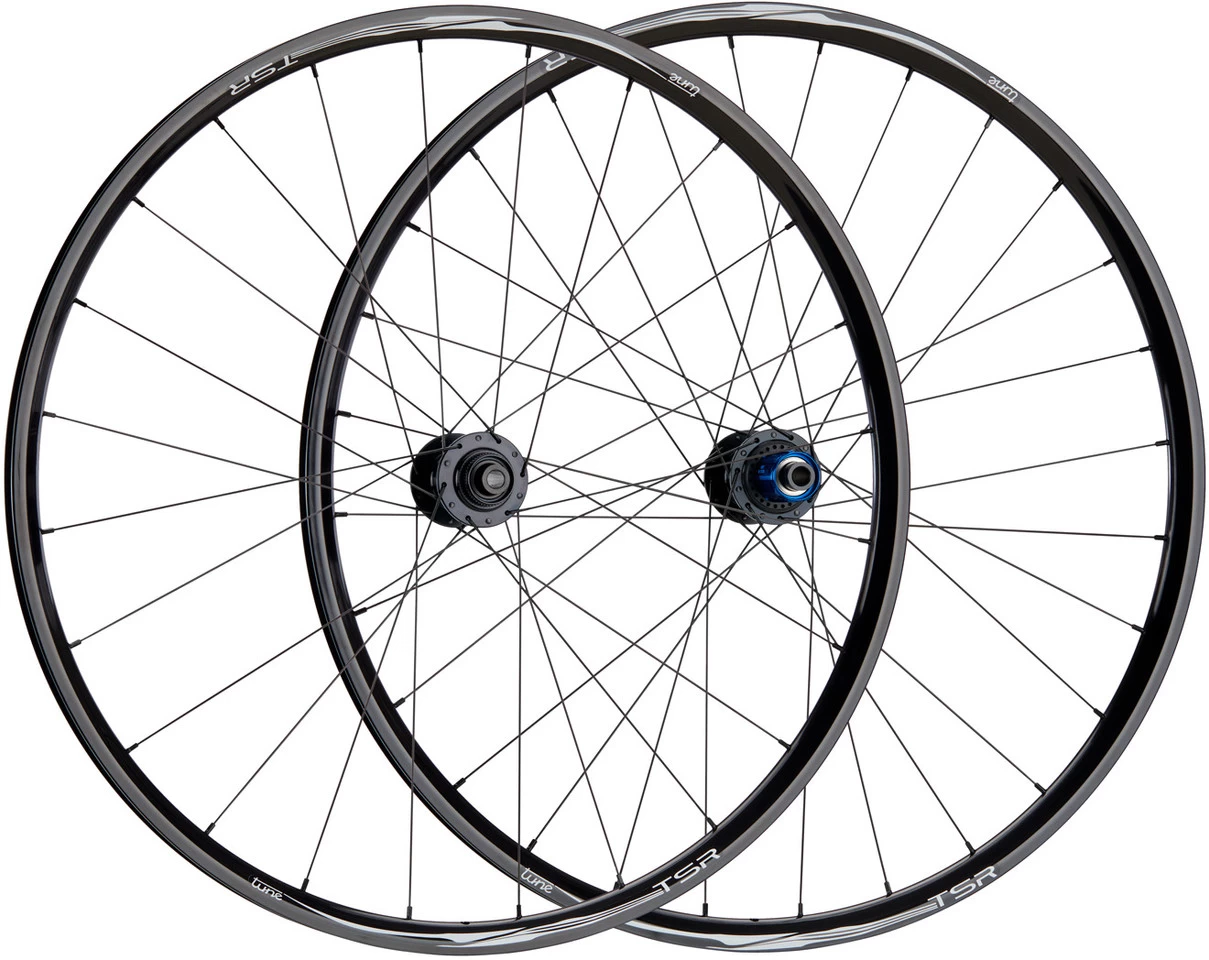

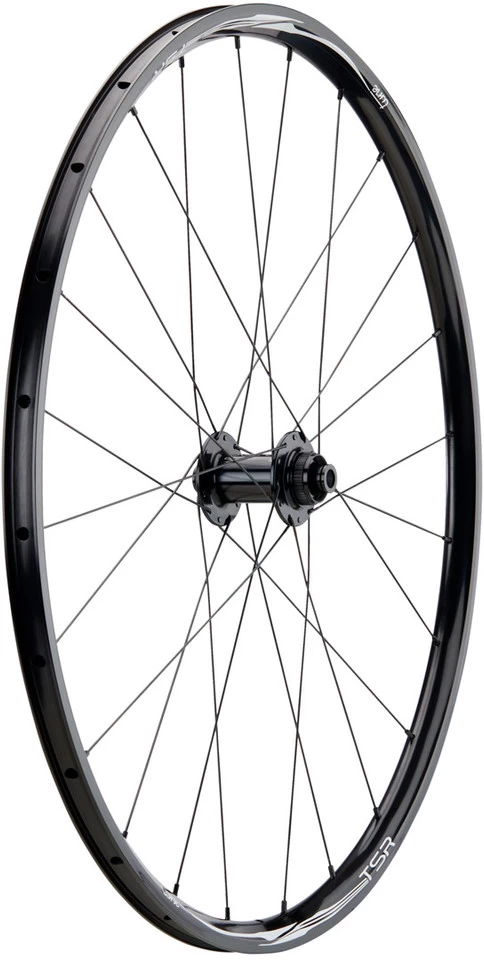

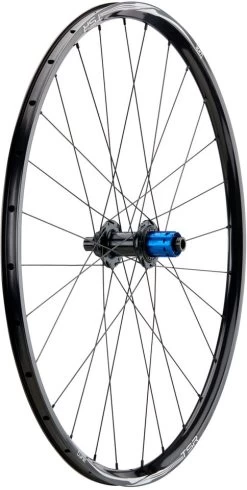

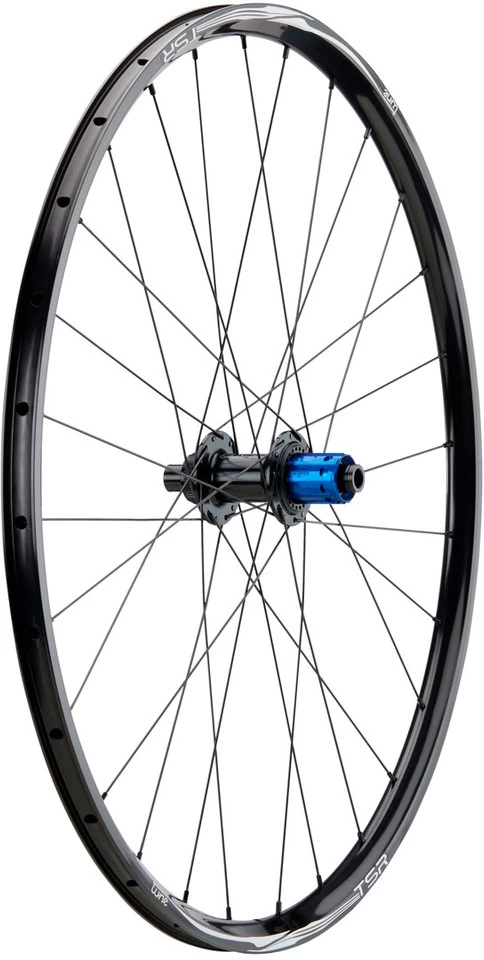

Tune TSR22 Center Lock Disc 28″ Wheelset – 2021 Model

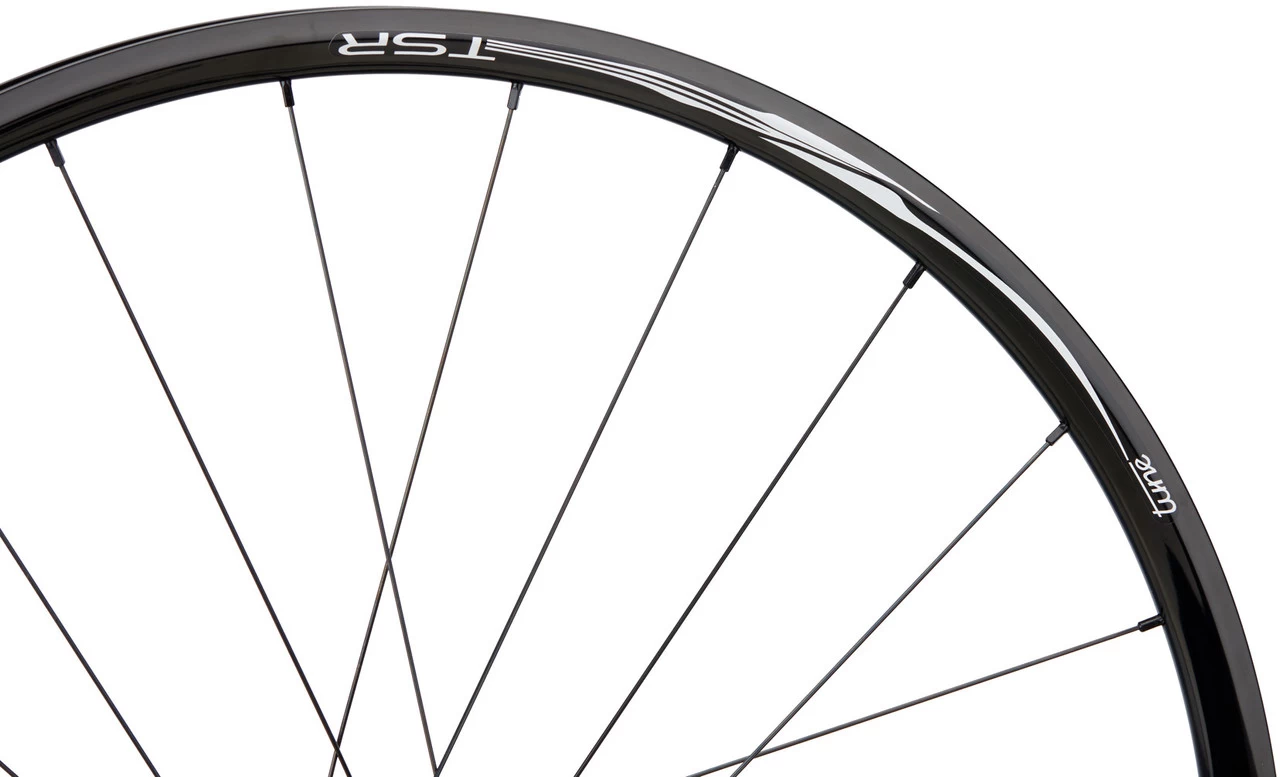

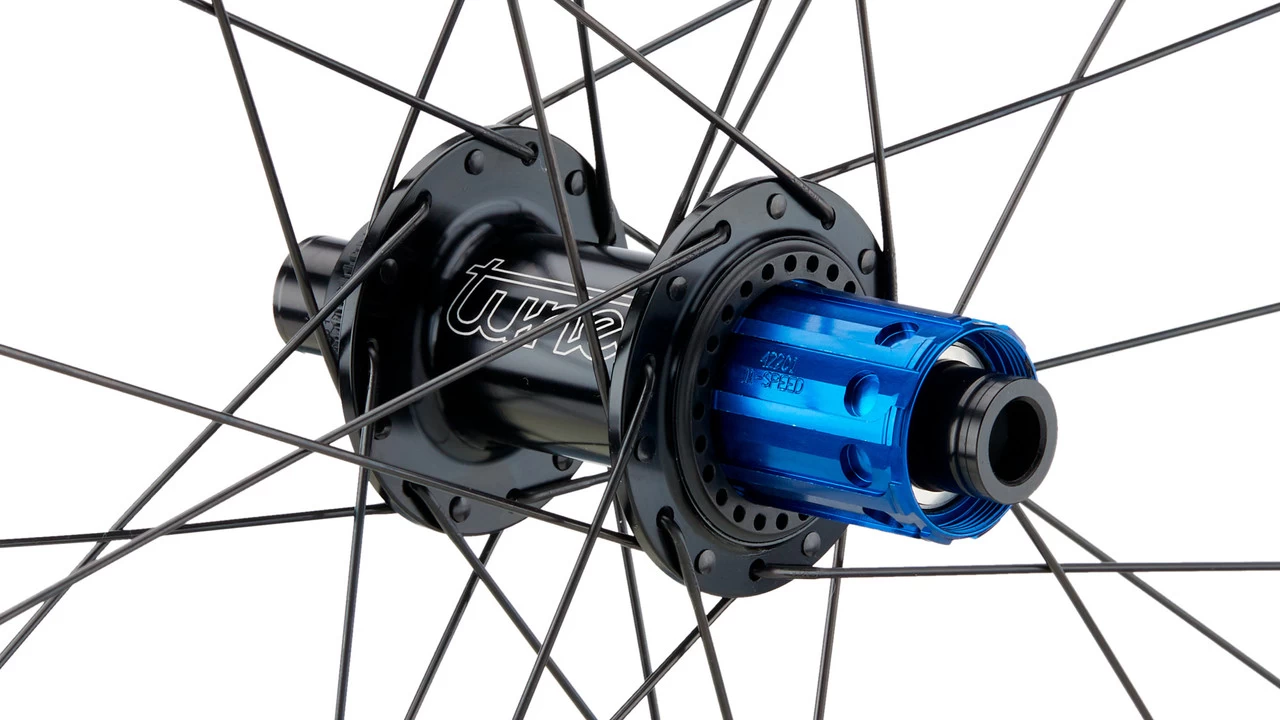

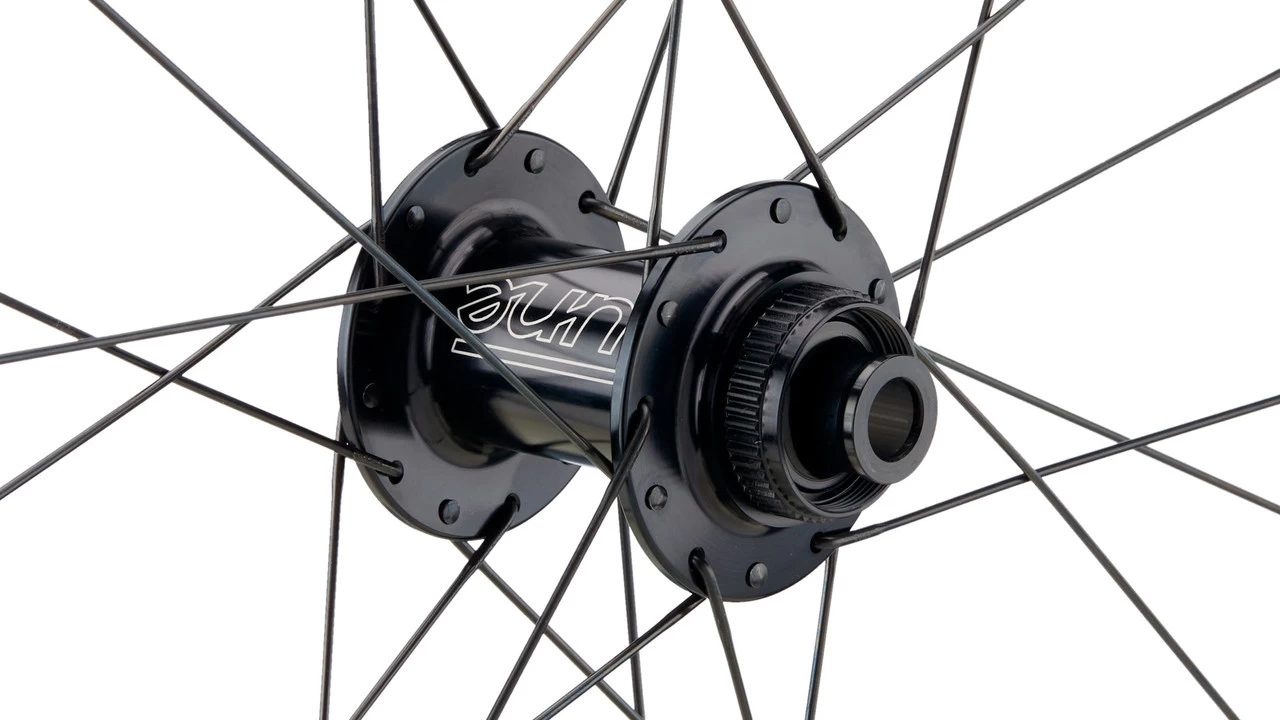

The TSR22 Disc 28″ wheelset from tune is stable and light thanks to the 22 mm high aluminium rims. The combination with the high-performance, smooth-running KillHill and ClimbHill hubs with Center Lock mount make it a good choice for your road bike.
Specifications:Application:RoadWheel Size:28″Tyre Type:clincher tyreNumber of Spokes:24 (front), 28 (rear)Brake Type:Center Lock DiscTubeless System:Tubeless ReadyTechnical Information – Rim:Rim Flange:with hookDimensions (ETRTO):19-622Inner Width:19 mmOuter Width:24.5 mmDepth:22 mmERD:594 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:aluminiumTechnical Information – Front Hub:Type:KillHill with aluminium end capsOver Locknut Dimension:9 x 100 mm quick release, 12 x 100 mm thru-axle, 15 x 100 mm thru-axleBearings:standard ballBody Material:aluminiumTechnical Information – Rear Hub:Type:ClimbHill with aluminium end capsOver Locknut Dimension:10 x 135 mm quick release, 12 x 142 mm thru-axleBearings:standard ballBody Material:aluminiumFreehub Body Material:aluminiumFreehub Body:3T Sky with titanium pawlsTechnical Information – Lacing:Front Lacing Pattern:2-crossRear Lacing Pattern:3-crossSpoke Type:Sapim D-Light / J-bend / double buttedSpoke Material:stainless steelNipple Type:Sapim Polyax Secure Lock, double squareNipple Size:16 mmNipple Material:aluminiumApproved For:Weight Limit:100 kg (rider), 110 kg (total weight)Air Pressure (max.):7.5 bars (25 mm), 4.8 bars (32 mm), 3.8 bars (50 mm)Recommended Tyre Width:25 – 50 mmFeatures:recommended valve length 35 mmrecommended tubeless rim tape width 22 mmModels:28″ set (front 9×100 + rear 10×135) Campy:
Freehub:CampagnoloGearing:9-/10-/11-/12-speedManufacturer Numbers:LKVD4QCAST22D1s (front) + LKHD8QCACS3ST22D1s (rear)
28″ set (front 9×100 + rear 10×135) Shimano:
Freehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.Manufacturer Numbers:LKVD4QCAST22D1s (front) + LKHD8QCA1S3ST22D1s (rear)
28″ set (front 9×100 + rear 10×135) SRAM XDR:
Freehub:SRAM XDRGearing:11-/12-speedNote:A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub.Manufacturer Numbers:LKVD4QCAST22D1s (front) + LKHD8QIADS3ST22D1s (rear)
28″ set (front 12×100 + rear 12×142) Campy:
Freehub:CampagnoloGearing:9-/10-/11-/12-speedManufacturer Numbers:LKVD42CAST22D1s (front) + LKHD82CACS3ST22D1s (rear)
28″ set (front 12×100 + rear 12×142) Shimano:
Freehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.Manufacturer Numbers:LKVD42CAST22D1s (front) + LKHD82CA1S3ST22D1s (rear)
28″ set (front 12×100 + rear 12×142) SRAM XDR:
Freehub:SRAM XDRGearing:11-/12-speedNote:A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub.Manufacturer Numbers:LKVD42CAST22D1s (front) + LKHD82CADS3ST22D1s (rear)
28″ set (front 15×100 + rear 12×142) Campy:
Freehub:CampagnoloGearing:9-/10-/11-/12-speedManufacturer Numbers:LKVD45CAST22D1s (front) + LKHD82CACS3ST22D1s (rear)
28″ set (front 15×100 + rear 12×142) Shimano:
Freehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.Manufacturer Numbers:LKVD45CAST22D1s (front) + LKHD82CA1S3ST22D1s (rear)
28″ set (front 15×100 + rear 12×142) SRAM XDR:
Freehub:SRAM XDRGearing:11-/12-speedNote:A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub.Manufacturer Numbers:LKVD45CAST22D1s (front) + LKHD82CADS3ST22D1s (rear)Contents:1 x tune TSR22 Center Lock Disc 28″ wheelset (front and rear wheel)
