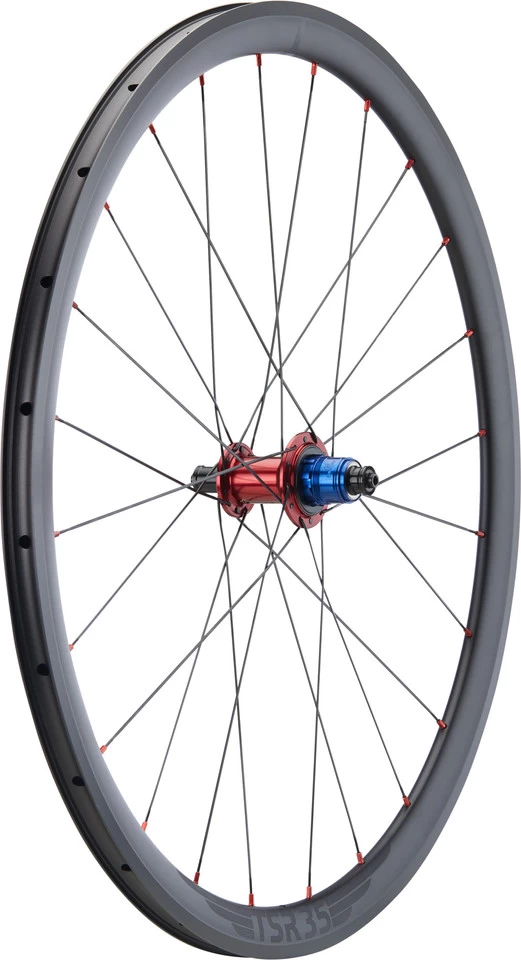

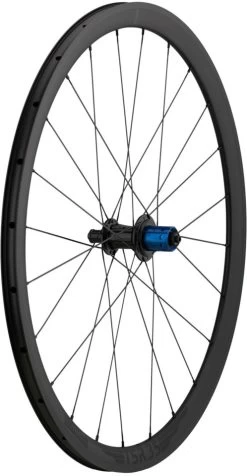

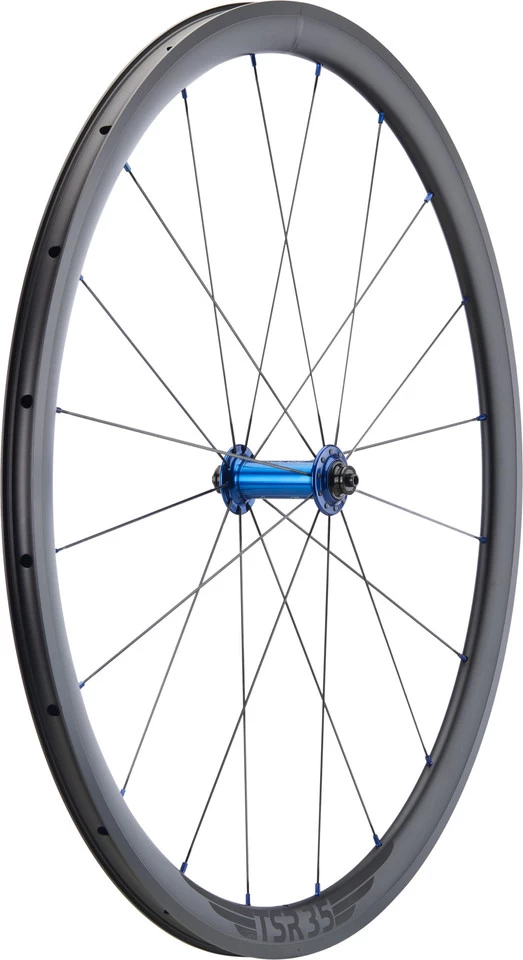

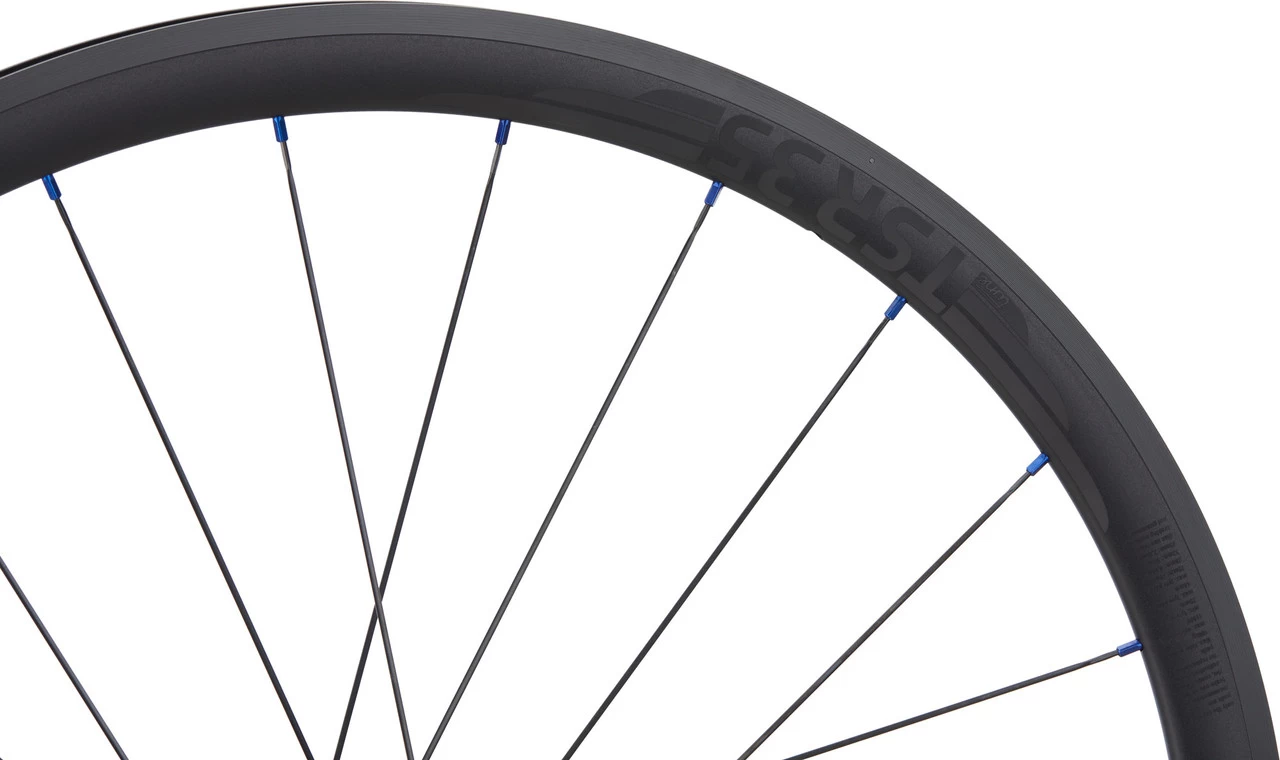

Tune TSR35 28″ Rim Brake Wheel

The TSR35 Rim Brake 28″ Wheel by tune – Modern and timeless

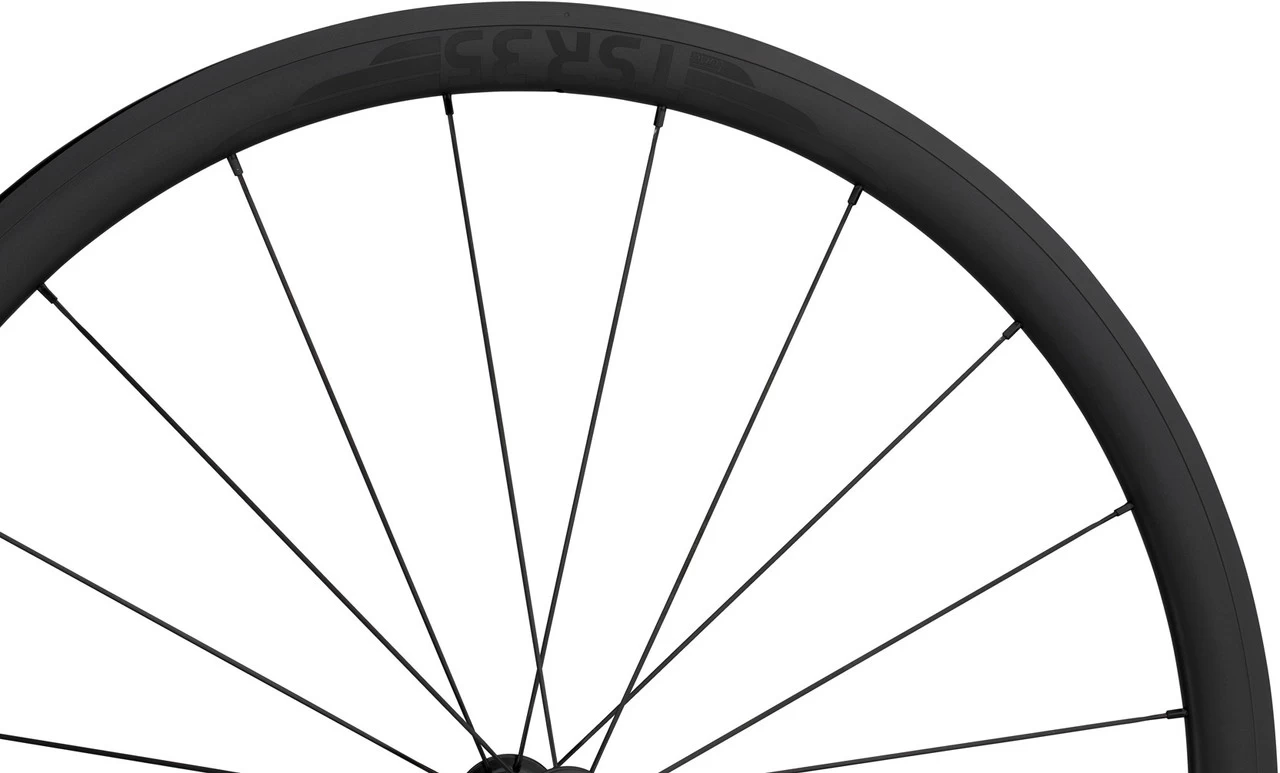

The tune TSR35 28″ wheel for rim brakes is a master of versatility on your road bike. The high, aerodynamic rim profile in combination with bladed spokes will benefit you in flat terrain, high lateral stiffness and low weight will let you climb well uphill. Sprints out of the saddle become child’s play. Downhill the strong braking performance allows you to achieve the best times. The timeless, black anodized look suits modern race machines, but is also a visual highlight on classic Road bikes. The brake track is also completely black anodised. To maintain the finish on the brake track for as long as possible, it is important that you use the recommended brake pads and adjust them correctly. Eventually, as riding performance increases, the coating on the brake track fades and develops a grey aluminium colour. Once you’ve experienced the TSR35 wheels, you won’t want to switch to carbon!

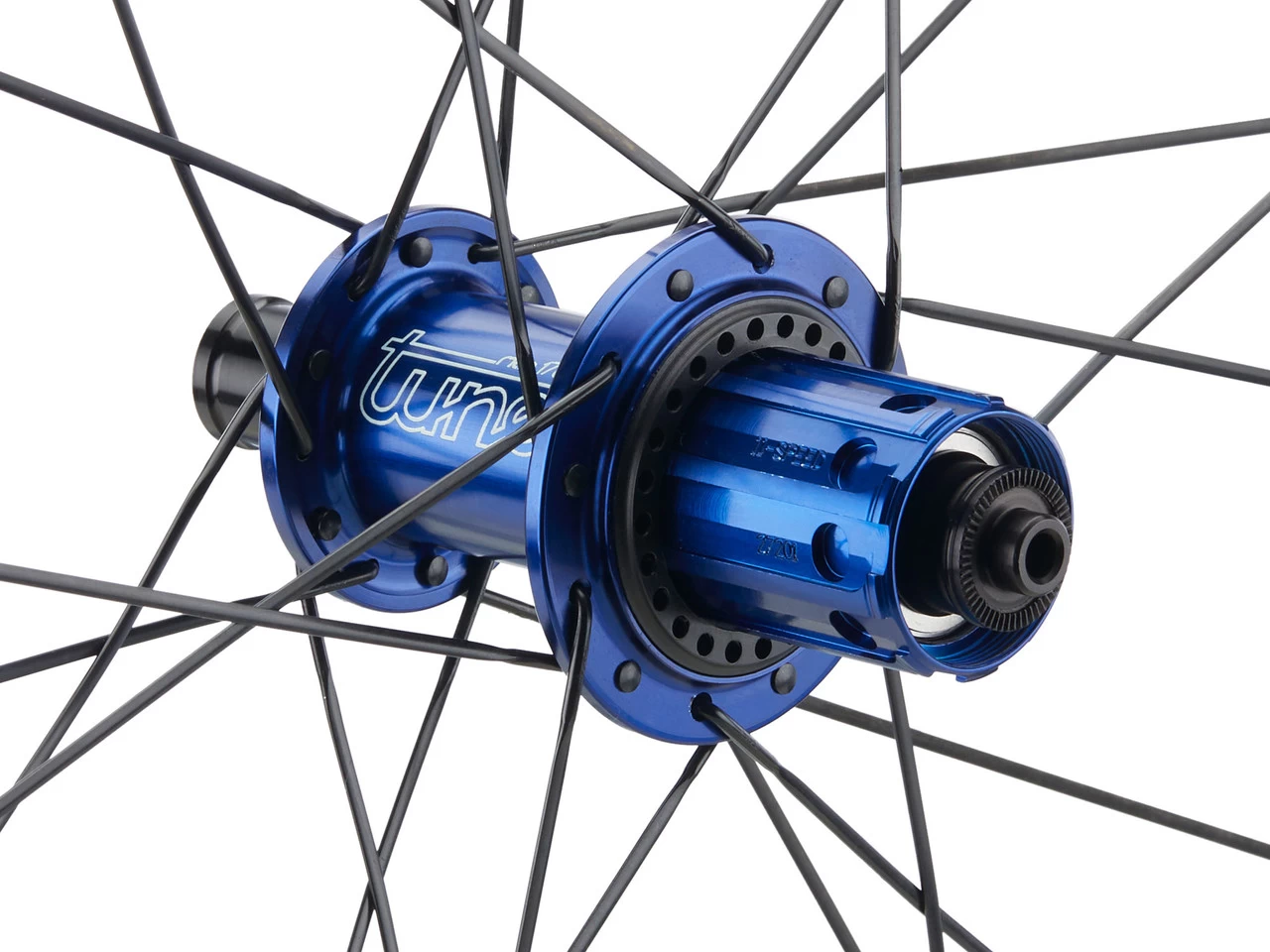

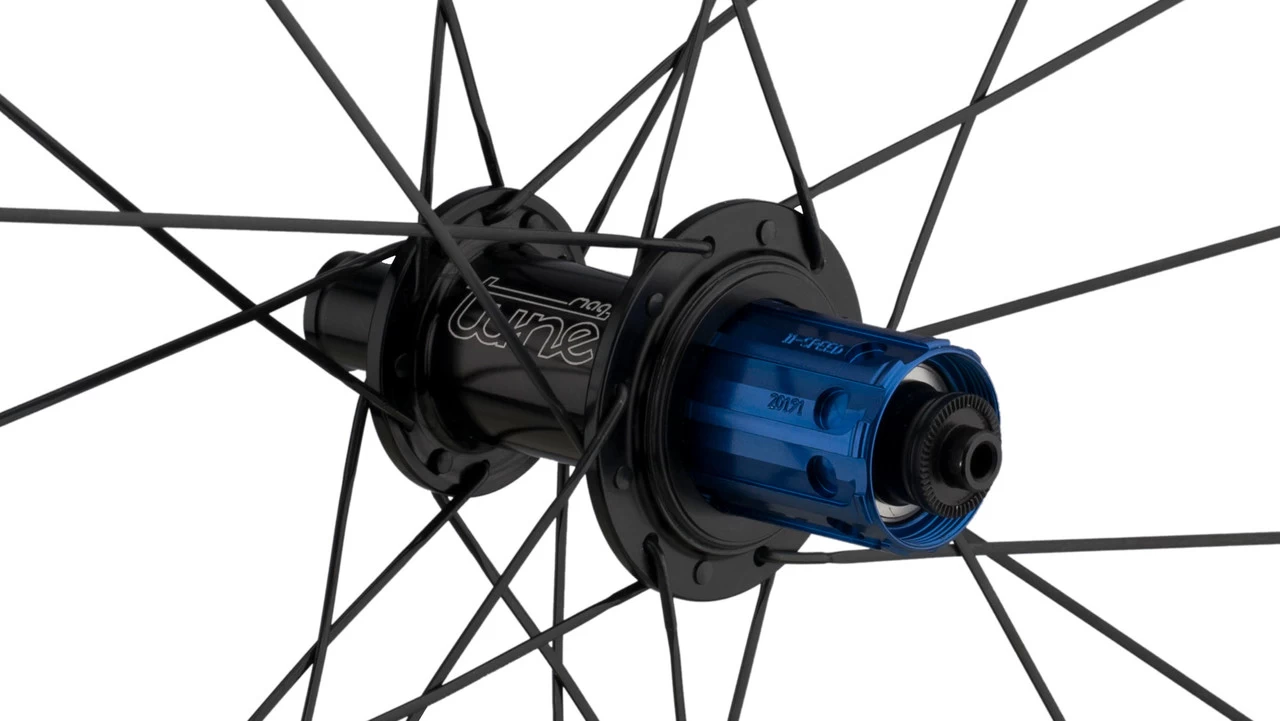

Specifications:Application:RoadWheel Size:28″Tyre Type:clincher tyreNumber of Spokes:20 (front), 24 (rear)Brake Type:rim brakeTubeless System:Tubeless ReadyTechnical Information – Rim:Type:TSR35Dimensions (ETRTO):19.9-622Inner Width:19.9 mmOuter Width:24 mmDepth:35 mmERD:568 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:AluminiumTechnical Information – Front Hub:Type:MigOver Locknut Dimension:9 x 100 mm quick releaseBearings:standard steel ball bearingsBody Material:AluminiumTechnical Information – Rear Hub:Type:MagOver Locknut Dimension:10 x 130 mm quick releaseBearings:standard steel ball bearingsBody Material:AluminiumFreehub Body Material:AluminiumFreehub Body:standard 3 titanium pawls / 27 engagement pointsTechnical Information – Lacing:Front Lacing Pattern:radialRear Lacing Pattern:2-crossSpoke Type:Sapim CX-Ray / bladed spokesSpoke Material:stainless steelNipple Type:Sapim Polyax Secure Lock anodised / double squareNipple Size:16 mmNipple Material:AluminiumApproved For:Weight Limit:100 kg (rider), 110 kg (total weight)Air Pressure (max.):7 bar (25 mm tyre width), 6.5 bar (28 mm tyre width), 5 bar (33 mm tyre width), 3.5 bar (45 mm tyre width)Recommended Tyre Width:25 – 45 mmFeatures:aluminium end capsblack chromed aero spokesrecommended brake pads Swissstop BXPrecommended valve length 60 mmrecommended tubeless rim tape width 22 mmModels:28″ rear 12×142 SRAM XDR:
Manufacturer Number:LKVA0QIAST35X1

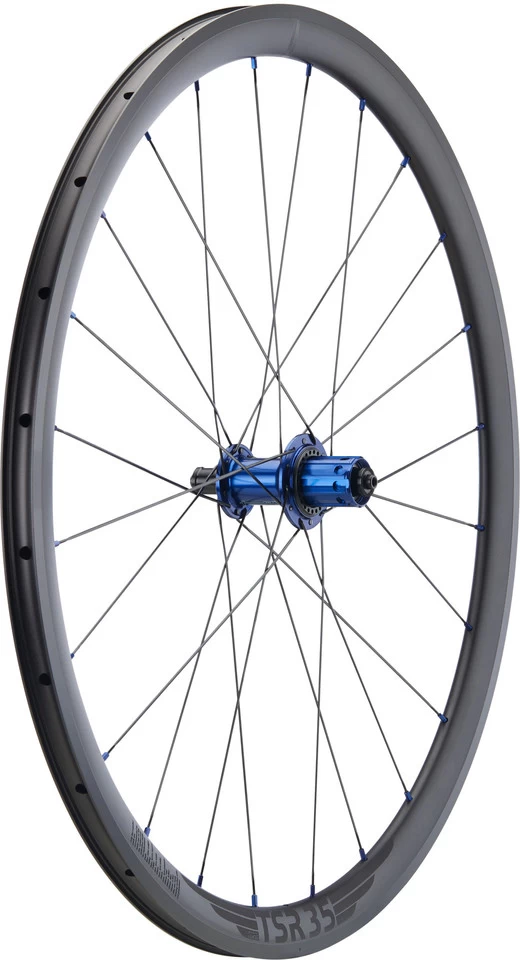

28″ rear 10×130 Shimano:
Freehub:Shimano RoadGearing:8-/9-/10-/11-speedNote:Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.Manufacturer Number:LKHA4QIA1S3ST35X1

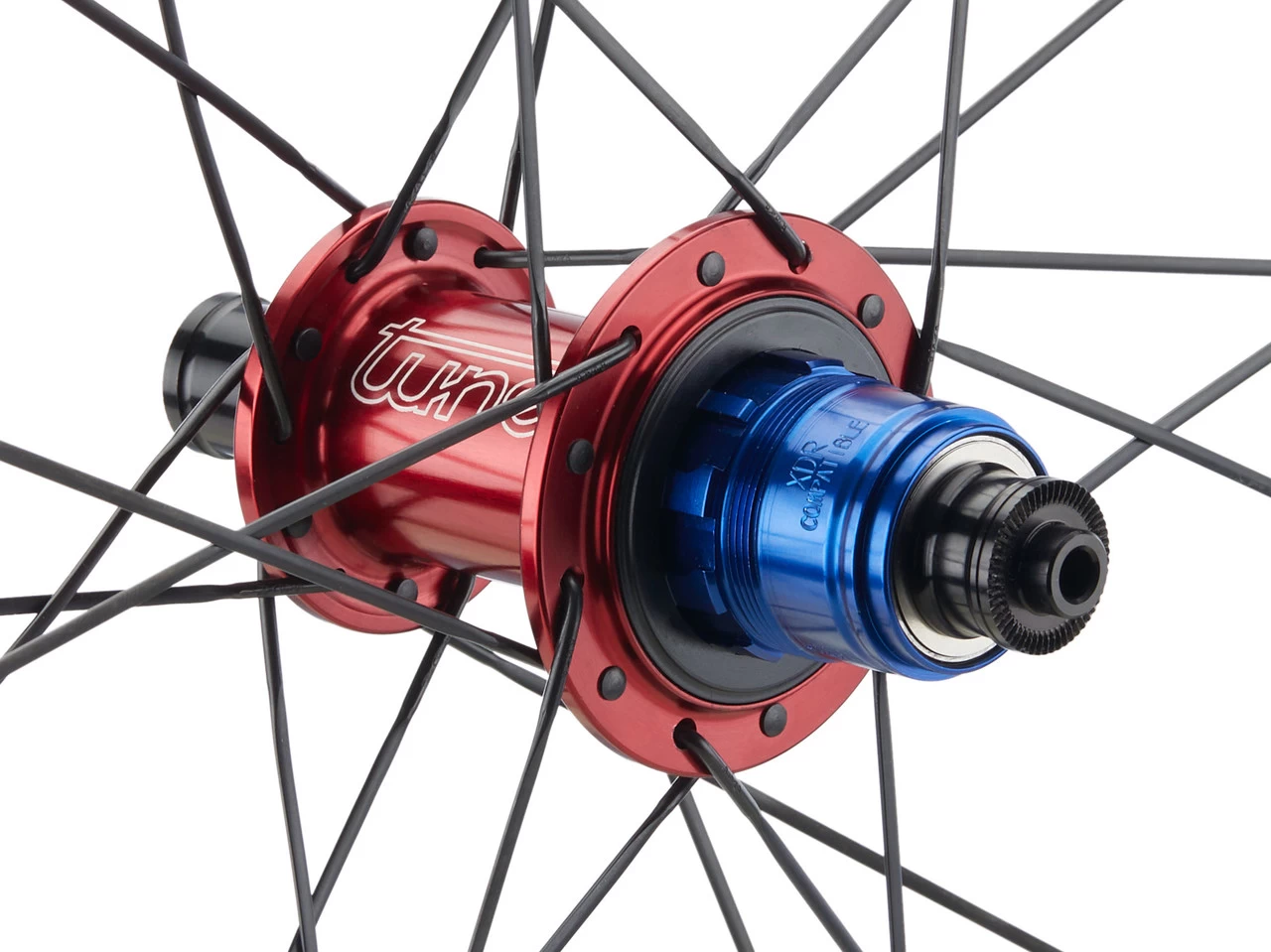

28″ rear 10×130 SRAM XDR:
Freehub:SRAM XDRGearing:11-/12-speedNote:A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub.Manufacturer Number:LKHA4QIADS3ST35X1Contents:1 x tune TSR35 rim brake 28″ wheel (front or rear wheel)
