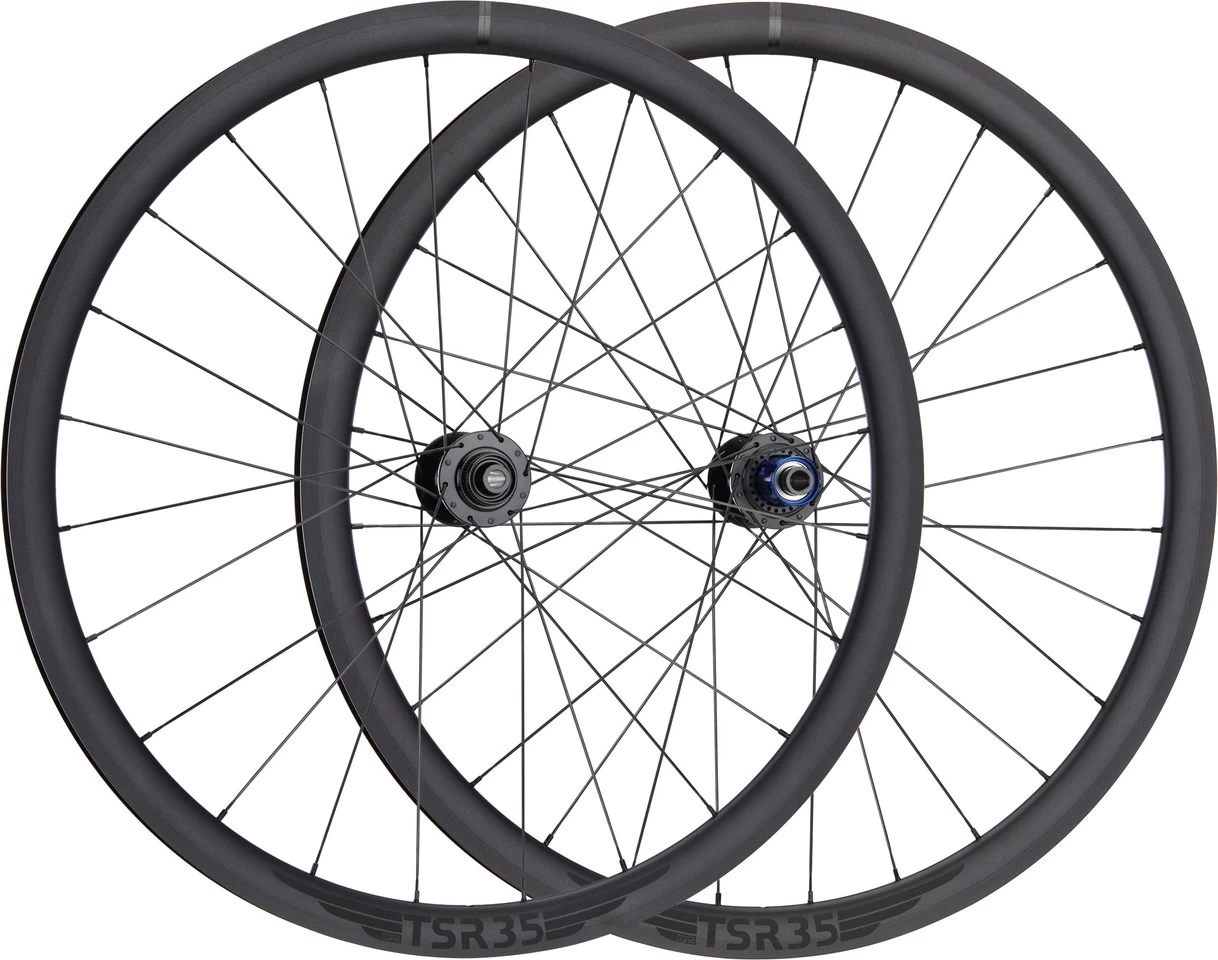

Tune TSR35 Center Lock Disc 28″ Wheelset

Specifications:Application:RoadWheel Size:28″Tyre Type:clincher tyreNumber of Spokes:24 (front), 28 (rear)Brake Type:Center Lock DiscTubeless System:Tubeless ReadyTechnical Information – Rim:Type:tune TSR35Rim Flange:with hookDimensions (ETRTO):19.9-622Inner Width:19.9 mmOuter Width:24 mmDepth:35 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:aluminiumTechnical Information – Front Hub:Type:tune KillHillOver Locknut Dimension:9 x 100 mm quick release, 12 x 100 mm thru-axle, 15 x 100 mm thru-axleBearings:standard ballBody Material:aluminiumTechnical Information – Rear Hub:Type:tune ClimbHillOver Locknut Dimension:10 x 135 mm quick release, 12 x 142 mm thru-axleBearings:standard ballBody Material:aluminiumFreehub Body Material:aluminiumFreehub Body:3T Sky with 3 titanium pawlsTechnical Information – Lacing:Front Lacing Pattern:2-crossRear Lacing Pattern:3-crossSpoke Type:SAPIM CX-Ray / J-bend / bladed spokeSpoke Material:steelNipple Type:Sapim Polyax Secure Lock, double squareNipple Material:aluminiumApproved For:Weight Limit:110 kg system weight, 100 kg rider weightAir Pressure (max.):7 bars (25 mm), 6.5 bars (28 mm), 5 bars (33 mm), 3.5 bars (45 mm)Recommended Tyre Width:25 – 45 mmFeatures:all-rounder road wheelset for center-lock brake rotorsexcellent climbing properties thanks to low weight35 mm deep rims with double lasered tune logoKillHill/ClimbHill hub combination for optimised performance3T Sky freehub with titanium pawlsrecommended rim tape width: 22 mmrecommended valve height: 60 mmModels:28″ set (front 9×100 + rear 10×135) Campy:
Freehub:CampagnoloGearing:9-/10-/11-/12-speedManufacturer Number:LKVTSR35DKHCl24BeaStQR5AluCRNipbck + LKHTSR35DCHCl28BeaStQR5AluCam1011123tCRNipbck
28″ set (front 9×100 + rear 10×135) Shimano:
Freehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:The assembly of 8-/9-/10-speed cassettes on a Shimano Road Rotor requires a 1.85 mm spacer.Manufacturer Number:LKVTSR35DKHCl24BeaStQR5AluCRNipbck + LKHTSR35DCHCl28BeaStQR5AluHg10113tCRNipbck
28″ set (front 9×100 + rear 10×135) SRAM XDR:
Freehub:SRAM XDRGearing:11-/12-speedNote:A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub body.Manufacturer Number:LKVTSR35DKHCl24BeaStQR5AluCRNipbck + LKHTSR35DCHCl28BeaStQR5AluXDXDR3tCRNipbck
28″ set (front 12×100 + rear 12×142) Campy:
Freehub:CampagnoloGearing:9-/10-/11-/12-speedManufacturer Number:LKVTSR35DKHCl24BeaSt12mmAluCRNipbck + LKHTSR35DCHCl28BeaSt12mmAluCam1011123tCRNipbck
28″ set (front 12×100 + rear 12×142) Shimano:
Freehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:The assembly of 8-/9-/10-speed cassettes on a Shimano Road Rotor requires a 1.85 mm spacer.Manufacturer Number:LKVTSR35DKHCl24BeaSt12mmAluCRNipbck + LKHTSR35DCHCl28BeaSt12mmAluHg10113tCRNipbck
28″ set (front 12×100 + rear 12×142) SRAM XDR:
Freehub:SRAM XDRGearing:11-/12-speedNote:A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub body.Manufacturer Number:LKVTSR35DKHCl24BeaSt12mmAluCRNipbck + LKHTSR35DCHCl28BeaSt12mmAluXDXDR3tCRNipbck
28″ set (front 15×100 + rear 12×142) Campy:
Freehub:CampagnoloGearing:9-/10-/11-/12-speedManufacturer Number:LKVTSR35DKHCl24BeaSt15mmAluCRNipbck + LKHTSR35DCHCl28BeaSt12mmAluCam1011123tCRNipbck
28″ set (front 15×100 + rear 12×142) Shimano:
Freehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:The assembly of 8-/9-/10-speed cassettes on a Shimano Road Rotor requires a 1.85 mm spacer.Manufacturer Number:LKVTSR35DKHCl24BeaSt15mmAluCRNipbck + LKHTSR35DCHCl28BeaSt12mmAluHg10113tCRNipbck
28″ set (front 15×100 + rear 12×142) SRAM XDR:

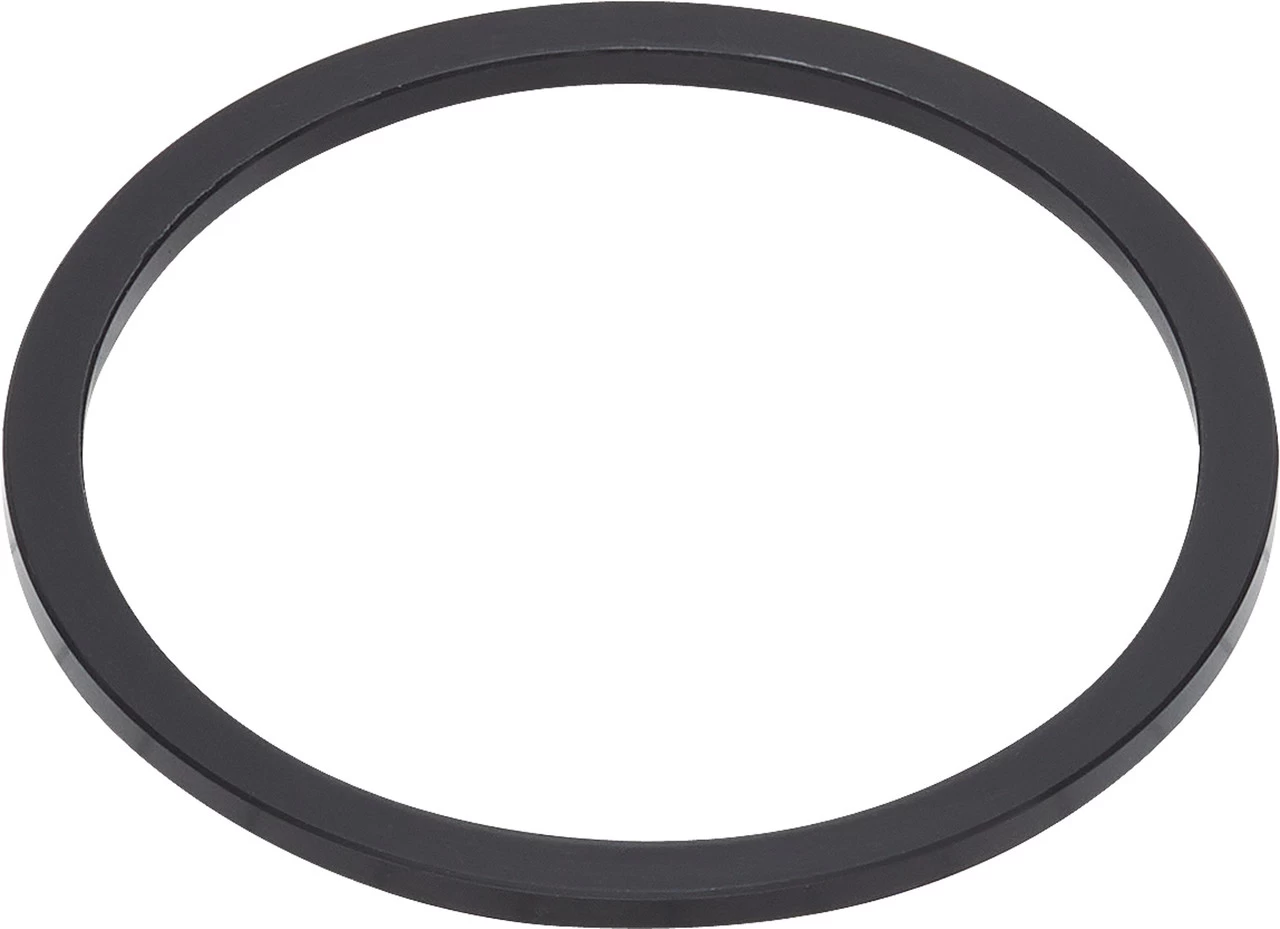

Freehub:SRAM XDRGearing:11-/12-speedNote:A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub body.Manufacturer Number:LKVTSR35DKHCl24BeaSt15mmAluCRNipbck + LKHTSR35DCHCl28BeaSt12mmAluXDXDR3tCRNipbckContents:1 x tune TSR35 Center Lock Disc 28″ wheelset (front and rear wheel)1 x spacer (only for version with Shimano or SRAM XDR freehub)
