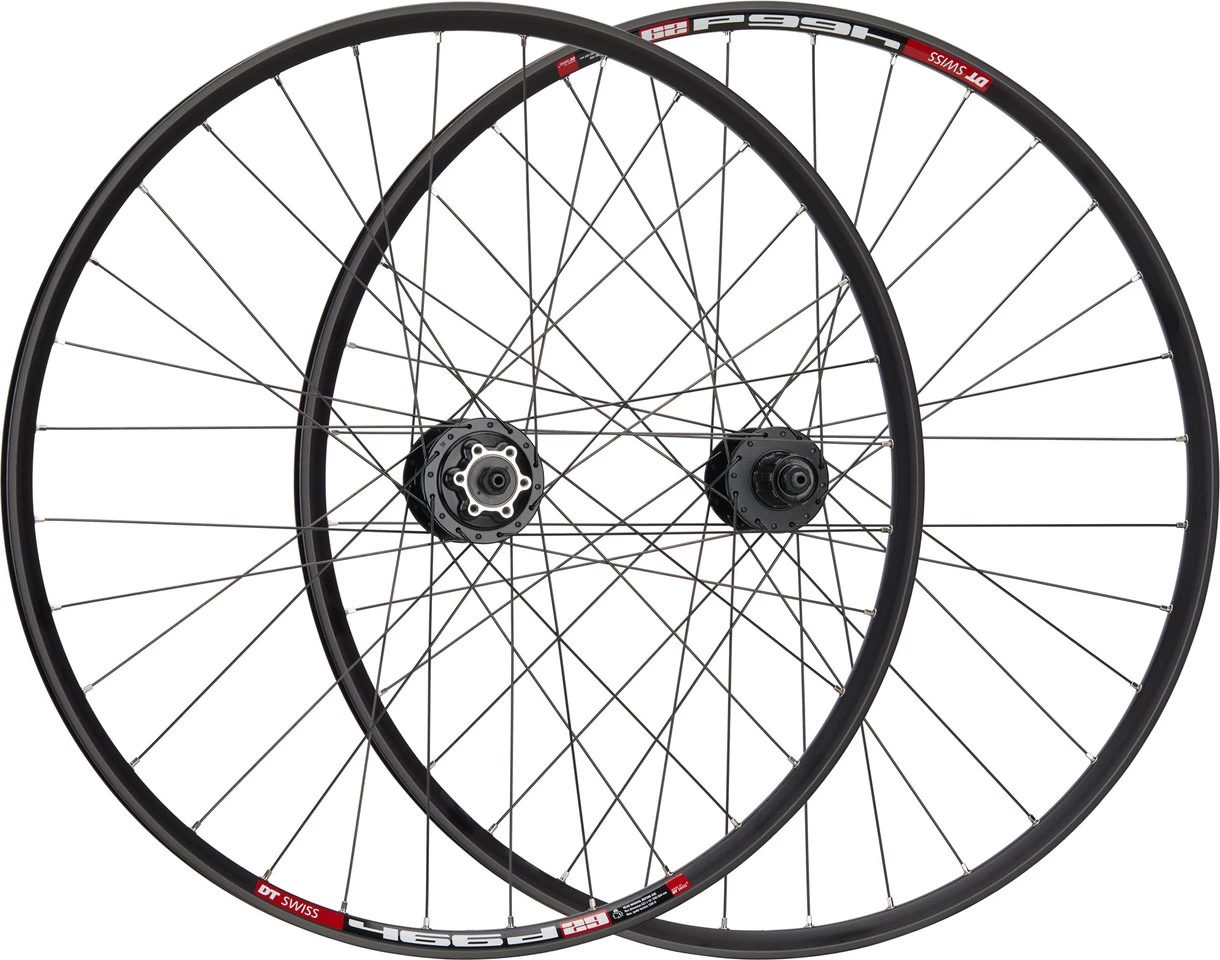

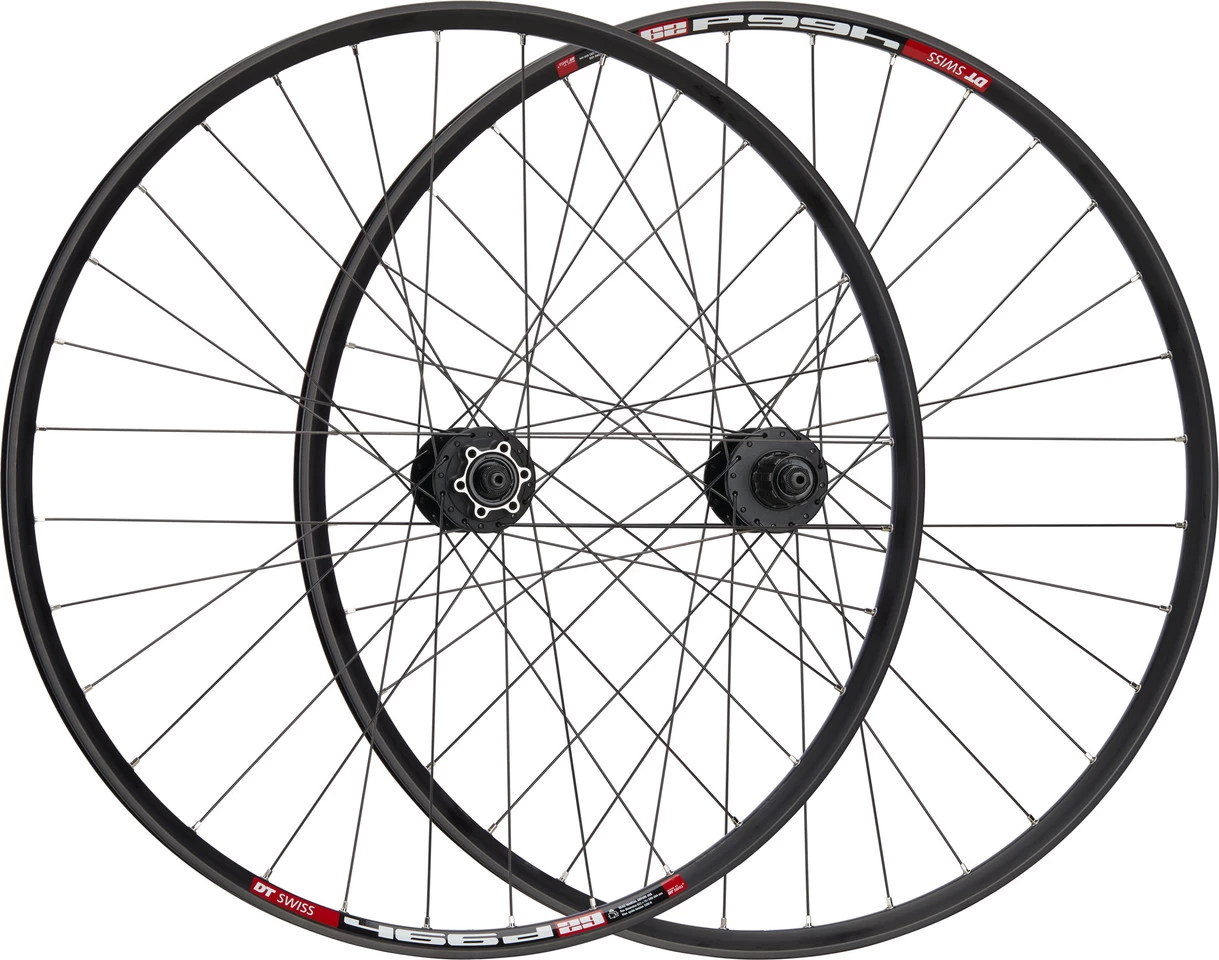

Urban Alivio 6-Bolt Disc DT Swiss 466d 28″ Wheelset

The bc basic City & Touring Wheelset with DT 466 Disc Rims and Shimano Alivio Hubs

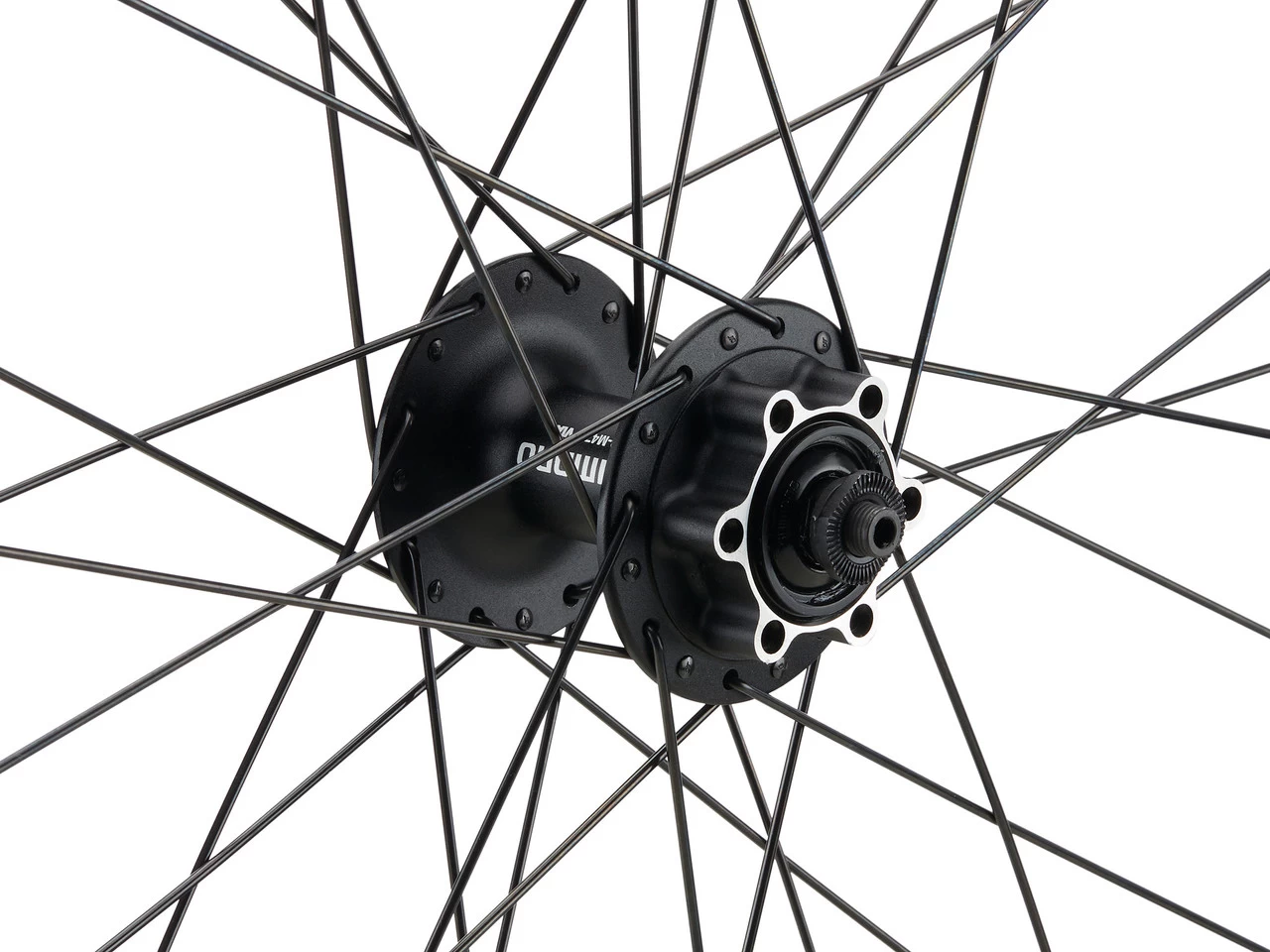

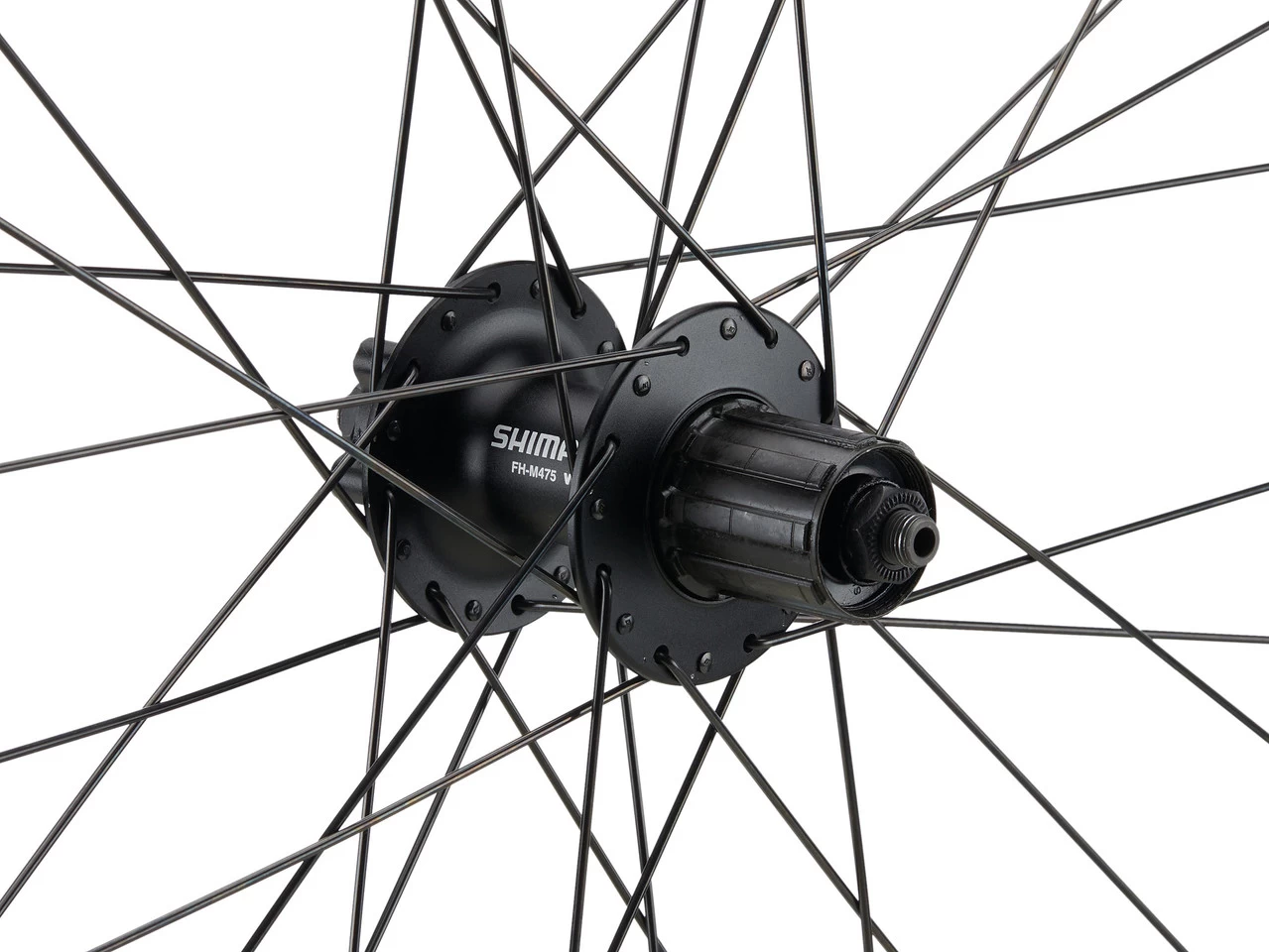

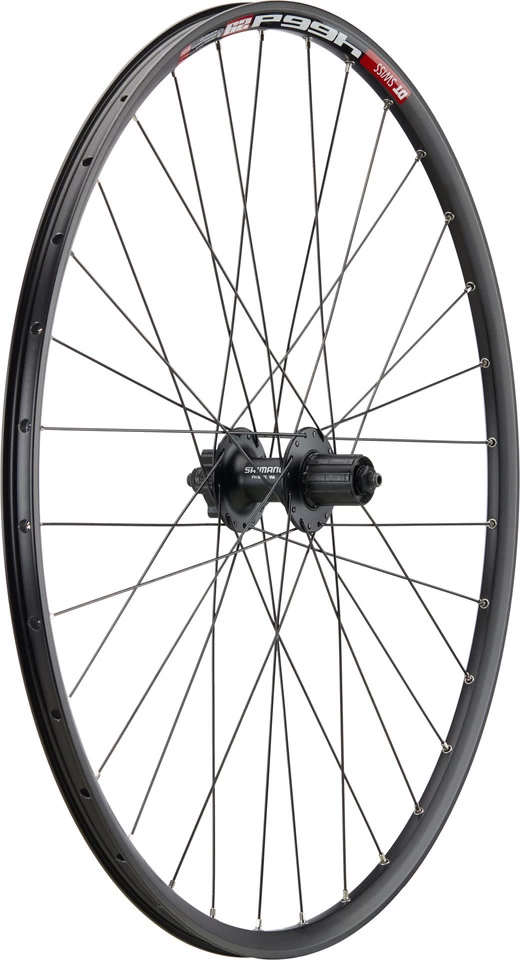

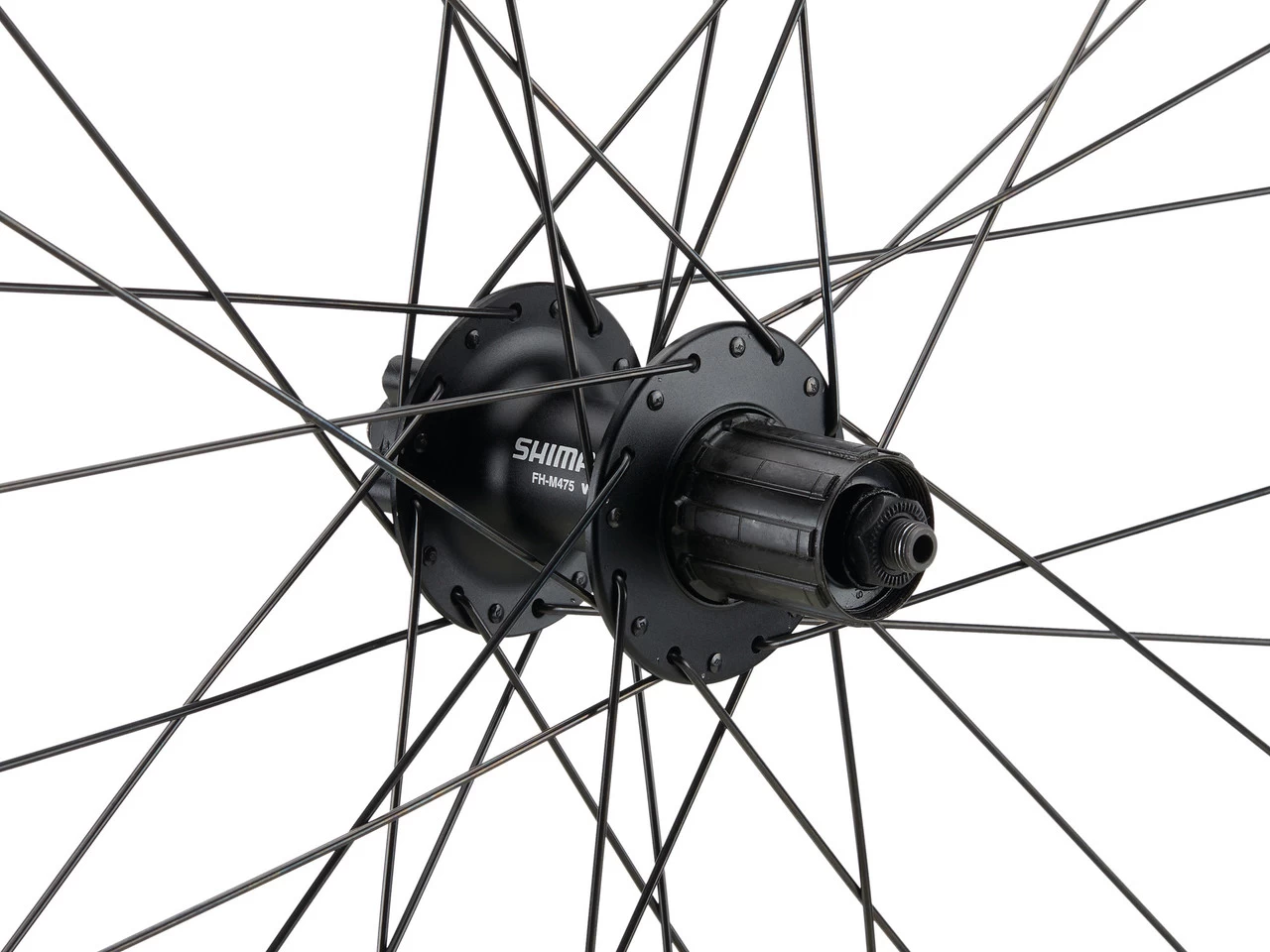

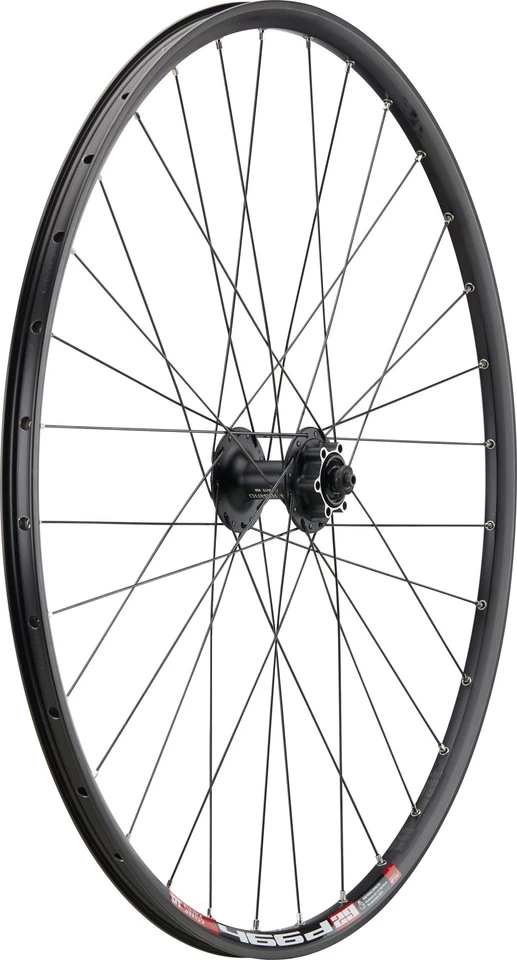

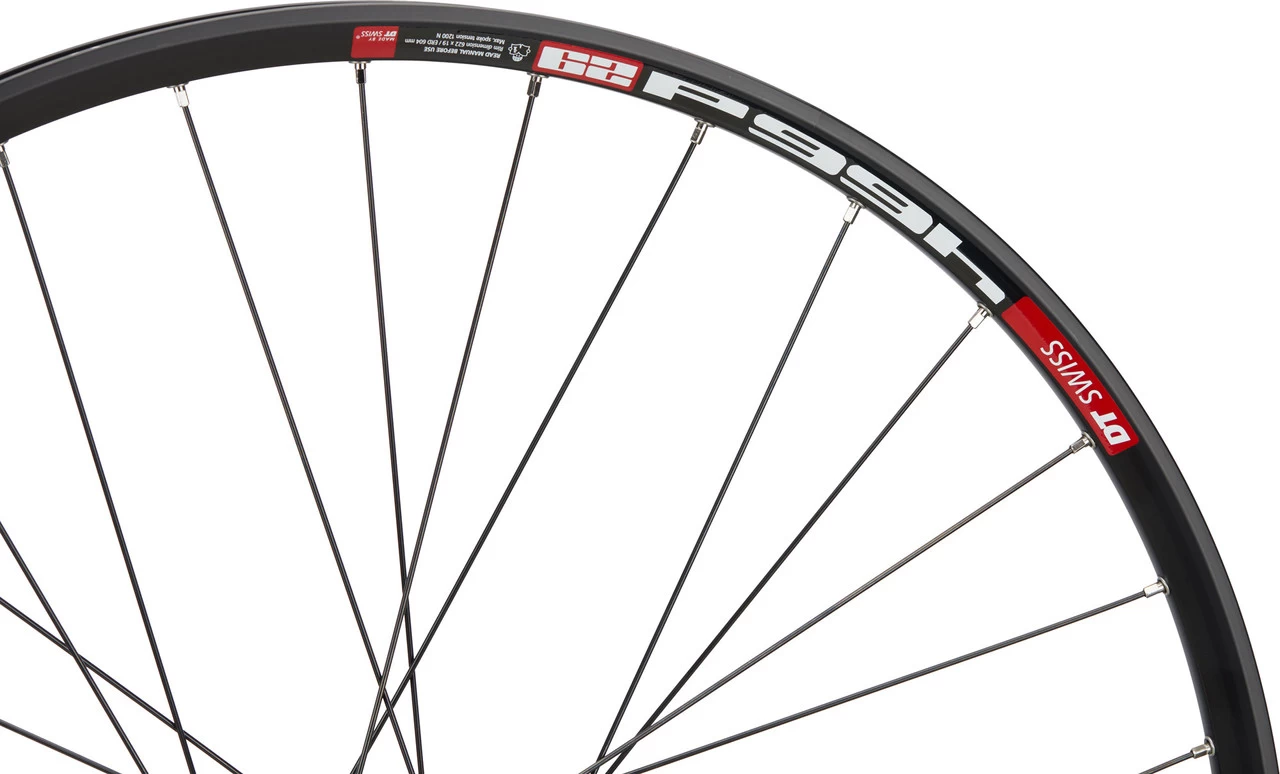

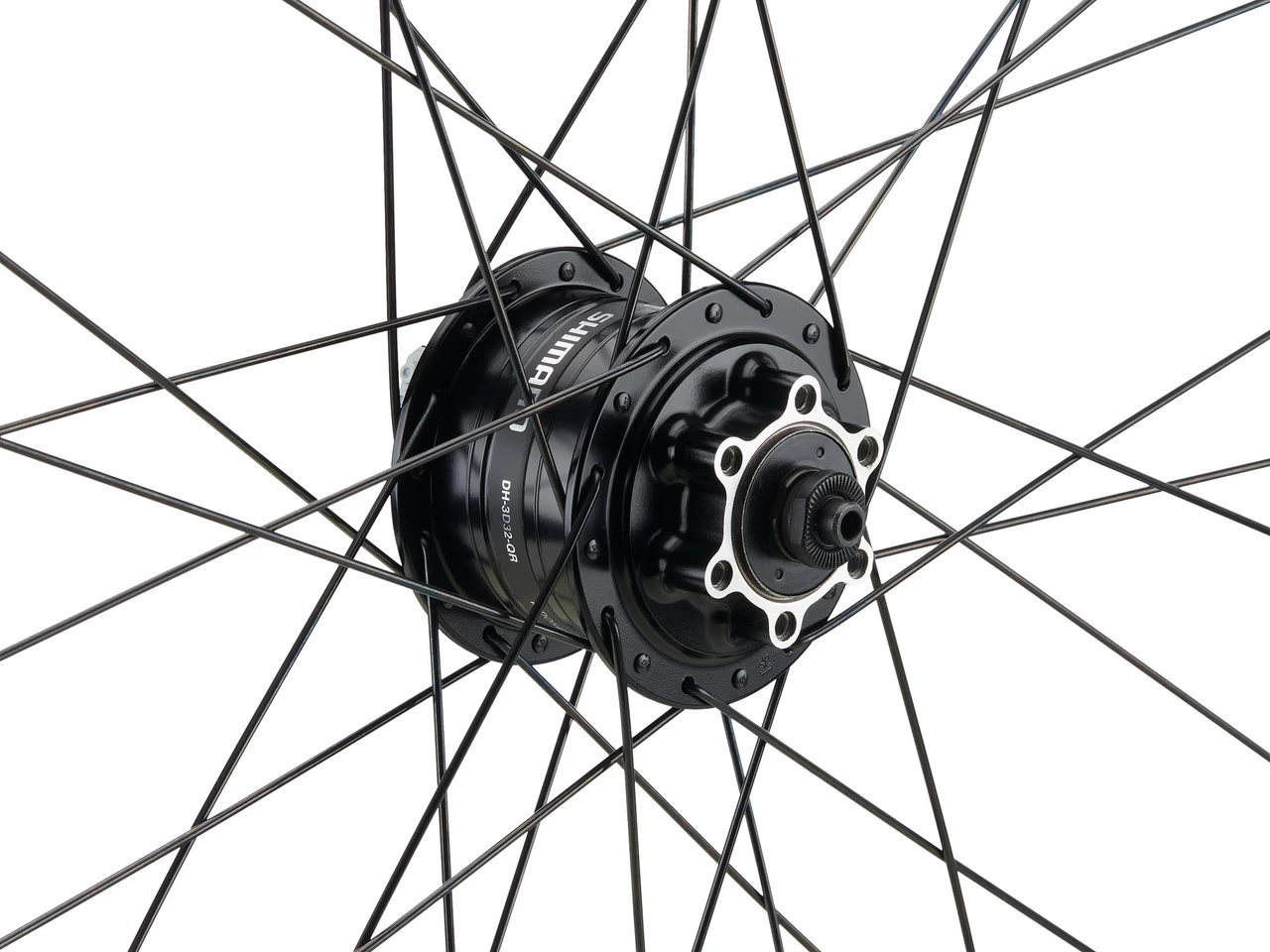

These bc basic 28″ wheels for city or touring are based on the 466d aluminium rim from DT Swiss. They are 19 mm wide on the inside, and are characterised by their stability and resilience. At the centre are the Shimano HB-M475 and FH-M475 6-bolt disc hubs for quick-release mounting, which provide reliable Alivio-level function. The front wheel is also available with the DH-3D32 hub dynamo from Shimano, so that you can fit a lighting system that conforms to road traffic regulations. The wheelset is laced with round DT Factory spokes.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of used batteries and electrical equipment can be found here.
Specifications:Application:City & TouringWheel Size:28″Tyre Type:clincher tyreNumber of Spokes:32Brake Type:6-bolt discTubeless System:noneTechnical Information – Rim:Type:DT Swiss 466dRim Flange:with hookDimensions (ETRTO):19-622Inner Width:19 mmOuter Width:24.5 mmDepth:19 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:aluminiumTechnical Information – Front Hub:Type:Shimano HB-M475Over Locknut Dimension:9 x 100 mm quick releaseBody Material:aluminiumTechnical Information – Front Dynamo Hub:Type:Shimano DH-3D32-QROver Locknut Dimension:9 x 100 mm quick releaseOutput:6V/3W (according to StVZO)Efficiency:min. 30%Body Material:aluminiumSeals:contactWire Connector:E2-TYP (= meets current European standards for two lights)Street Use in Germany:yesCheck Number:K~~912Technical Information – Rear Hub:Type:Shimano FH-M475Over Locknut Dimension:10 x 135 mm quick releaseBody Material:aluminiumFreehub Body Material:steelFreehub Body:pawlsTechnical Information – Lacing:Front Lacing Pattern:3-crossRear Lacing Pattern:3-crossSpoke Type:DT Factory / round (2.0 mm)Spoke Size:290 mm/292 mm (front l/r), 288 mm (front hub dynamo), 290 mm/290 mm (rear l/r)Spoke Material:stainless steelNipple Size:12 mm (length)Nipple Material:brassApproved For:Weight Limit (Rim):110 kg system weight (rider + bike + gear)Features:sturdy, durable rims for everyday useanodised rims and hub bodiessteel axlesColour Info:black:
Rim: blackHubs: blackSpokes: blackNipples: silverModels:28″ set (front 9×100 + rear 10×135) Shimano:
Freehub:Shimano MTBGearing:8-/9-/10-/11-speedManufacturer Number:83999-2-9818
28″ set (front 9×100 dynamo + rear 10×135) Shimano:

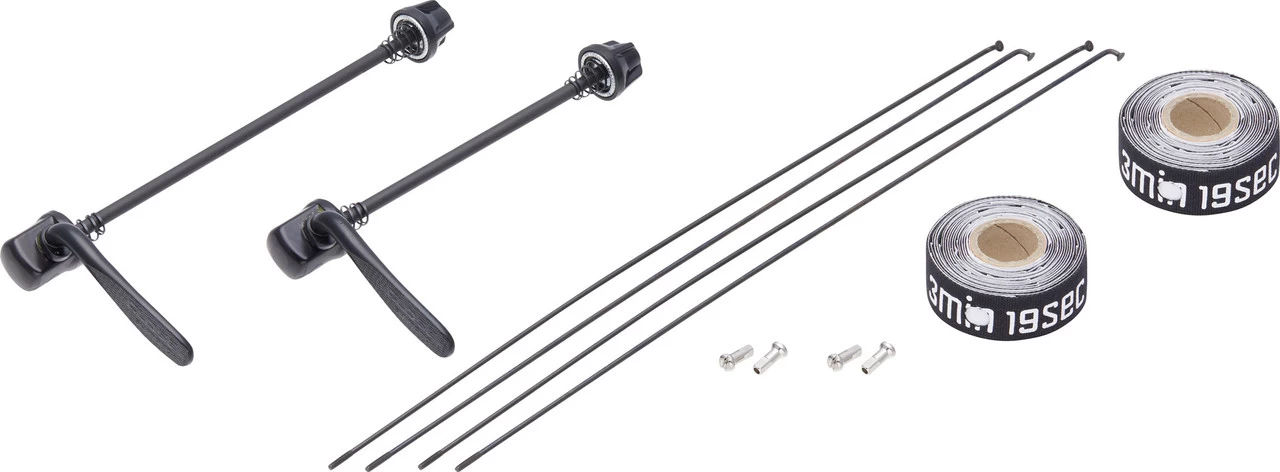

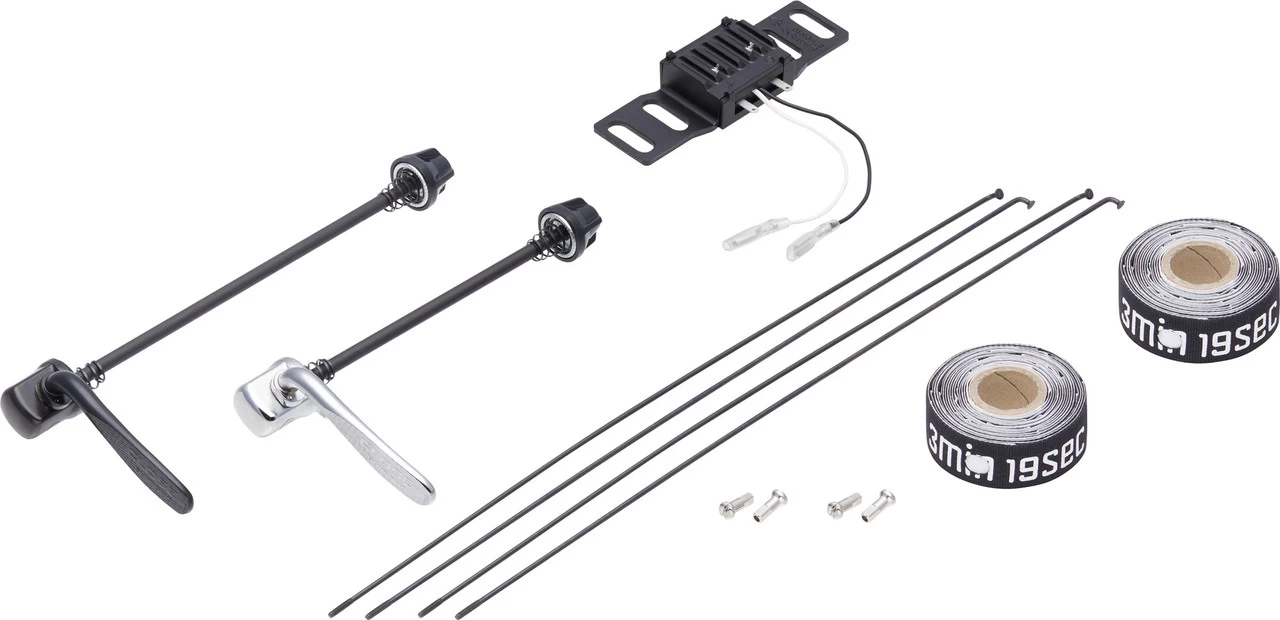

Freehub:Shimano MTBGearing:8-/9-/10-/11-speedManufacturer Number:83999-2-10759Contents:1 x bc basic Urban Alivio 6-Bolt Disc DT Swiss 466d Wheelset (front or front dynamo hub and rear, laced and trued)2 x quick releases2 x rolls of rim tape4 x spare spokes with nipples1 x connector (front dynamo hub only)1 x overvoltage protector (front dynamo hub only)
