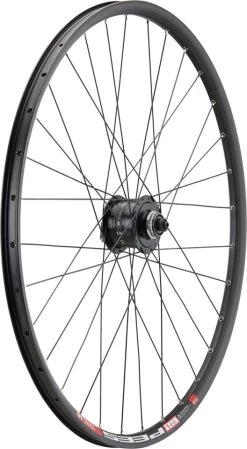

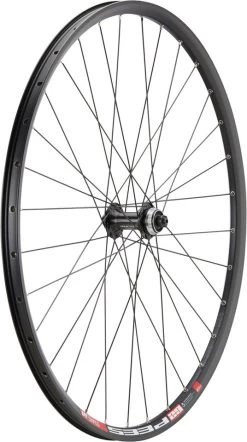

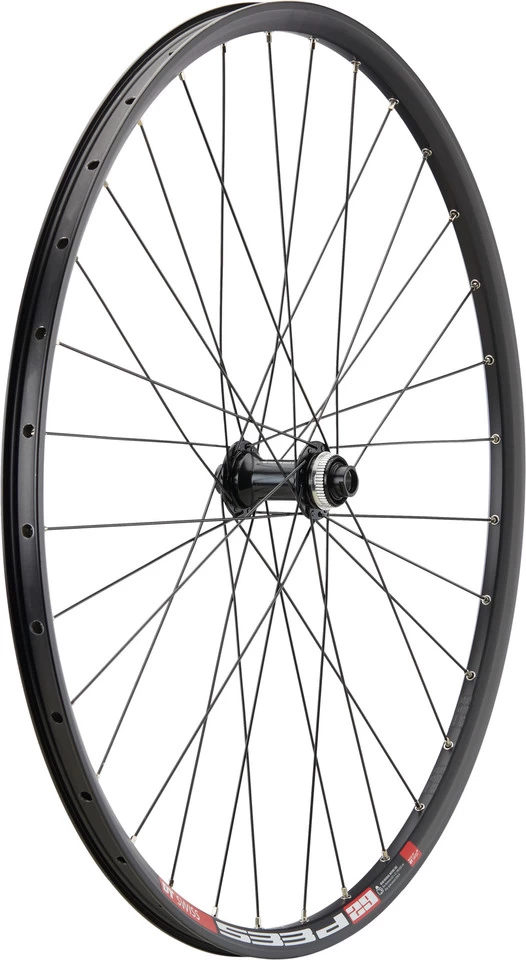

Urban Deore Center Lock Disc DT Swiss 533D 28″ Wheel

The bc basic Urban Wheel with DT 533 Disc Rim and Shimano Deore Hub

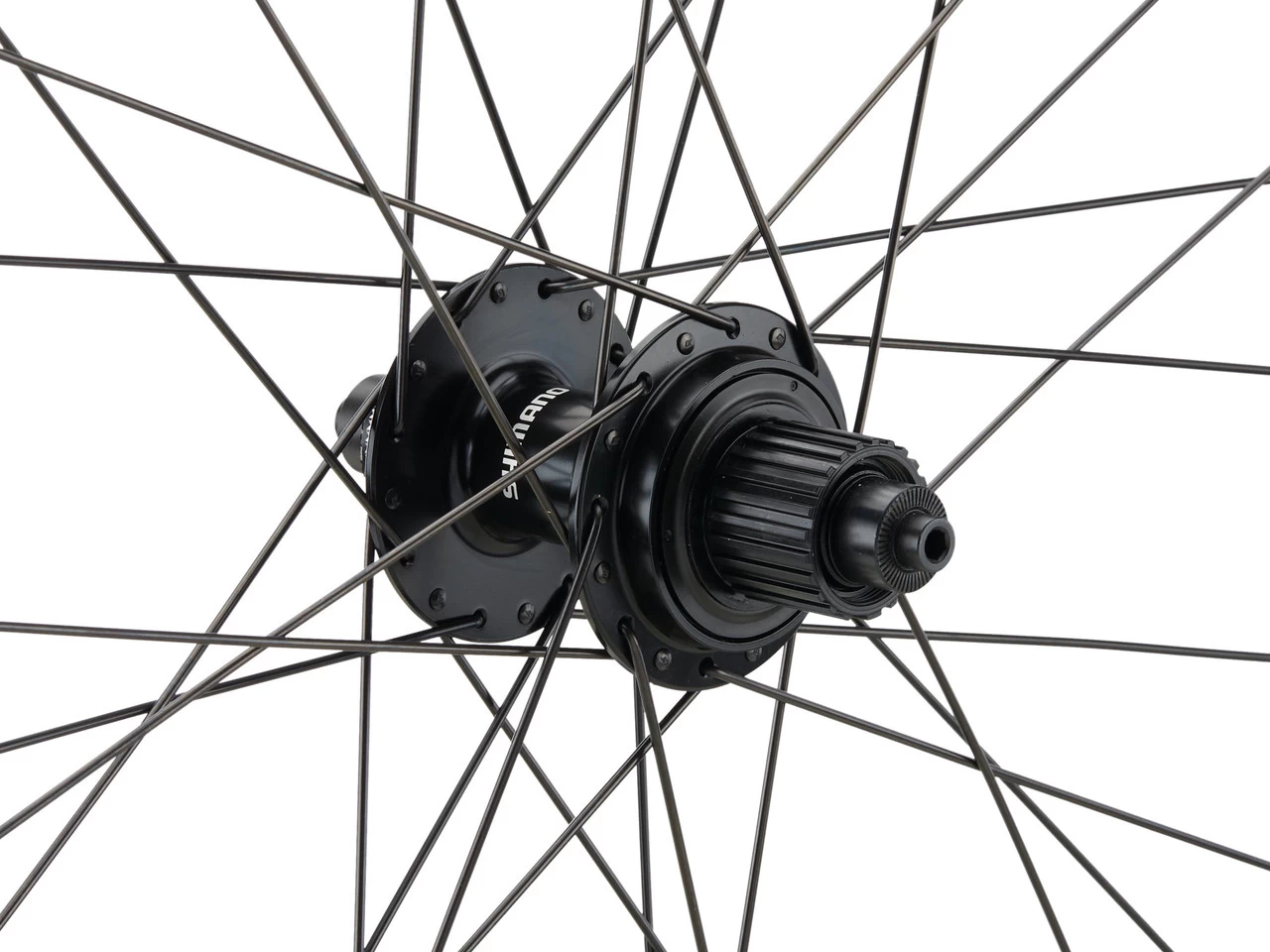

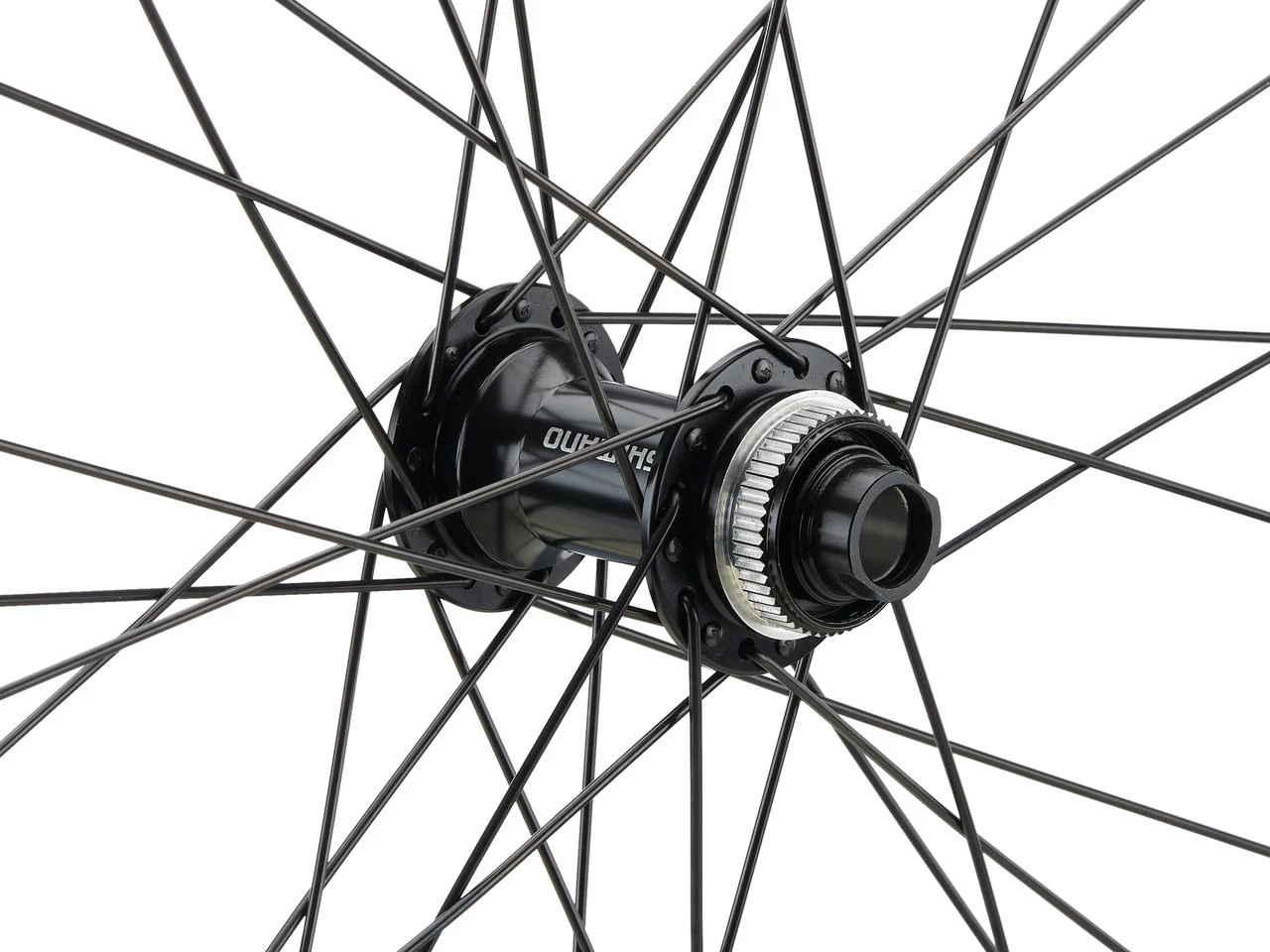

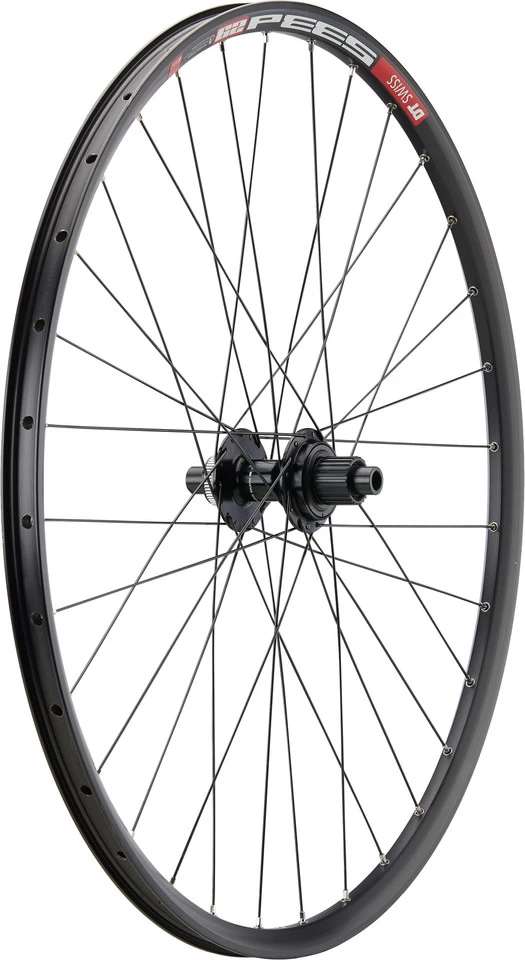

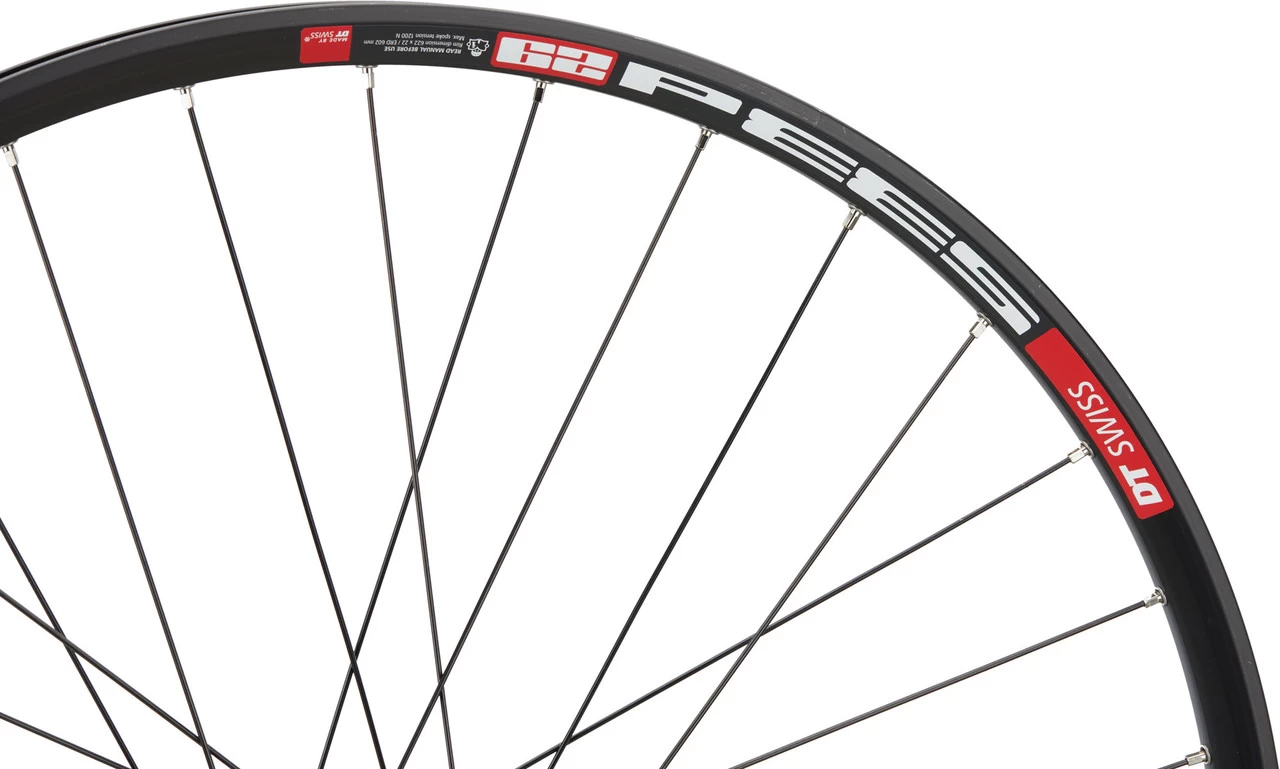

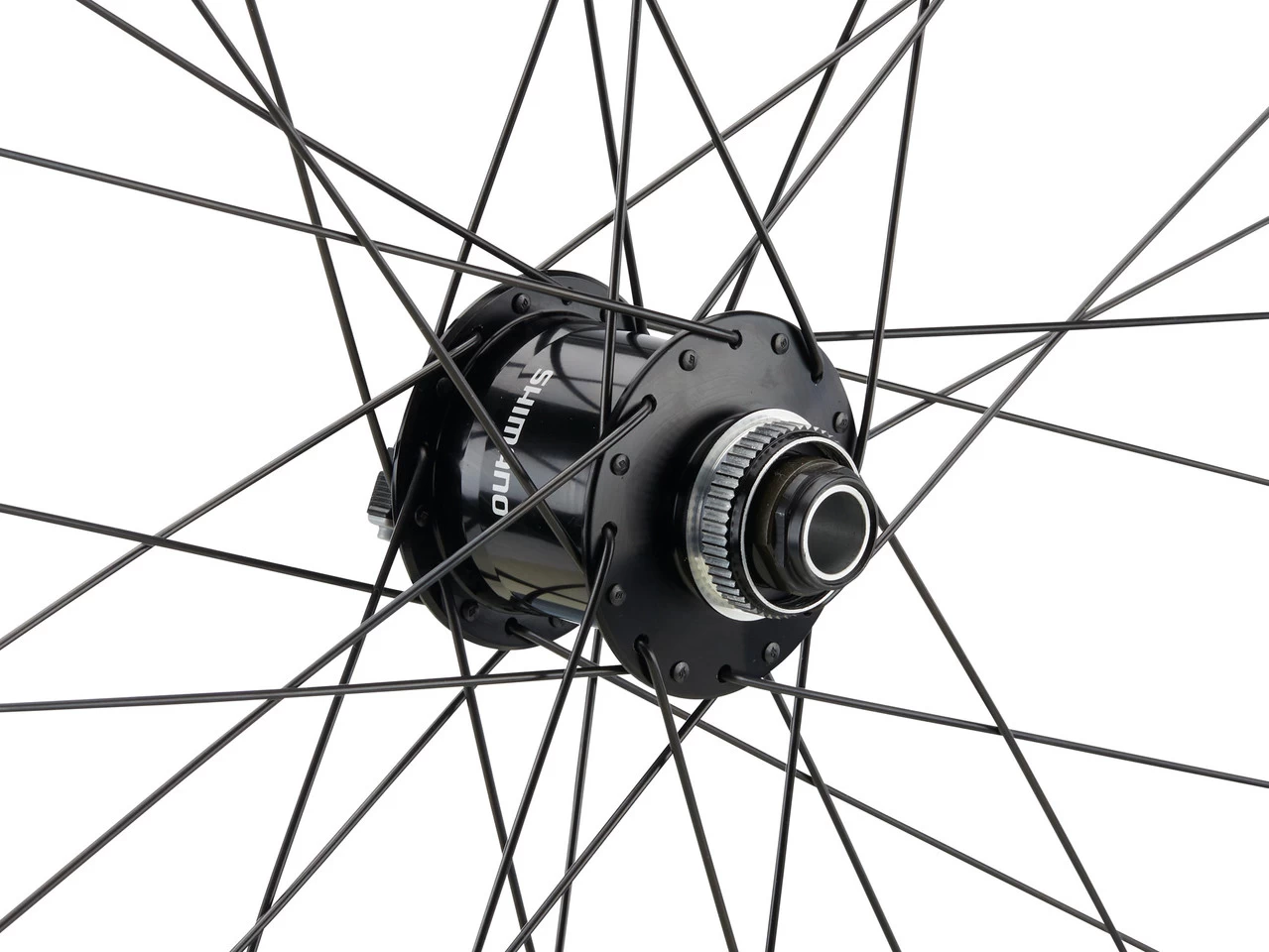

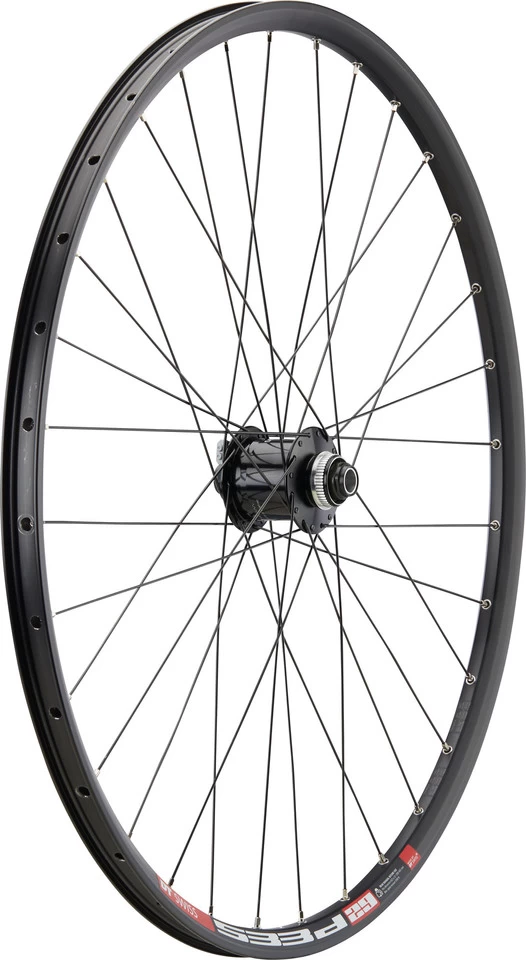

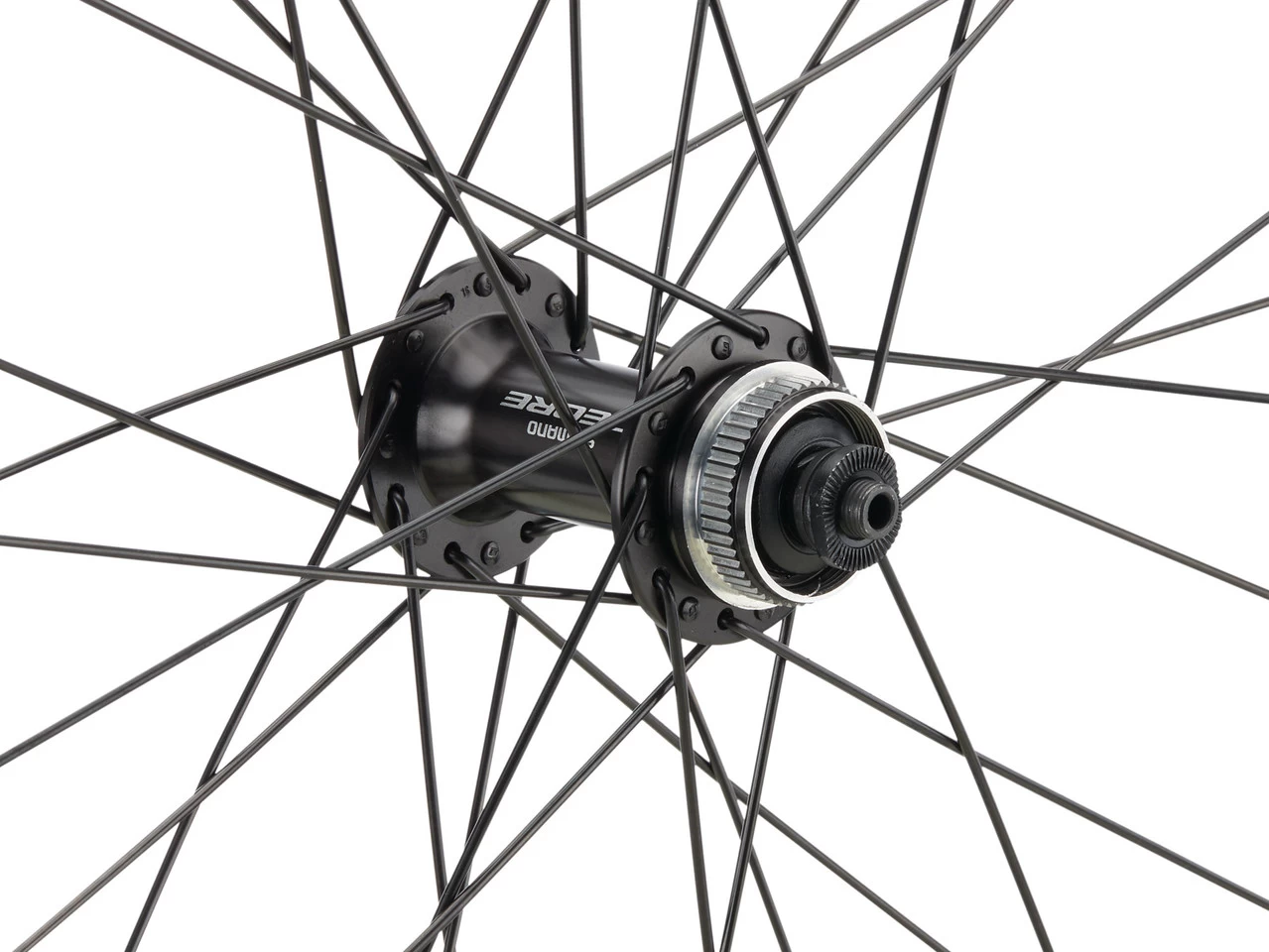

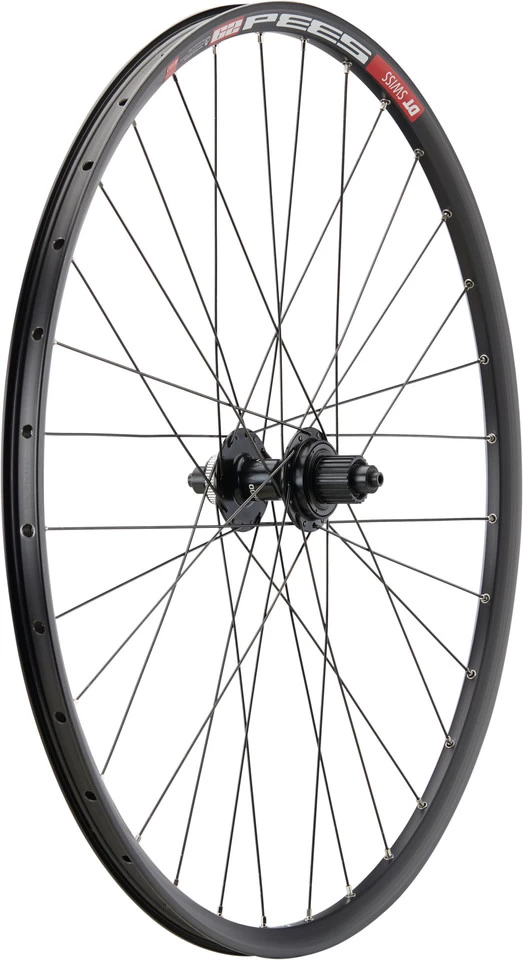

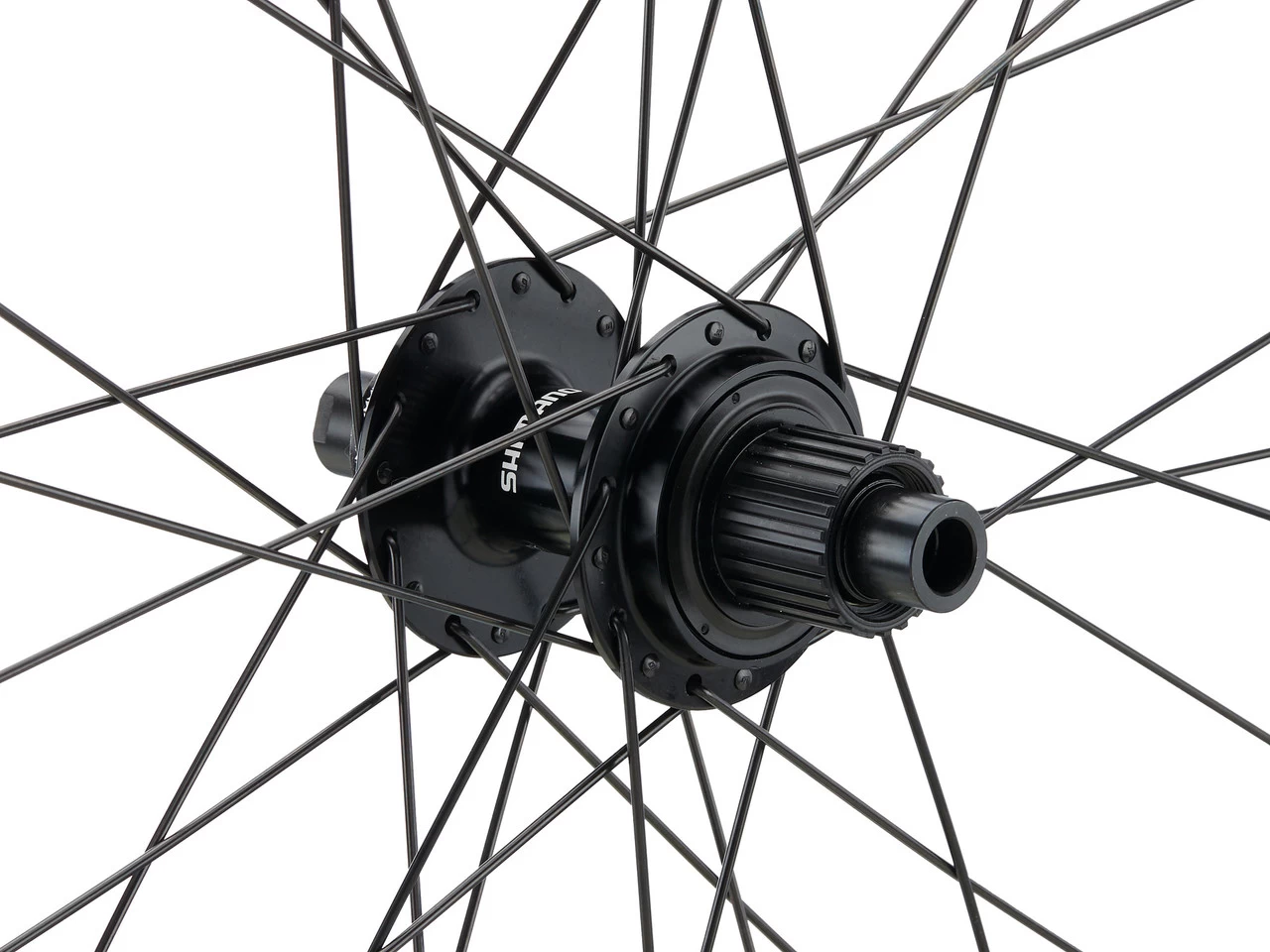

The 28″ wheel from bc basic for city, touring or trekking use is based on the 533D aluminium rim from DT Swiss. This one is 22 mm wide and stands out for its durability and robust suitability for everyday use. Tubeless mounting is also possible. In the centre is a Shimano Center Lock Disc hub for quick release or thru-axle, which ensures reliable function at Deore level. The front wheel is also available with a Shimano hub dynamo in various over locknut dimensions so that you can fit a lighting system that conforms to road traffic regulations. For the rear wheel, you have the choice between a Micro-Spline freehub for MTB 12-speed cassettes or a conventional Shimano freehub. The whole thing was laced with round DT Factory spokes.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of used batteries and electrical equipment can be found here.
Specifications:Application:City & TouringWheel Size:28″Tyre Type:clincher tyreNumber of Spokes:32Brake Type:Center Lock DiscTubeless System:Tubeless ReadyTechnical Information – Rim:Type:DT Swiss 533DRim Flange:with hookDimensions (ETRTO):22-622Inner Width:22 mmOuter Width:28 mmDepth:20.5 mmERD:602 mm (nipple slot)Valve Hole Diameter:SV/Presta (6.5 mm)Rim Material:aluminiumTechnical Information – Front Hub:Type:Shimano Deore HB-M6000 or HB-MT400Over Locknut Dimension:9 x 100 mm quick release or 15 x 100 mm thru-axleBearings:cup & cone bearing (HB-M6000 only)Body Material:aluminiumTechnical Information – Front Dynamo Hub:Type:Shimano DH-3D37-QR or DH-UR708-3D or DH-UR705-3DOver Locknut Dimension:9 x 100 mm quick release or 15 x 100 mm thru-axle or 12 x 100 mm thru-axleOutput:6V/3W (according to StVZO)Efficiency:min. 30%Body Material:aluminiumSeals:contactWire Connector:E2-TYP (= meets current European standards for two lights)Street Use in Germany:yesCheck Number:K~~912 (DH-3D37), K~~1684 (DH-UR708), K~~1519 (DH-UR705)Technical Information – Rear Hub:Type:Shimano FH-MT401 or FH-MT400 or FH-MT410Over Locknut Dimension:10 x 135 mm quick release or 12 x 142 mm thru-axleBearings:cartridgeBody Material:aluminiumFreehub Body Material:steelFreehub Body:Pawls (Quick Engagement: 36 engagement points / 360°)Technical Information – Lacing:Front Lacing Pattern:3-crossRear Lacing Pattern:3-crossSpoke Type:DT Factory / round (2.0 mm)Spoke Size:
front 9 mm: 292 mmfront 15 mm: 292 mm/294 mm (l/r)front 9 mm ND: 288 mmfront 15 mm ND: 290 mmfront 12 mm ND: 288 mm/290 mm (l/r)rear 142 mm Shimano: 294 mm/292 mm (l/r)rear 142 mm Shimano MS: 292 mm/290 mm (l/r)rear 135 mm Shimano MS: 290 mm/288 mm (l/r)Spoke Material:stainless steelNipple Size:12 mm (length)Nipple Material:brassApproved For:Weight Limit (Rim):130 kg system weight (rider + bike + gear)Features:durable rim for tough everyday usepin joint rim jointrim holes silver eyeletedlacquered hub shell (HB-M6000: anodised)steel axle (HB-MT400: aluminium)Colour Info:black:
Rim: blackHub: blackSpokes: blackNipples: silverModels:28″ front 9×100:
Over Locknut Dimension:9 x 100 mm quick release (HB-M6000)Manufacturer Number:83680-2-10027
28″ front 9×100 dynamo:
Over Locknut Dimension:9 x 100 mm quick release (DH-3D37-QR)Manufacturer Number:83680-2-10471
28″ front 15×100:
Over Locknut Dimension:15 x 100 mm thru-axle (HB-MT400)Manufacturer Number:83680-2-9381
28″ front 15×100 dynamo:
Over Locknut Dimension:15 x 100 mm thru-axle (DH-UR708-3D)Manufacturer Number:83680-2-14061
28″ front 12×100 dynamo:
Over Locknut Dimension:12 x 100 mm thru-axle (DH-UR705-3D)Manufacturer Number:83680-2-10856
28″ rear 12×142 Shimano:
Over Locknut Dimension:12 x 142 mm thru-axle (FH-MT400)Freehub:Shimano MTBGearing:8-/9-/10-/11-speedManufacturer Number:83680-2-10430
28″ rear 10×135 Shimano Micro Spline:
Over Locknut Dimension:10 x 135 mm quick release (FH-MT401)Freehub:Shimano Micro SplineGearing:12-speedManufacturer Number:83680-2-14078
28″ rear 12×142 Shimano Micro Spline:

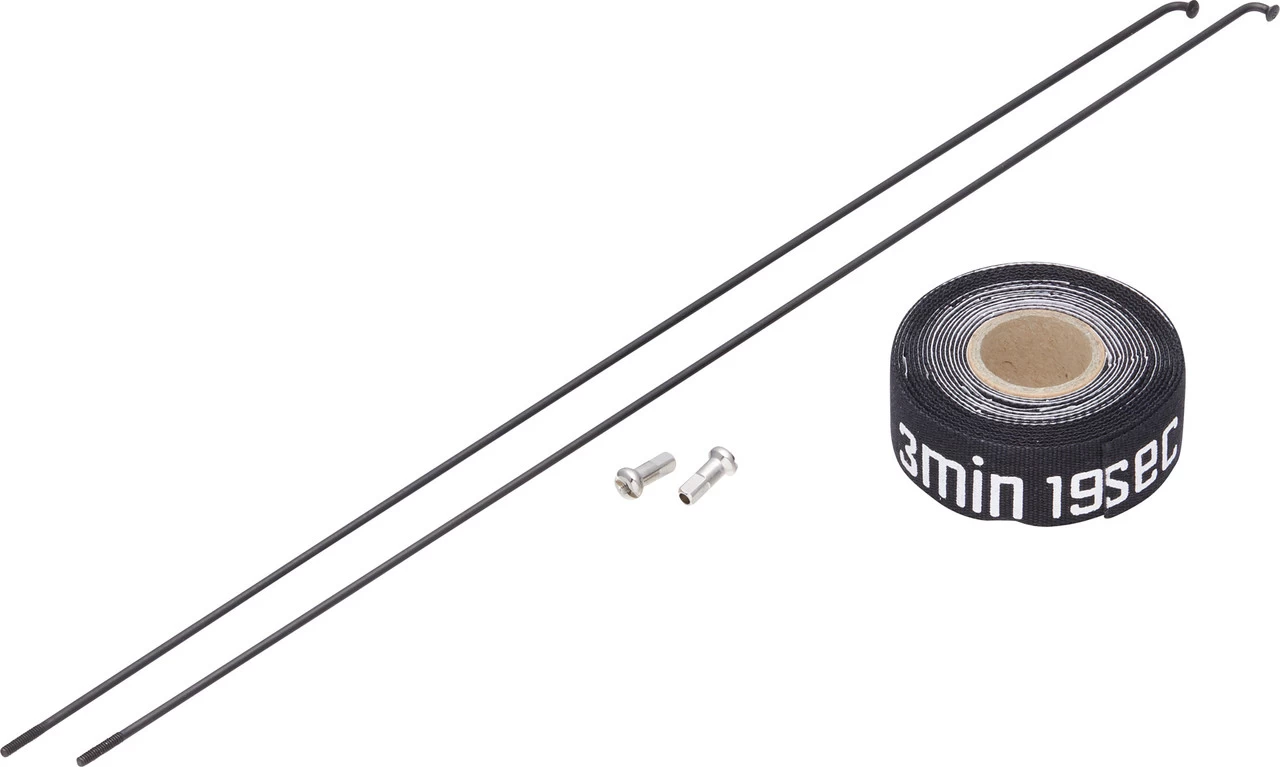

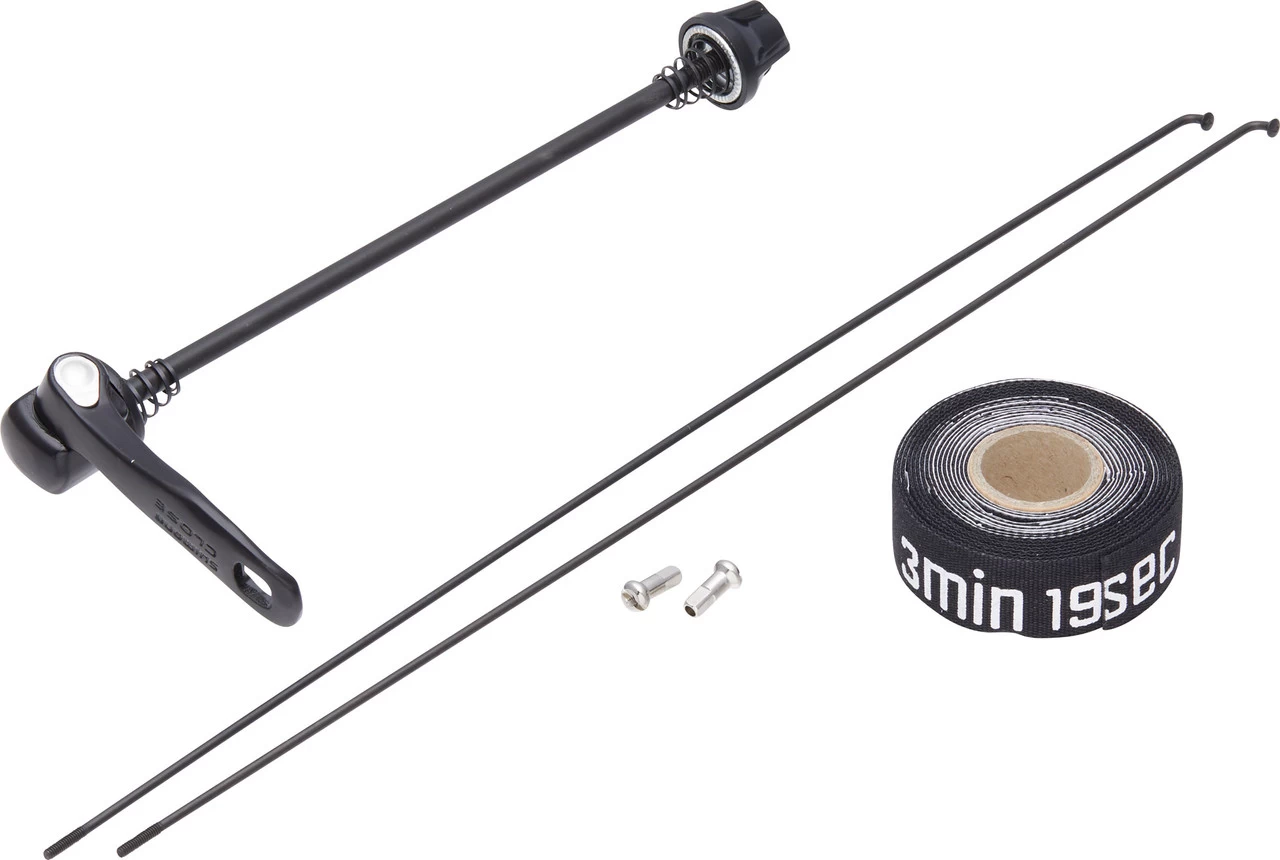

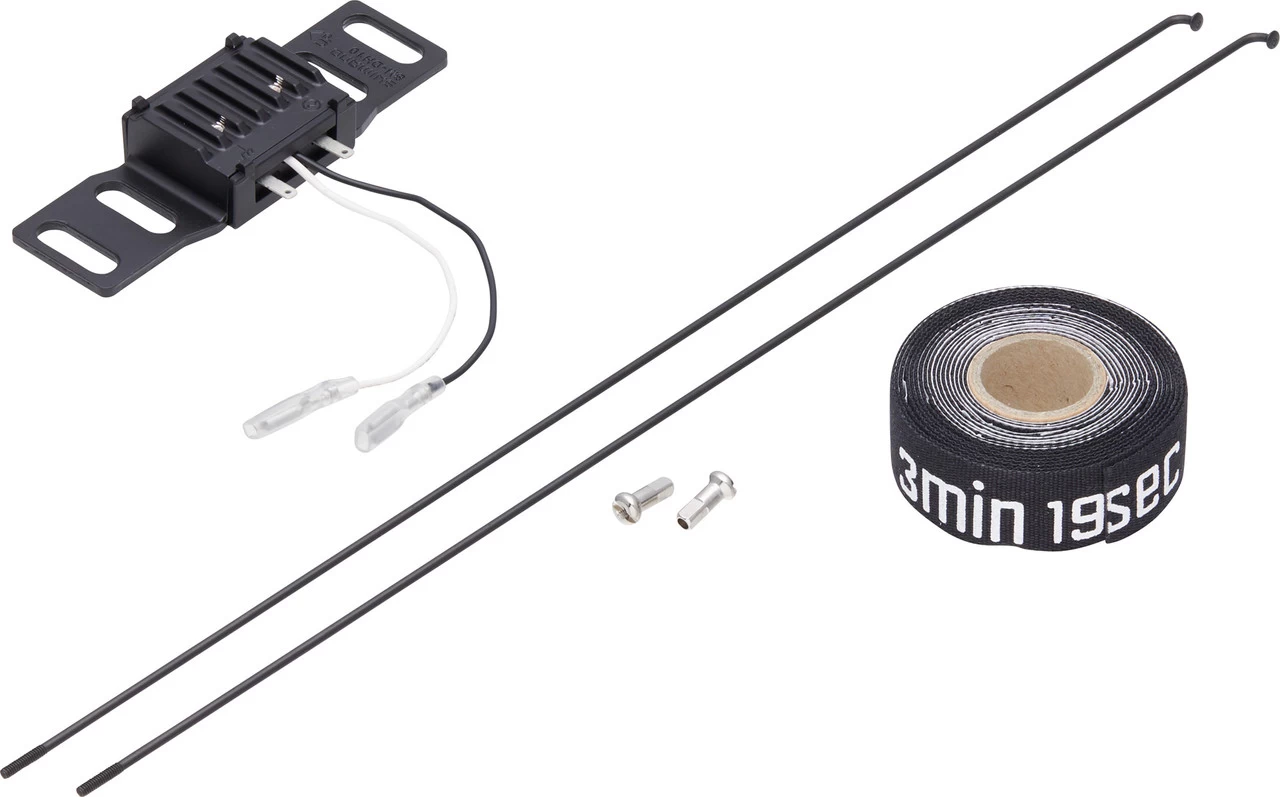

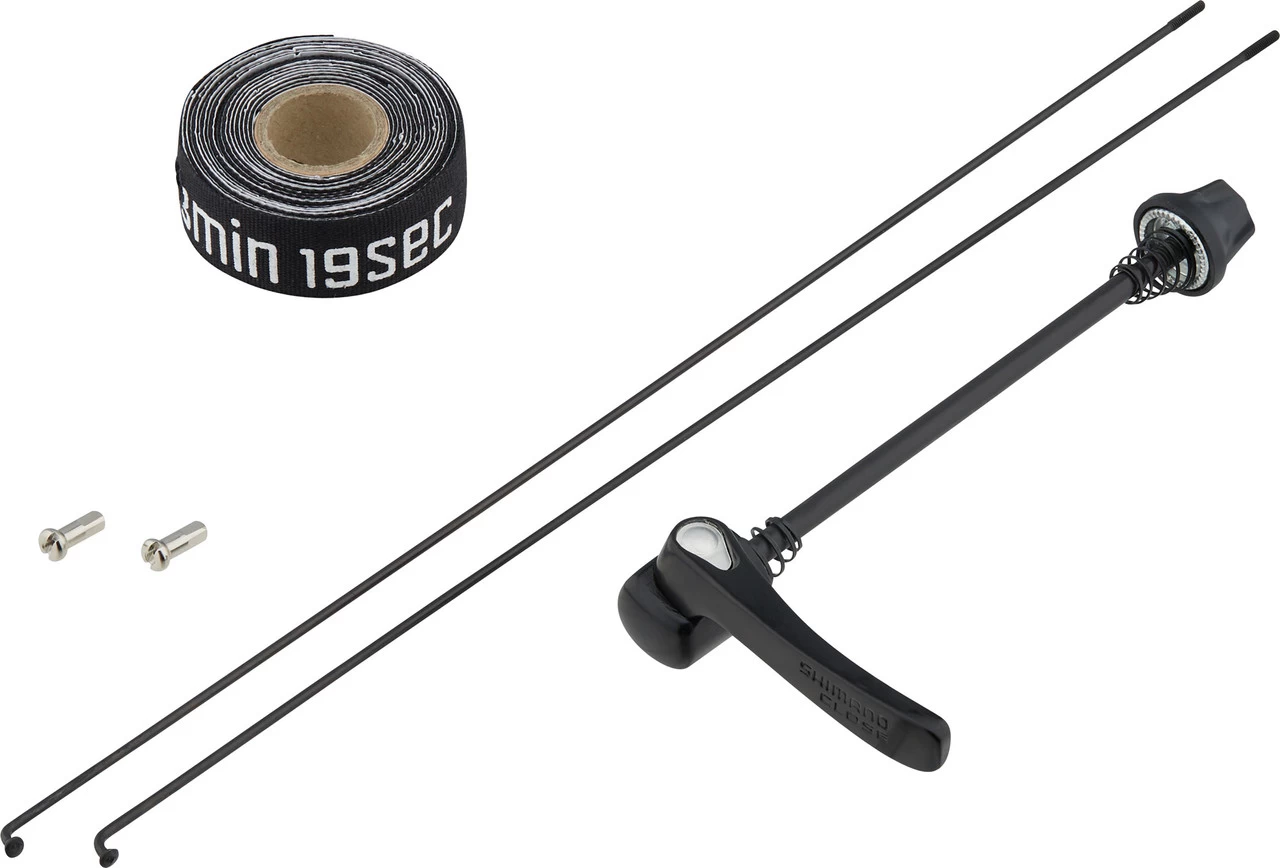

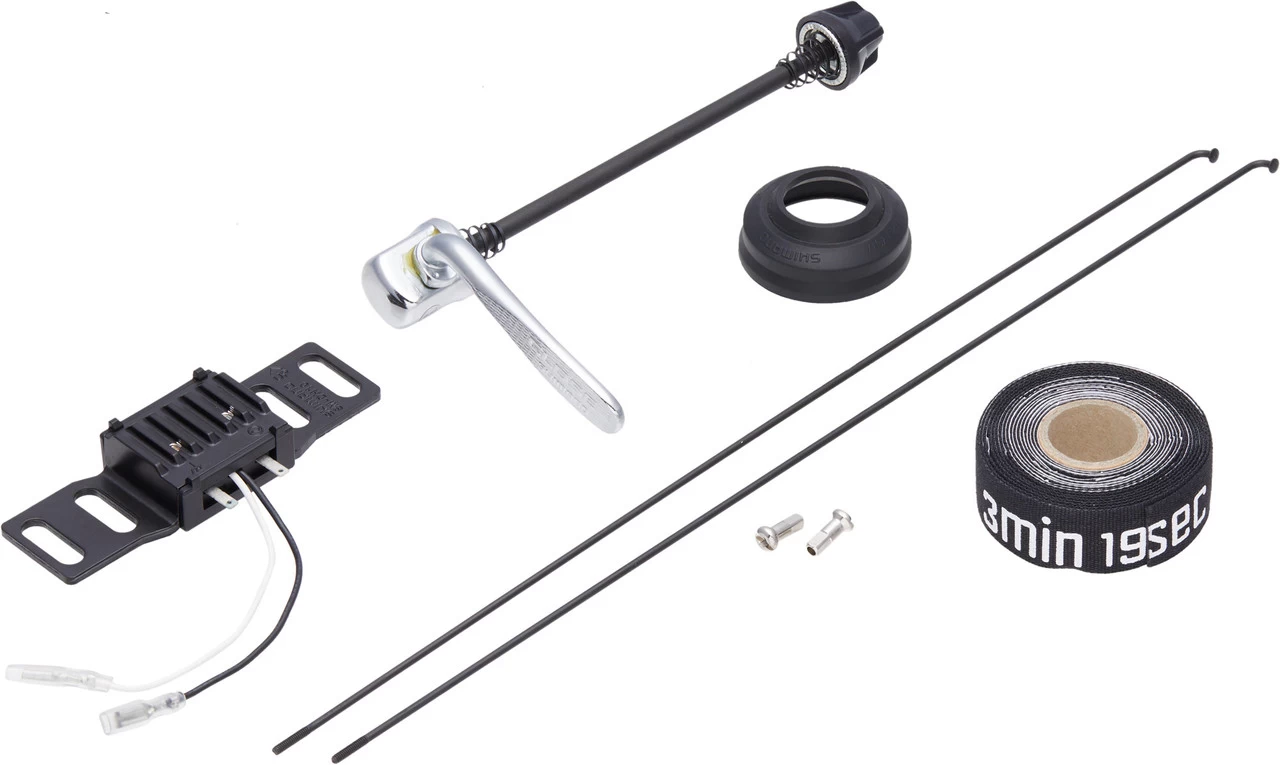

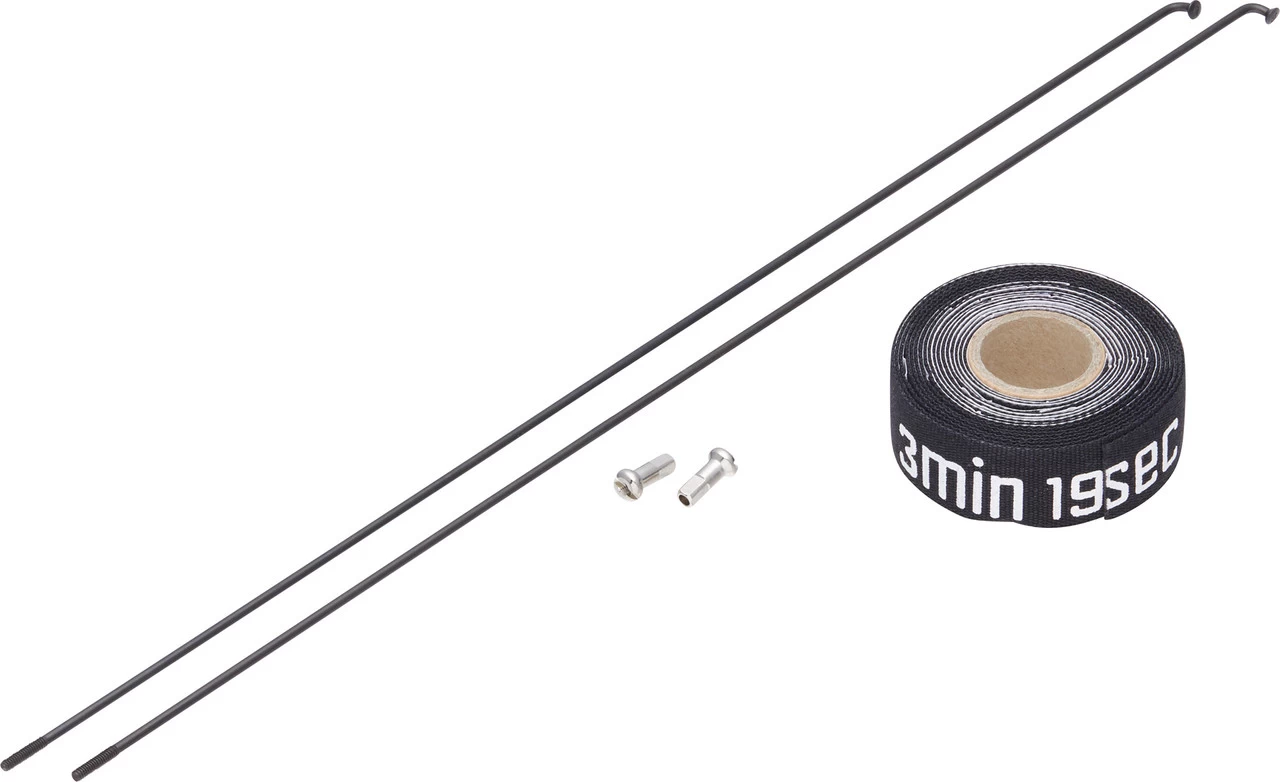

Over Locknut Dimension:12 x 142 mm thru-axle (FH-MT410)Freehub:Shimano Micro SplineGearing:12-speedManufacturer Number:83680-2-14079Contents:1 x bc basic Urban Deore Center Lock Disc DT Swiss 533D wheel (front wheel) or front dynamo hub or rear, laced and trued)1 x quick release (only for front 9×100 and rear 10×135)1 x roll of rim tape2 x spare spokes with nipples1 x connector (front dynamo hub only)1 x overvoltage protector (front dynamo hub only)
