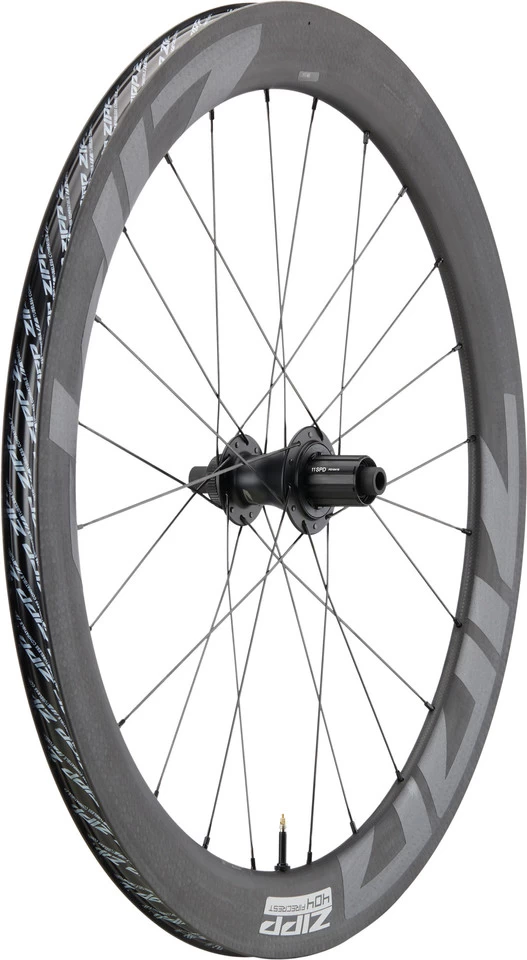

ZIPP 404 Firecrest® Carbon Tubeless Center Lock Disc Wheelset

The 404 Firecrest® Disc is a versatile road and gravel wheelset from Zipp based on 58mm high and 23mm wide hookless and tubeless carbon rims. It convinces in terms of aerodynamics, lightness and stability, and also stands out for its durability and responsiveness thanks to the ZR1 hubs.

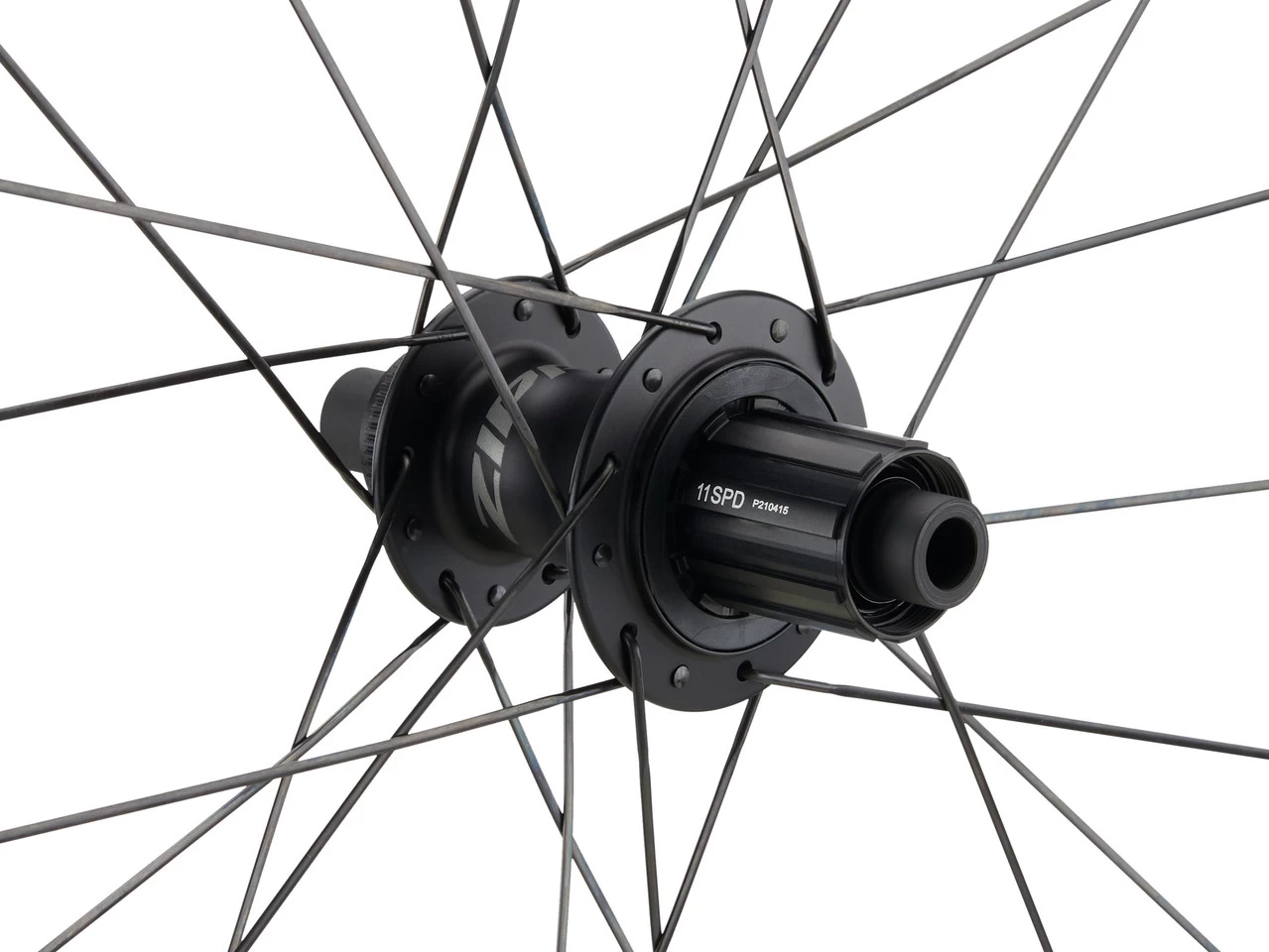

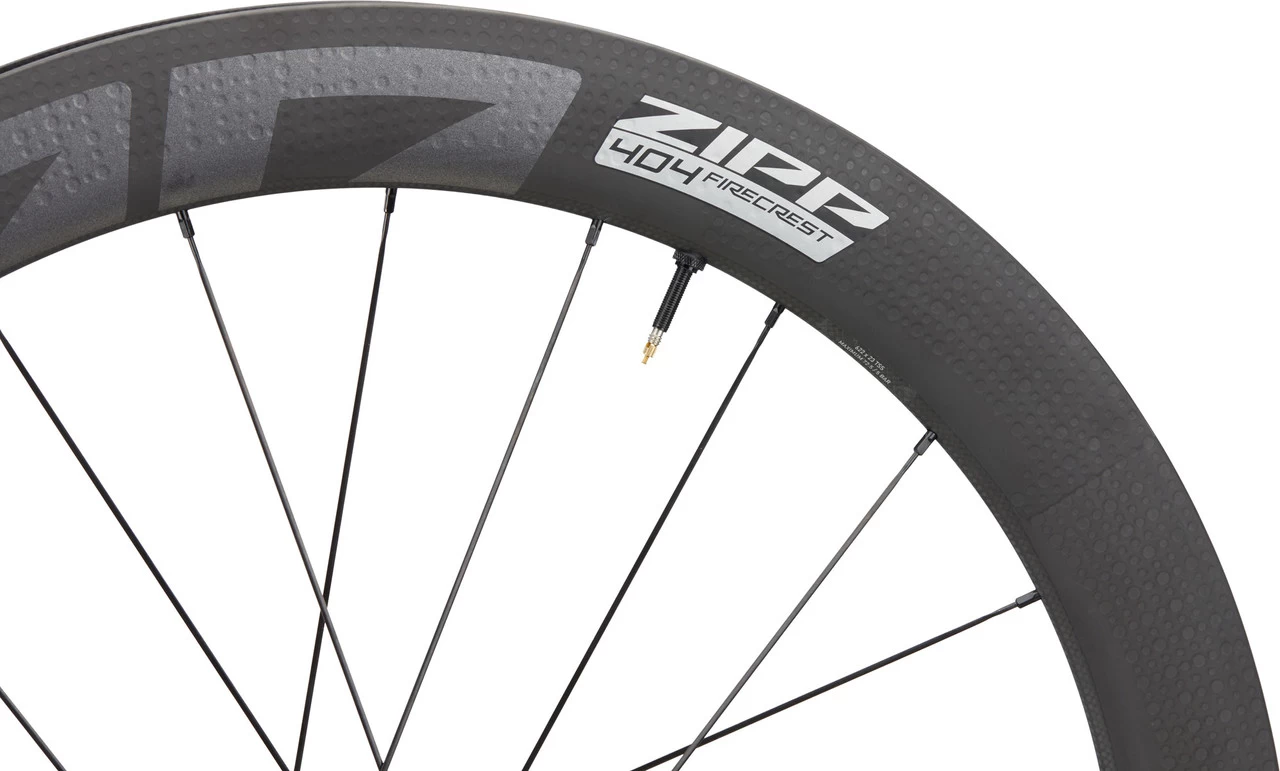

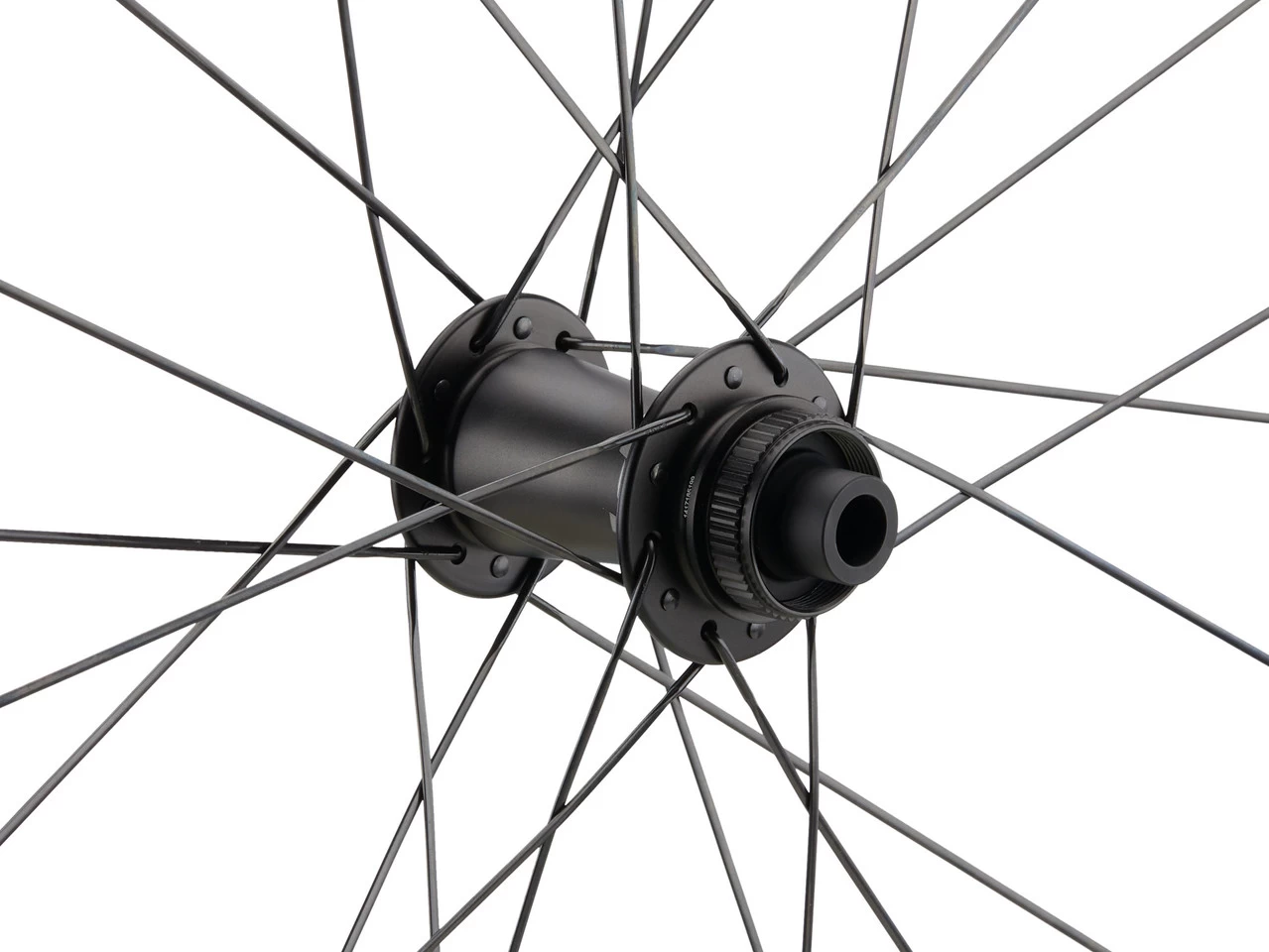

Specifications:Application:Road, Gravel, Triathlon & Time TrialWheel Size:28″Tyre Type:clincher tyreNumber of Spokes:24Brake Type:Center Lock DiscTubeless System:Tubeless ReadyTechnical Information – Rim:Type:Zipp FirecrestRim Flange:hooklessDimensions (ETRTO):23-622Inner Width:23 mmOuter Width:28 mmDepth:58 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:carbon (UD)Technical Information – Front Hub:Type:Zipp ZR1 DiscOver Locknut Dimension:12 x 100 mm thru-axleBearings:cartridge (stainless steel)Body Material:aluminiumTechnical Information – Rear Hub:Type:Zipp ZR1 DiscOver Locknut Dimension:12 x 142 mm thru-axleBearings:cartridge (stainless steel)Body Material:aluminiumFreehub Body Material:aluminiumFreehub Body:6 pawls (66 engagement points)Technical Information – Lacing:Front Lacing Pattern:2-crossRear Lacing Pattern:2-crossSpoke Type:Sapim CX-RaySpoke Size:252 mm/254 mm (front l/r), 252 mm/248 mm (rear l/r)Spoke Material:stainless steelNipple Type:Sapim Secure-LocNipple Material:aluminiumApproved For:Weight Limit:115 kg total weightAir Pressure (max.):5 barsTyre Type:Only approved for tubeless and tubeless-ready tyres. Please make sure that the tyre manufacturer’s approval is given for hookless rims.Features:versatile aero wheelset for modern road bikesTSE technology for more efficiency and reduced rolling resistancehookless rims with 23 mm jaw width for tubeless useoptimized rim bed facilitates tyre installationsmooth transition between rim and tyre allows more speedeven material distribution saves weightsymmetrical rim treadGerman-designed hubs with better sealing for more durabilityfast response with 66 contact pointsaluminium axlescarbon finish with glued decalsfront can be converted to 9 x 100 mm quick release or 15 x 100 mm thru-axle (end caps sold separately)rear can be converted to 10 x 135 mm quick release (end caps sold separately)Technology:TSE™
Total System Efficiency is Zipp’s approach to speed on different surfaces and under varying riding conditions. TSE aims to eliminate everything that works against speed: Wind resistance, inertia, rolling resistance and vibration.

Firecrest®
Through the pioneering use of software to analyse numerical fluid mechanics and the power of a supercomputer, Zipp is able to understand exactly what makes wheels go fast. Zipp then tests the most promising rim shapes in the wind tunnel and on the road. This process led to the creation of Firecrest rim technology, which allows the wheel’s airflow and centre of gravity to be controlled more effectively, resulting in better aerodynamics, better handling in crosswinds and an overall better cycling experience.

ABLC SawTooth™
This patented rim shape achieves what conventional aero wheels cannot: it simultaneously reduces aerodynamic drag and lateral wind forces, providing the ultimate AeroBalance™. In addition, the ABLC recesses ensure improved air flow. The result is lower aerodynamic drag and reduced lateral wind forces at any angle of attack. This is important because the steeper the wind angle, the larger the influence on the handling of the bike.
Colour Info:black:
Rims: black (carbon) with standard decalsHubs: blackSpokes: blackNipples: blackModels:28″ set (front 12×100 + rear 12×142) Shimano:
Freehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:The assembly of 8-/9-/10-speed cassettes on a Shimano Road Rotor requires a 1.85 mm spacer.Manufacturer Numbers:00.1918.620.000 (front) + 00.1918.621.000 (rear)
28″ set (front 12×100 + rear 12×142) SRAM XDR:
Freehub:SRAM XDRGearing:11-/12-speedNote:A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub body.Manufacturer Numbers:00.1918.620.000 (front) + 00.1918.621.001 (rear)
Only available to European & Russian customers.

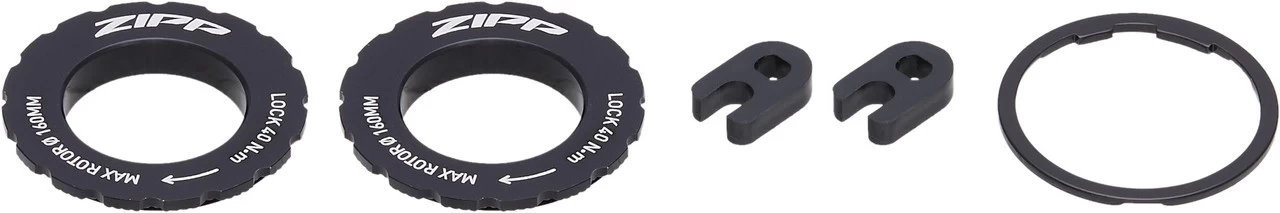

Contents:1 x Zipp 404 Firecrest Carbon Clincher Tubeless Disc Centre Lock wheelset (front and rear)2 x Center Lock lockrings
