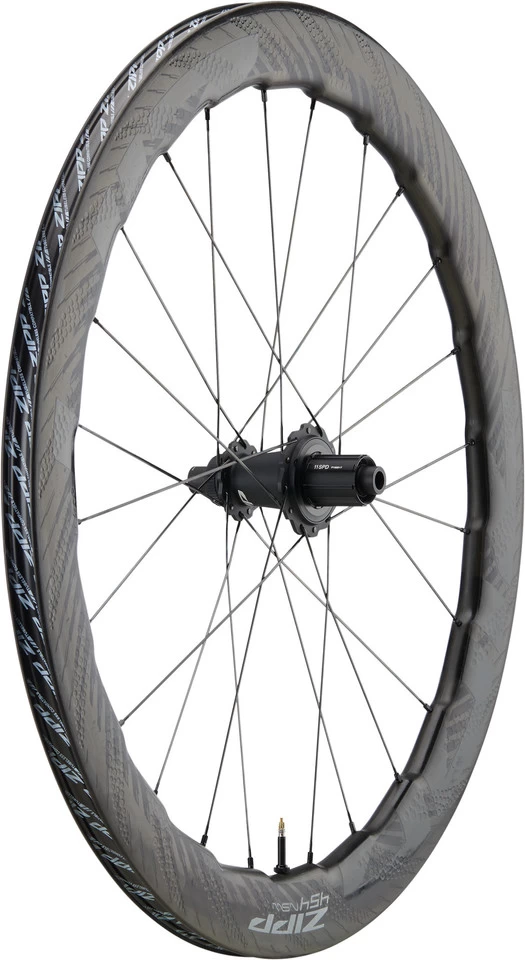

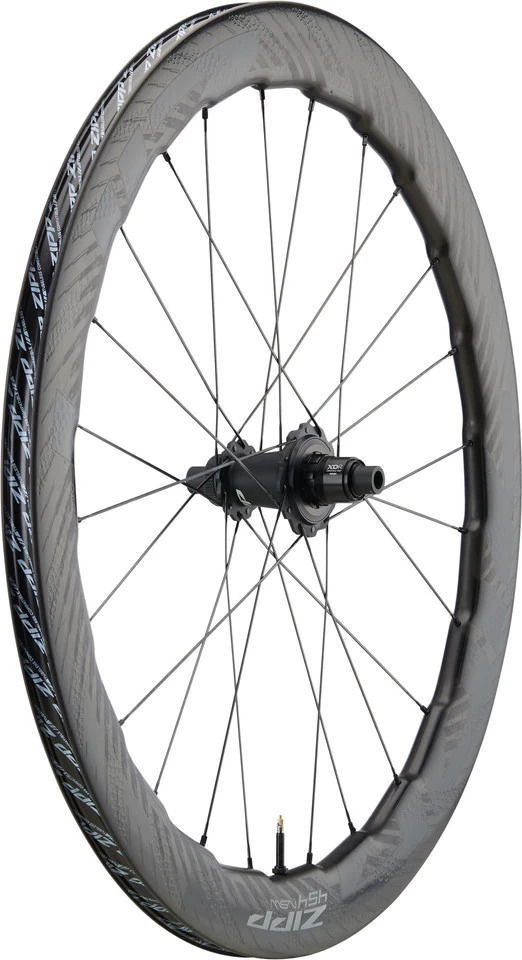

The Zipp 454 NSW Carbon Tubeless Disc Center Lock wheel follows natural models to optimise aerodynamics and comes with tubeless and disc brake compatible rims so you can benefit from maximum braking power and reduced rolling resistance.

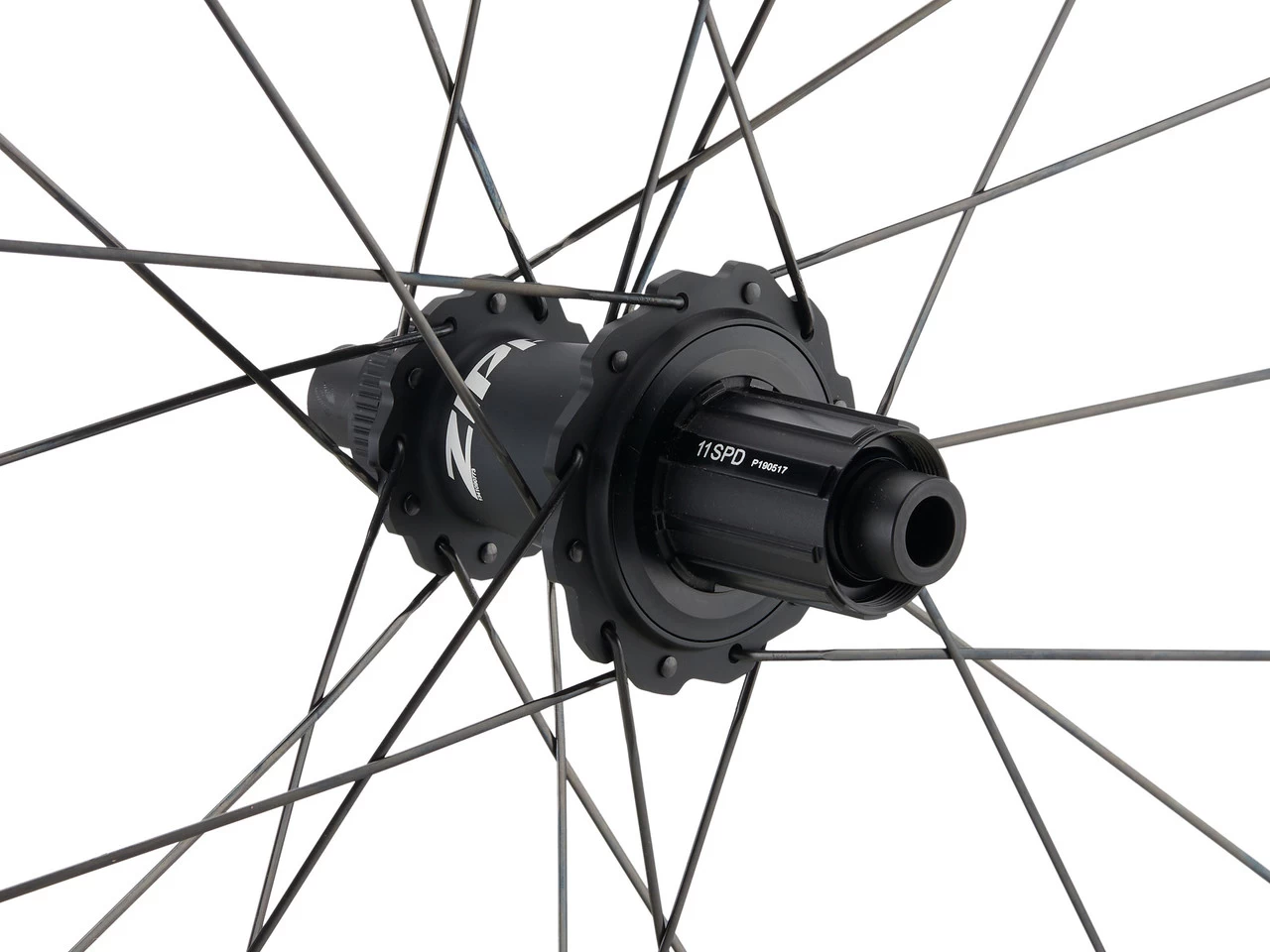

Specifications:Application:Road, Triathlon & Time TrialWheel Size:28″Tyre Type:clincher tyreNumber of Spokes:24Brake Type:Center Lock DiscTubeless System:Tubeless ReadyTechnical Information – Rim:Type:Zipp NSWRim Flange:with hookDimensions (ETRTO):19-622Inner Width:19 mmOuter Width:28 mmDepth:53 mm/58 mm (depending on section)Valve Hole Diameter:SV/Presta (6.5 mm)Rim Material:CarbonTechnical Information – Front Hub:Type:Zipp Cognition DiscOver Locknut Dimension:12 x 100 mm thru-axleBearings:cartridge (stainless steel)Body Material:AluminiumTechnical Information – Rear Hub:Type:Zipp Cognition DiscOver Locknut Dimension:12 x 142 mm thru-axleBearings:cartridge (stainless steel)Body Material:AluminiumFreehub Body Material:AluminiumFreehub Body:Axial Clutch™Technical Information – Lacing:Front Lacing Pattern:2-crossRear Lacing Pattern:2-crossSpoke Type:Sapim CX-RaySpoke Size:252 mm/254 mm (front l/r), 254 mm/248 mm (rear l/r)Spoke Material:stainless steelNipple Type:Sapim Secure-LocNipple Material:AluminiumApproved For:Weight Limit:115 kg total weightAir Pressure (max.):8.6 barsFeatures:new Zipp graphics create visual presence and embody speed, they are applied using ImPress™ direct printing technology19 mm inner width and tubeless compatibility, optimised for wider tyres with lower tyre pressureCognition DB hub set runs efficiently whether you pedal or coastfreehub generates only half as much mechanical resistance as conventional 3-pawl hubs thanks to Axial Clutch Technologybionics (biomimicry): formed according to the examples from nature (e.g. whales, sharks)SawTooth™ rim with Hyperfoil™ elements and HexFin™ ABLC recesses for maximum aero and crosswind stability with a wave-shaped rim depth of 53/58mmaluminium axlesfront can be optionally converted to 9 x 100 mm quick release or 15 x 100 mm thru-axle (end caps available separately)rear can be converted to 10 x 135 mm quick release or 12 x 135 mm thru-axle (end caps sold separately)Technology:NSW
NSW stands for ” Nest Speed Weaponry” . ‘The Nest’ is the nickname the Zipp engineers have given to the windowless high-security research laboratory in a corner of the Zipp factory. This site, or the ground-breaking ideas and designs that emerged from it, became the namesake for an entire series of wheels. The Zipp NSW series is a science, philosophy and mission to develop the fastest, most stable and highest performing wheel components of all times.
ImPress™
The Impress graphics not only provide valuable weight savings, but also enable unique and permanent application of the four letters most feared by the competition in bicycle racing: Z-I-P-P.
SawTooth™ ABLC HexFin™

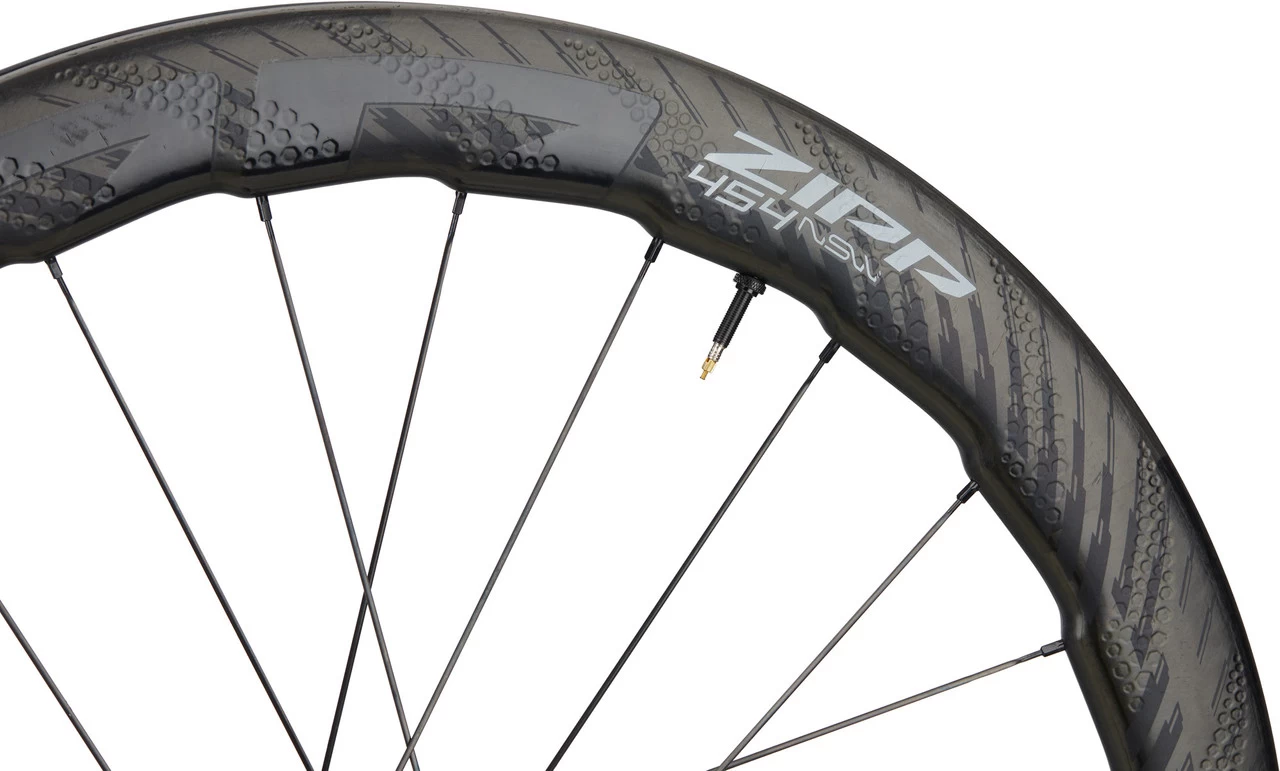

This patented rim shape achieves what conventional aero wheels cannot: it simultaneously reduces aerodynamic drag and lateral wind forces, providing the ultimate AeroBalance™. SawTooth makes this possible through a series of hump-shaped Hyperfoil points along the inner diameter of the rim. Together with the HexFin ABLC dimples (hexagonal dimples), these provide improved airflow. The result is the most powerful Zipp wheelset of all times with lower aerodynamic drag and reduced lateral wind forces at any angle of attack. This is important because the steeper the wind angle, the larger the influence on the handling of the bike.
Colour Index:black:
Rim: black (carbon) with standard decalsHub: matt black-glossy blackSpokes: blackNipples: blackModels:28″ front 12×100:
Manufacturer Number:00.1918.511.000
28″ rear 12×142 Shimano:
Freehub:Shimano RoadGearing:8-/9-/10-/11-speedNote:The assembly of 8-/9-/10-speed cassettes on a Shimano Road Rotor requires a 1.85 mm spacer.Manufacturer Number:00.1918.512.000
28″ rear 12×142 SRAM XDR:

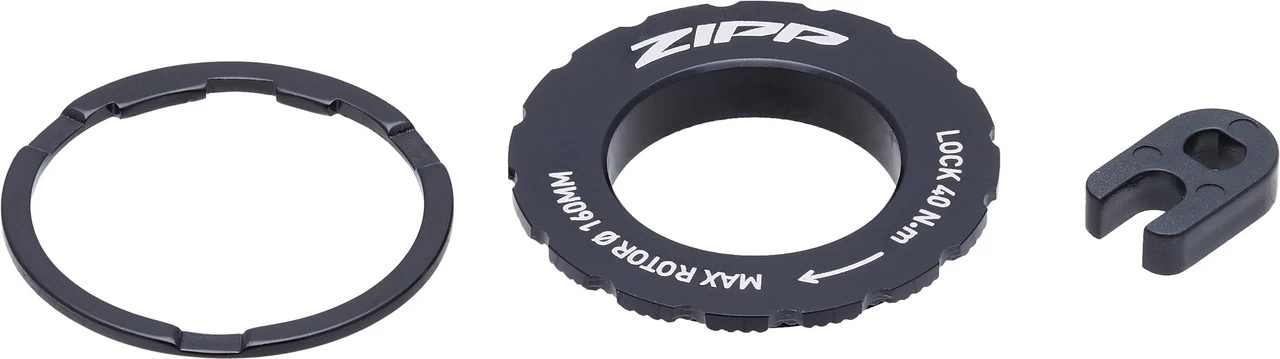

Freehub:SRAM XDRGearing:11-/12-speedNote:A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub body.Manufacturer Number:00.1918.512.001Contents:1 x Zipp 454 NSW Carbon Clincher Tubeless Center Lock Disc wheel (front or rear wheel)1 x Center Lock lockring1 x cassette spacer (Shimano rear only)1 x valve core removers1 x tubeless rim tape (pre-installed)1 x tubeless valves (pre-installed)
