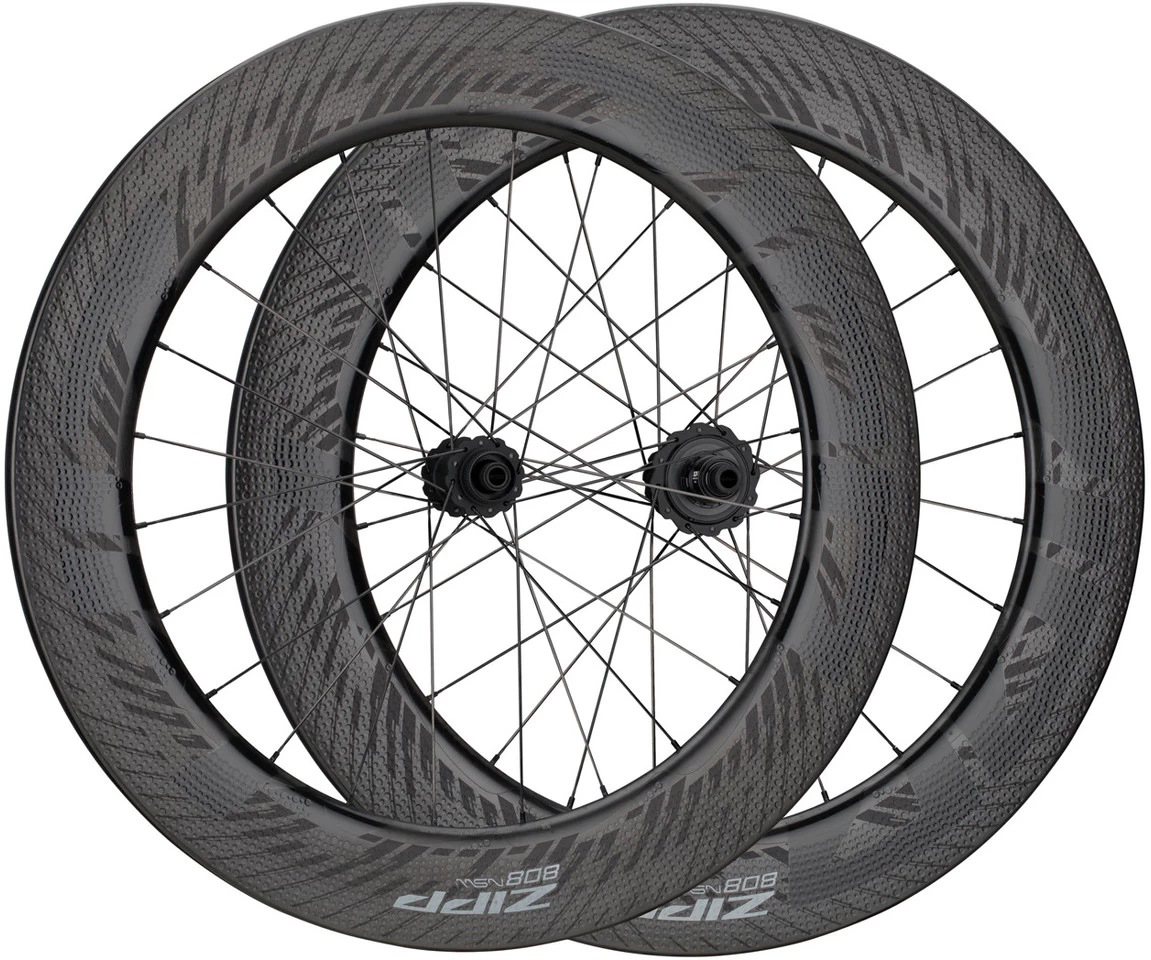

ZIPP 808 NSW Carbon Tubeless Center Lock Disc Wheelset

The Zipp 808 NSW Carbon Tubeless Center Lock Disc wheelset scores with sophisticated aerodynamics and crosswind stability, based on an 82 mm high rim with ABLC SawTooth™ design, and can be ridden without a tube, resulting in higher puncture protection, improved grip and less rolling resistance.
Specifications:Application:Road, Triathlon & Time TrialWheel Size:28″Tyre Type:clincher tyreNumber of Spokes:24Brake Type:Center Lock DiscTubeless System:Tubeless ReadyTechnical Information – Rim:Type:Zipp NSWRim Flange:with hookDimensions (ETRTO):19-622Inner Width:19 mmOuter Width:27 mmDepth:82 mmValve Hole Diameter:SV/Presta (6.5 mm)Rim Material:CarbonTechnical Information – Front Hub:Type:Zipp Cognition DiscOver Locknut Dimension:12 x 100 mm thru-axleBearings:cartridge (stainless steel)Body Material:aluminiumTechnical Information – Rear Hub:Type:Zipp Cognition DiscOver Locknut Dimension:12 x 142 mm thru-axleBearings:cartridge (stainless steel)Body Material:aluminiumFreehub Body Material:aluminiumFreehub Body:Axial Clutch™Technical Information – Lacing:Front Lacing Pattern:2-crossRear Lacing Pattern:2-crossSpoke Type:Sapim CX-RaySpoke Size:230 mm/232 mm (front l/r), 232 mm/226 mm (rear l/r)Spoke Material:stainless steelNipple Type:Sapim Secure-LocNipple Material:aluminiumApproved For:Weight Limit:115 kg total weightAir Pressure (max.):8.6 barsRecommended Tyre Width:25 mmFeatures:new Zipp graphics create visual presence and embody speed, they are applied using ImPress™ direct printing technology82 mm aero rim profile, tubeless compatible, ready for higher speed and better cornering, handling and comfortCognition DB hub set runs efficiently whether you pedal or coastfreehub generates only half as much mechanical resistance as conventional 3-pawl hubs thanks to Axial Clutch TechnologyABLC SawTooth Dimple Design helps to control the airflow around the rim and contributes to speed and stabilityaluminium axlesfront can be optionally converted to 9 x 100 mm quick release or 15 x 100 mm thru-axle (end caps available separately)rear can be converted to 10 x 135 mm quick release or 12 x 135 mm thru-axle (end caps sold separately)Technology:NSW
NSW stands for ” Nest Speed Weaponry” . ‘The Nest’ is the nickname the Zipp engineers have given to the windowless high-security research laboratory in a corner of the Zipp factory. This site, or the ground-breaking ideas and designs that emerged from it, became the namesake for an entire series of wheels. The Zipp NSW series is a science, philosophy and mission to develop the fastest, most stable and highest performing wheel components of all times.

ImPress™
The Impress graphics not only provide valuable weight savings, but also enable unique and permanent application of the four letters most feared by the competition in bicycle racing: Z-I-P-P.

ABLC SawTooth™

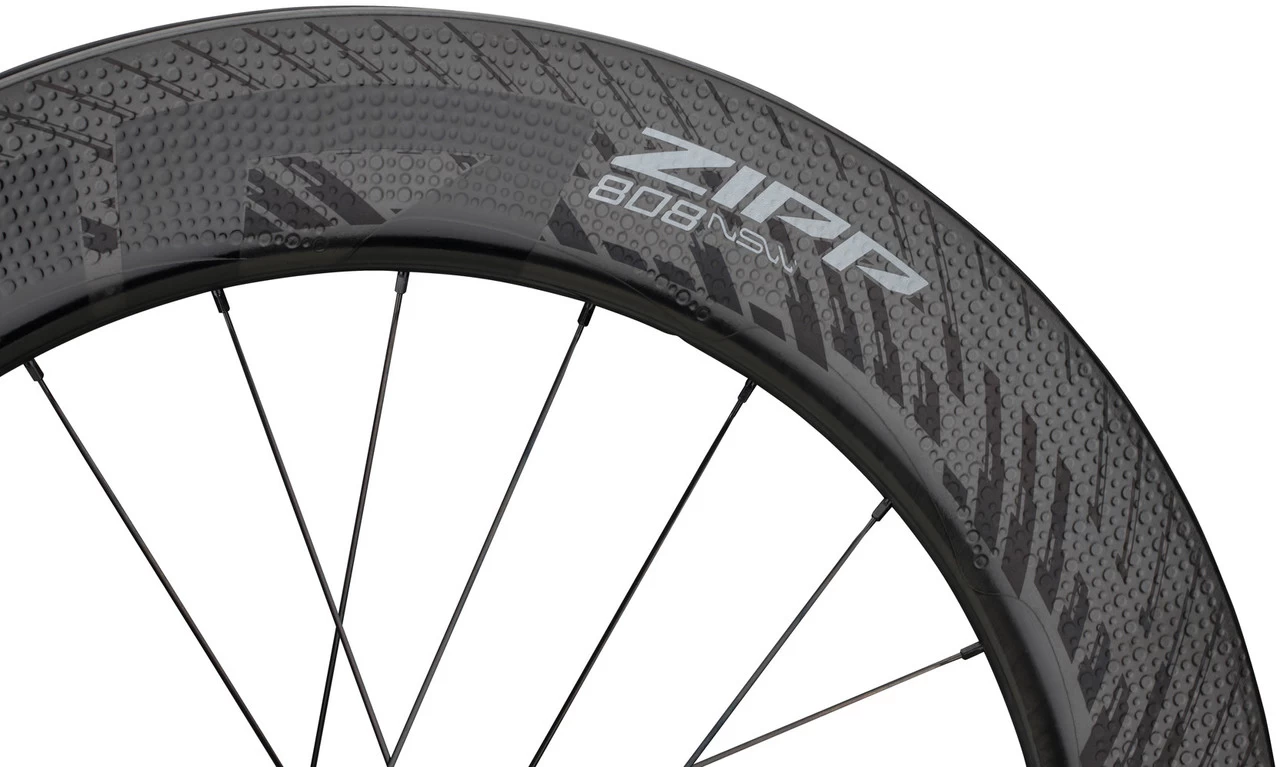

This patented rim shape achieves what conventional aero wheels cannot: it simultaneously reduces aerodynamic drag and lateral wind forces, providing the ultimate AeroBalance™. In addition, the ABLC recesses ensure improved air flow. The result is lower aerodynamic drag and reduced lateral wind forces at any angle of attack. This is important because the steeper the wind angle, the larger the influence on the handling of the bike.
Colour Index:matt black-gloss black:
Rims: black (carbon) with standard decalsHubs: matt black-glossy blackSpokes: blackNipples: blackModels:28″ set (front 12×100 + rear 12×142) Shimano:
Freehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.Manufacturer Number:00.1918.533.000 (front) + 00.1918.534.000 (rear)
28″ set (front 12×100 + rear 12×142) SRAM XDR:

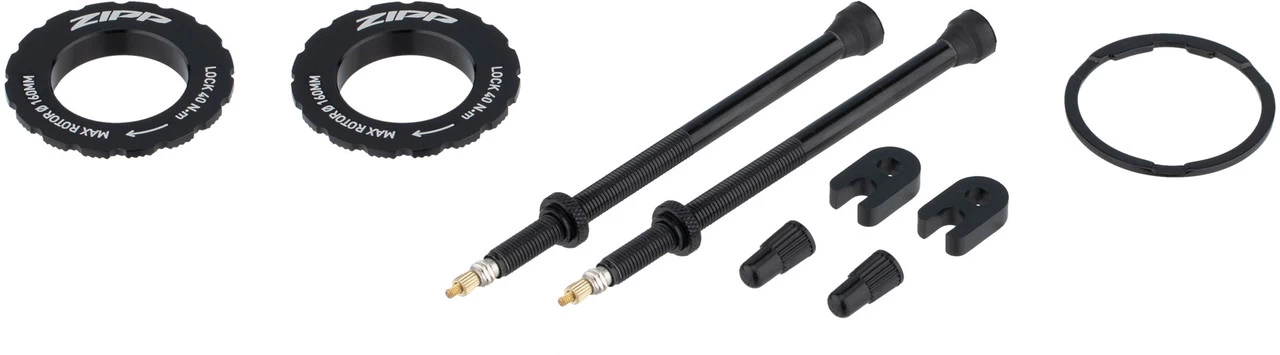

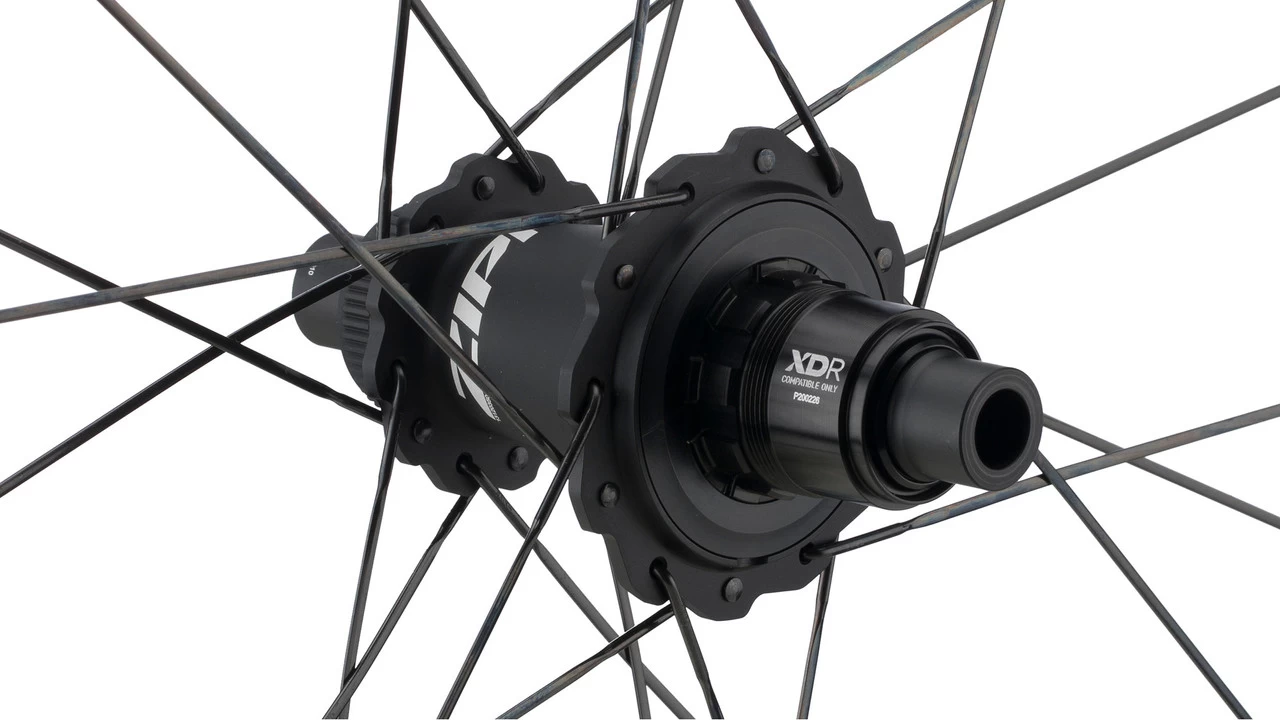

Freehub:SRAM XDRGearing:11-/12-speedNote:A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub.Manufacturer Number:00.1918.533.000 (front) + 00.1918.534.001 (rear)Contents:1 x Zipp 808 NSW Carbon Clincher Tubeless Disc Centre Lock wheelset (front and rear)2 x Center Lock lockrings1 x cassette spacer (Shimano rear only)2 x valve core removers2 x tubeless rim tape (pre-installed)2 x tubeless valves (pre-installed)
